ES2A THRU ES2K
COMPLIANT
Surface Mount Super Fast Recovery Rectifier
Features
● Low profile package
● Ideal for automated placement
● Glass passivated chip junction
● High forward surge capability
● Super Fast reverse recovery time
● Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
Typical Applications
For use in high frequency rectification of power supplies,
inverters, converters, and freewheeling diodes for consumer
and telecommunication.
Mechanical Data

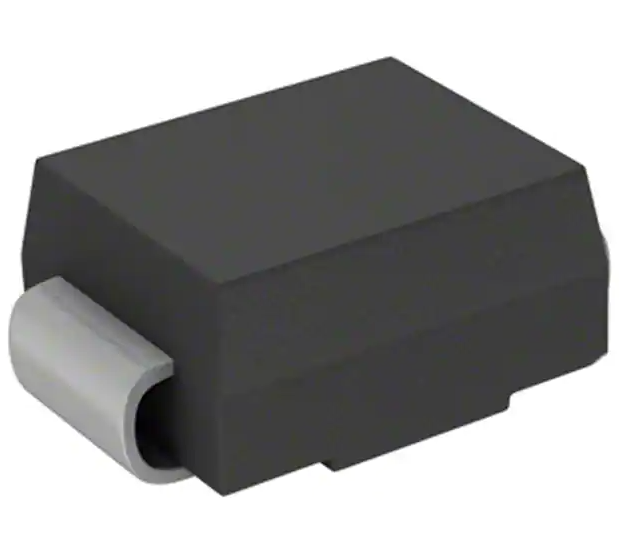

● Package: DO-214AA (SMB)
Molding compound meets UL 94 V-0 flammability
rating, RoHS-compliant, halogen-free
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Polarity: Cathode line denotes the cathode end
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Device marking code
ES2A
ES2B
ES2C
ES2D
ES2F
ES2G
ES2H
ES2J
ES2K
ES2A
ES2B
ES2C
ES2D
ES2F
ES2G
ES2H
ES2J
ES2K
Maximum Repetitive Peak Reverse Voltage
VRRM
V
50
100
150
200
300
400
500
600
800
Maximum RMS Voltage
VRMS
V
35
70
105
140
210
280
350
420
560
Maximum DC blocking Voltage
VDC
V
50
100
150
200
300
400
500
600
800
IO
A
IFSM
A
Average rectified output current
@60Hz sine wave, resistance load, TL (Fig.1)
Forward Surge Current (Non-repetitive)
@60Hz Half-sine wave,1 cycle, Tj=25℃
Forward Surge Current (Non-repetitive)
@1ms, square wave, 1 cycle, Tj=25℃
2.0
50
100
Current squared time
@1ms≤t8.3≤ms Tj=25℃,Rating of per diode
Typical junction capacitance
@Measured at 1MHz and Applied Reverse
Voltage of 4.0 V.D.C
10.375
I2t
A2s
Cj
pF
Storage temperature
Tstg
℃
-55 ~ +150
Junction temperature
Tj
℃
-55 ~ +150
31
17
12
12
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL UNIT
TEST
CONDITIONS
ES2A
ES2B
ES2C
ES2D
ES2F
Maximum instantaneous
forward voltage drop per diode
VF
V
IFM=2.0A
Maximum reverse recovery time
trr
ns
IF=0.5A,IR=1.0A,
Irr=0.25A
35
Maximum DC reverse current at
rated DC blocking voltage per
diode
IR
μA
Tj =25℃
5.0
Tj =125℃
100
0.95
ES2G
1.3
ES2H
ES2J
1.7
ES2K
1.85
1/5
S-S025
Rev. 2.7, 07-Jan-21
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
ES2A THRU ES2K
■Thermal Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
ES2A
ES2B
ES2C
ES2D
RθJ-A(1)
ES2G
ES2H
ES2J
ES2K
60
RθJ-L(1)
Typical Thermal Resistance
ES2F
22
℃/W
RθJ-C(1)
16
Note:
(1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.3" x 0.3" (8.0 mm x 8.0 mm) copper pad areas
■ Characteristics (Typical)
FIG1:Io‐TL Curve
FIG2:Surge Forward Current Capability
50
2.0
Peak Forward Surge Current(A)
Average Forward Output Current(A)
2.4
1.6
1.2
0.8
0.4
0
40
60
80
8.3ms Single Half Sine Wave
30
20
10
Resistive or Inductive Load
P.C.B. Mounted on 0.3"×0.3"
(8.0mm×8.0mm)Copper Pad Areas
20
40
100
120
140
160
0
Lead Temperature(℃)
1
FIG3: Typical Forward Voltage
ES2A~ES2D
Instantaneous Reverse Current(uA)
Instantaneous Forward Current(A)
100
2
1
0.5
ES2F~ES2G
ES2H-ES2J
ES2K
0.1
0.05
0.02
0.01
100
FIG4:Typical Reverse Characteristics
6
4
10
Number of Cycles
0.4
0.8
1.2
1.6
2.0
2.4
Tj=125 ℃
10
1.0
0.1
0.01
Instantaneous Forward Voltage(V)
Tj=25 ℃
0
20
40
60
80
Percent of Rated Peak Reverse Voltage(%)
100
2/5
S-S025
Rev. 2.7, 07-Jan-21
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
ES2A THRU ES2K
FIG.5: Diagram of circuit and Testing wave form of reverse recovery time
10 Ω
NONINDUCTIVE
50 Ω
NONINDUCTIVE
trr
+0.5A
(-)
DUT
(+)
0
PULSE
GENERATOR
(NOTE2)
(-)
OSCILLOSCOPE
(NOTE1)
1Ω
NONINDUCTIVE
-0.25A
(+)
-1.0A
NOTES:
1.Rise Time=7ns max .Inpot Impedance=1M Ω 22pf
2.Rise Time=10ns max.Sourse Impedance=50 Ω
1cm
SET TIME BASE FOR
5/10ns/cm
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY
MODE
ES2A-ES2K
F1
Approximate 0.096
3000
6000
48000
13” reel
ES2A-ES2K
F2
Approximate 0.096
750
6000
24000
7” reel
ES2A-ES2K
F3
Approximate 0.096
500
4000
16000
7” reel
■ Outline Dimensions
DO-214AA(SMB)
A
DO-214AA(SMB)
B
C
D
F
G
H
Dim
Min
Max
A
1.85
2.15
B
3.30
3.94
C
4.05
4.75
D
1.99
2.61
E
5.21
5.59
F
0.90
1.41
G
0.10
0.20
H
0.15
0.31
E
Dimensions in millimeters
3/5
S-S025
Rev. 2.7, 07-Jan-21
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
ES2A THRU ES2K
■ Suggested pad layout
DO-214AA(SMB)
P2
Q2
Q1
P3
Dim
Millimeters
P1
6.8
P2
4.3
P3
1.8
Q1
2.5
Q2
2.3
P1
Dimensions in millimeters
4/5
S-S025
Rev. 2.7, 07-Jan-21
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
ES2A THRU ES2K
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
5/5
S-S025
Rev. 2.7, 07-Jan-21
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
