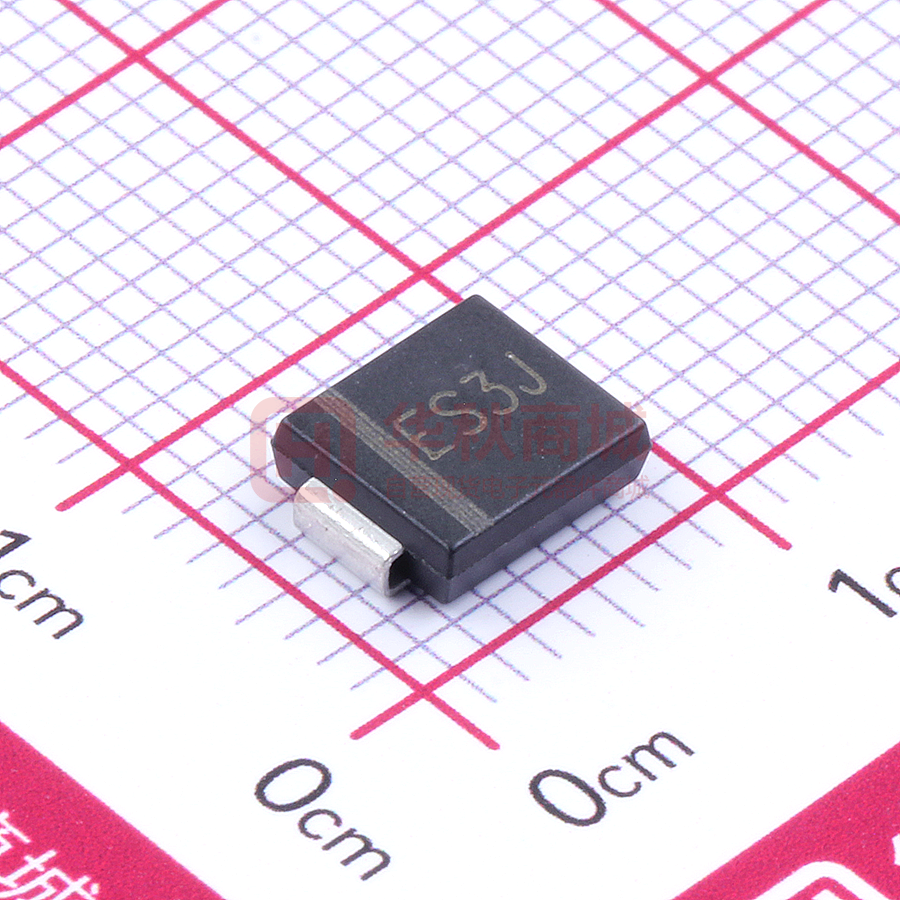

ES3J

RoHS ES3A THRU ES3K  COMPLIANT   Surface Mount Super Fast Recovery Rectifier Features ● Ultrafast reverse recovery time ● Low leakage current ● Low switching losses, high efficiency ● High forward surge capability ● Solder dip 260 °C max. 10 s, per JESD 22-B106 Typical Applications For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication. Mechanical Data ● Package: DO-214AB (SMC) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Color band denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified) PARAMETER SYMBOL UNIT Device marking code ES3A ES3B ES3C ES3D ES3F ES3G ES3H ES3J ES3K ES3A ES3B ES3C ES3D ES3F ES3G ES3H ES3J ES3K 50 100 150 200 300 400 500 600 800 VRRM V Average Rectified Output Current @60Hz sine wave, Resistance load, TL (FIG.1) IO A 3.0 Forward Surge Current (Non-repetitive) @60Hz Half-sine wave,1 cycle, Ta=25℃ IFSM A 100 Storage Temperature Tstg ℃ -55 ~+150 Junction Temperature Tj ℃ -55 ~+150 Repetitive Peak Reverse Voltage ■Electrical Characteristics (Ta=25℃ Unless otherwise specified) PARAMETER SYMBOL UNIT TEST CONDITIONS ES3A ES3B ES3C ES3D 0.95 ES3F ES3G ES3H Maximum instantaneous forward voltage drop per diode VF V IFM=3.0A Maximum reverse recovery time TRR ns IF=0.5A,IR=1.0A, Irr=0.25A 35 Ta=25℃ 5 IR μA Ta=125℃ 100 Maximum DC reverse current at rated DC blocking voltage per diode Typical junction capacitance Cj pF Measured at 1MHz and Applied Reverse Voltage of 4.0 V.D.C. 60 ES3J ES3K 1.3 1.7 1.85 37 23 34 1/4 S-S357 Rev. 2.7, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com ES3A THRU ES3K    ■Thermal Characteristics (Ta=25℃ Unless otherwise specified) PARAMETER Thermal Resistance SYMBOL junction to ambient RθJ-A junction to lead RθJ-L UNIT ES3A ES3B ES3C ES3D ES3F ES3G ES3H ES3J ES3K 501) ℃/W 151) Note (1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.6" x 0.6" (16 mm x 16 mm) copper pad areas ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE ES3A~ES3K F1 Approximate 0.248 3000 6000 42000 13” reel ■ Characteristics (Typical) FIG1：Io‐TL Curve FIG2：Surge Forward Current Capability 120 3.0 Peak Forward Surge Current(A) Average Forward Output Current(A) 3.5 2.5 2.0 1.5 1.0 Resistive or Inductive Load P.C.B. Mounted on 0.6"×0.6" (16mm×16mm)Copper Pad Areas 0.5 0 0 25 50 100 8.3ms Single Half Sine Wave 80 60 40 20 75 100 125 0 150 1 10 FIG3：Typial Forward Voltage FIG4:Typical Reverse Characteristics 100 Instantaneous Reverse Current(uA) 100 Instantaneous Forward Current(A) 100 Number of Cycles Lead Temperature(℃) ES3A-3D 10 3.0 ES3K 1.0 ES3H-3J ES3F-3G 0.1 0.01 0.5 0.7 0.9 1.1 1.3 1.5 1.7 1.9 Ta=125 ℃ 10 1.0 0.01 0 2.1 Ta=25 ℃ 0.1 20 40 60 80 100 Percent of Rated Peak Reverse Voltage(%) Instantaneous Forward Voltage(V) 2/4 S-S357 Rev. 2.7, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com ES3A THRU ES3K    FIG.5: Diagram of circuit and Testing wave form of reverse recovery time 10 Ω NONINDUCTIVE 50 Ω NONINDUCTIVE trr +0.5A (-) (+) DUT 0 PULSE GENERATOR (NOTE2) (-) 1Ω NONINDUCTIV OSCILLOSCOPE (NOTE1) -0.25A (+) NOTES: 1.Rise Time=7ns max .Inpot Impedance=1M Ω 22pf 2.Rise Time=10ns max.Sourse Impedance=50 Ω -1.0A 1cm SET TIME BASE FOR 5/10ns/cm ■ Outline Dimensions DO-214AB(SMC) DO-214AB (SMC) Dim Min Max A 6.60 7.11 B 2.85 3.27 C 5.59 6.22 D 7.75 8.13 E 1.99 2.61 F 0.15 0.31 G 0.76 1.52 H 0.10 0.20 Dimensions in millimeters ■ Suggested pad layout DO-214AB (SMC) P2 Dim Q1 Q2 Min P1 9.9 P2 3.84 Q1  3.03 Q2  3.82 P1 Dimensions in millimeters 3/4 S-S357 Rev. 2.7, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com ES3A THRU ES3K    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S357 Rev. 2.7, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
