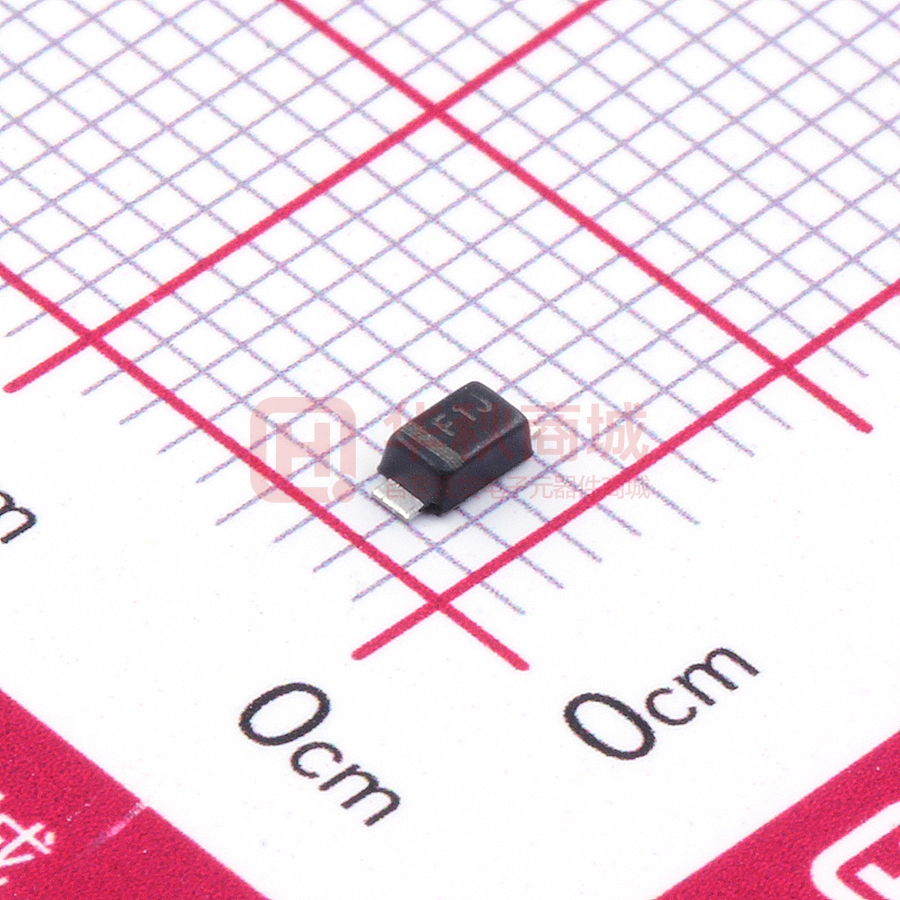

F1J

RoHS F1A THRU F1M  COMPLIANT   Surface Mount Fast Recovery Rectifier Features ● Low profile package ● Ideal for automated placement ● Glass passivated chip junction ● Fast switching for fast recovery ● High forward surge capability ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in fast switching rectification of power supply, inverters, converters, and freewheeling diodes for consumer, and telecommunication. Mechanical Date ● Package: SOD-123FL Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end 　 ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code F1A F1B F1D F1G F1J F1K F1M F1A F1B F1D F1G F1J F1K F1M 50 100 200 400 600 800 1000 VRRM V IO A 1.0 Surge(non-repetitive)forward current @ 60Hz half-sine wave,1 cycle, Tj=25℃ IFSM A 30 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ -55 ~+150 Repetitive peak reverse voltage Average rectified output current @60Hz sine wave, Resistance load, TL (FIG.1) ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） SYMBOL UNIT TEST CONDITIONS Maximum instantaneous forward voltage drop per diode VF V IFM=1.0A Maximum reverse recovery time trr ns IF=0.5A,IR=1.0A, IRR=0.25A IRRM μA PARAMETER Maximum DC reverse current at rated DC blocking voltage per diode F1A F1B F1D F1G F1J F1K F1M 1.3 150 250 Ta=25℃ 5 Ta=125℃ 100 500 1/5 S-S020 Rev. 2.3, 20-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com F1A THRU F1M    ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL F1A UNIT F1B F1D F1G RθJ-A F1J F1K F1M 681) ℃/W Typical Thermal resistance RθJ-L 201) Note： （1）Thermal resistance between junction and ambient and between junction and lead mounted on P.C.B with 3mm*3mm copper pad areas. ■ Characteristics (Typical) FIG.2: Forward Surge Current Capability FIG.1: Io-TL Curve 30 Peak Forward Surge Current (A) Average Forward Output Current (A) 1.0 0.8 0.6 0.4 24 8.3ms Single Half Sine Wave JEDEC Method 18 12 6 0.2 0 0 1 0 50 100 2 150 4 6 8 10 20 40 60 80 100 Number of Cycles Lead Temperature (℃) FIG.3: Typical Forward Voltage FIG.4: Typical Reverse Characteristics 1000 Instantaneous Reverse Current (uA) Instantaneous Forward Current (A) 100 10 1.0 0.1 0.01 0.6 0.8 1.0 1.2 1.4 1.6 1.8 100 Ta=125℃ 10 1.0 Ta=25℃ 0.1 0.01 2.0 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (V) 2/5 S-S020 Rev. 2.3, 20-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com F1A THRU F1M    FIG.5: Diagram of circuit and Testing wave form of reverse recovery time 10 Ω NONINDUCTIVE 50 Ω NONINDUCTIVE trr +0.5A (-) (+) DUT 0 PULSE GENERATOR (NOTE2) (-) 1Ω NONINDUCTIVE OSCILLOSCOPE (NOTE1) -0.25A (+) -1.0A NOTES: 1.Rise Time=7ns max .Inpot Impedance=1M Ω 22pf 2.Rise Time=10ns max.Sourse Impedance=50 Ω 1cm SET TIME BASE FOR 5/10ns/cm ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE F1A THRU F1M  F1 Approximate 0.0169 3000 15000 120000 7” reel F1A THRU F1M  F2 Approximate 0.0169 2500 12500 100000 7” reel F1A THRU F1M  F3 Approximate 0.0169 10000 30000 210000 13” reel F1A THRU F1M  F4 Approximate 0.0169 3000 27000 108000 7” reel F1A THRU F1M  F5 Approximate 0.0169 10000 20000 160000 13” reel F1A THRU F1M  F6 Approximate 0.0169 3000 12000 60000 7” reel ■ Outline Dimensions SOD-123FL SOD-123FL A B D C E F H Dim Min Max A 1.60 1.90 B 0.90 1.10 C 2.55 2.85 D 3.60 3.90 E 1.00 1.20 F 0.40 0.90 G 0.10 0.25 H 0.02 0.05 G Dimensions in millimeters 3/5 S-S020 Rev. 2.3, 20-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com F1A THRU F1M    ■ Suggested pad layout SOD-123FL P2 Q1 Q2 Dim Millimeters P1 3.90 P2 1.90 Q1  1.00 Q2  1.50 P1 Dimensions in millimeters 4/5 S-S020 Rev. 2.3, 20-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com F1A THRU F1M    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S020 Rev. 2.3, 20-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
