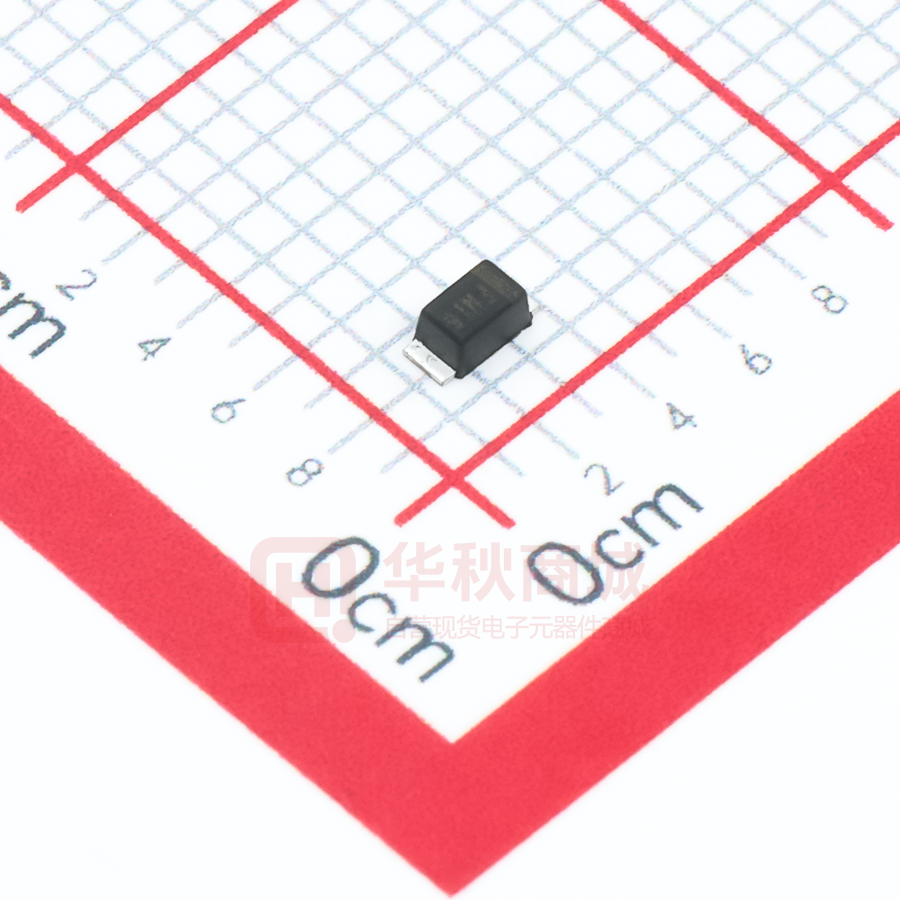

FM16

RoHS FM16  COMPLIANT   Surface Mount Schottky Rectifier Features ●Low profile package ● Ideal for automated placement ● Guardring for overvoltage protection ● Low power losses, high efficiency ● High forward surge capability ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. Mechanical Date ● Package: SOD-323FL Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end 　 ■Maximum Ratings (Tj=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT FM16 FM16 Device marking code Repetitive peak reverse voltage Average rectified output current @60Hz sine wave, Resistance load, TC (FIG.1) VRRM V 60 IO A 1.0 Surge(non-repetitive)forward current @ 60Hz half-sine wave,1 cycle, Tj=25℃ 25 IFSM A Forward Surge Current (Non-repetitive) @1ms, square wave, 1 cycle, Tj=25℃ 50 Current squared time @1ms≤t≤8.3ms Tj =25℃，Rating of per diode I2t A2S 2.60 Typical junction capacitance @Measured at 1MHz and Applied Reverse Voltage of 4.0 V.D.C Cj pF 40 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ -55 ~+150 1/5 S-S4165 Rev.1.1,27-Jul-23 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com FM16    ■Electrical Characteristics（Tj=25℃ Unless otherwise specified） PARAMETER SYMBOL Peak Forward Voltage UNIT VFM Maximum DC reverse current at rated DC blocking voltage per diode V IRRM1 mA IRRM2 Min Typ Max IFM=1.0A Tj=25℃ - 0.60 0.70 IFM=1.0A Tj=125℃ - - 0.65 VRM=VRRM Tj=25℃ - - 0.20 VRM=VRRM Tj=125℃ - - 30 TEST CONDITIONS Note1:Pulse test:300uS pulse widh,1% duty cycle Note2:Pulse test:pulse widh 40mS ■Thermal Characteristics （Tj=25℃ Unless otherwise specified） PARAMETER SYMBOL FM16 UNIT RθJ-A Thermal Resistance 901) ℃/W RθJ-c 461) Note： (1) Thermal resistance between junction and ambient and between junction and lead mounted on P.C.B with 3mm*3mm copper pad areas. ■ Characteristics(Typical) FIG2：Surge Forward Current Capability 30 1.0 25 Peak Forward Surge Current(A) Average Forward Output（A） FIG1:Io-T C Curve 1.2 0.8 0.6 0.4 0.2 0 8.3ms Single Half Sine Wave 20 15 10 5 0 50 100 0 150 Case Temperature （℃） 1 10 Number of Cycles 100 2/5 S-S4165 Rev.1.1,27-Jul-23 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com FM16    FIG.3: Typical Forward Characteristics FIG4：Typical Reverse Characteristics 100 Instantaneous Reverse Current(mA) Instantaneous Forward Current(A) 100 10 10 Tj=125℃ 1.0 Tj=25℃ 1.0 Tj=125℃ 0.1 0.1 0.01 Tj=25℃ 0.001 0.01 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage(%) Instantaneous Forward Voltage (V) ■ Outline Dimensions SOD-323FL SOD-323FL A B C D E Dim Min Max A 1.05 1.45 B 0.90 1.15 C 2.30 2.70 D 0.80 1.20 E 0.25 0.70 F 0.05 0.25 F Dimensions in millimeters 3/5 S-S4165 Rev.1.1,27-Jul-23 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com FM16    ■ Suggested pad layout SOD-323FL P1 Q1 Dim Millimeters P1 1.30 Q1  1.00 Q2  1.50 Q2 Dimensions in millimeters 4/5 S-S4165 Rev.1.1,27-Jul-23 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com FM16    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S4165 Rev.1.1,27-Jul-23 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
