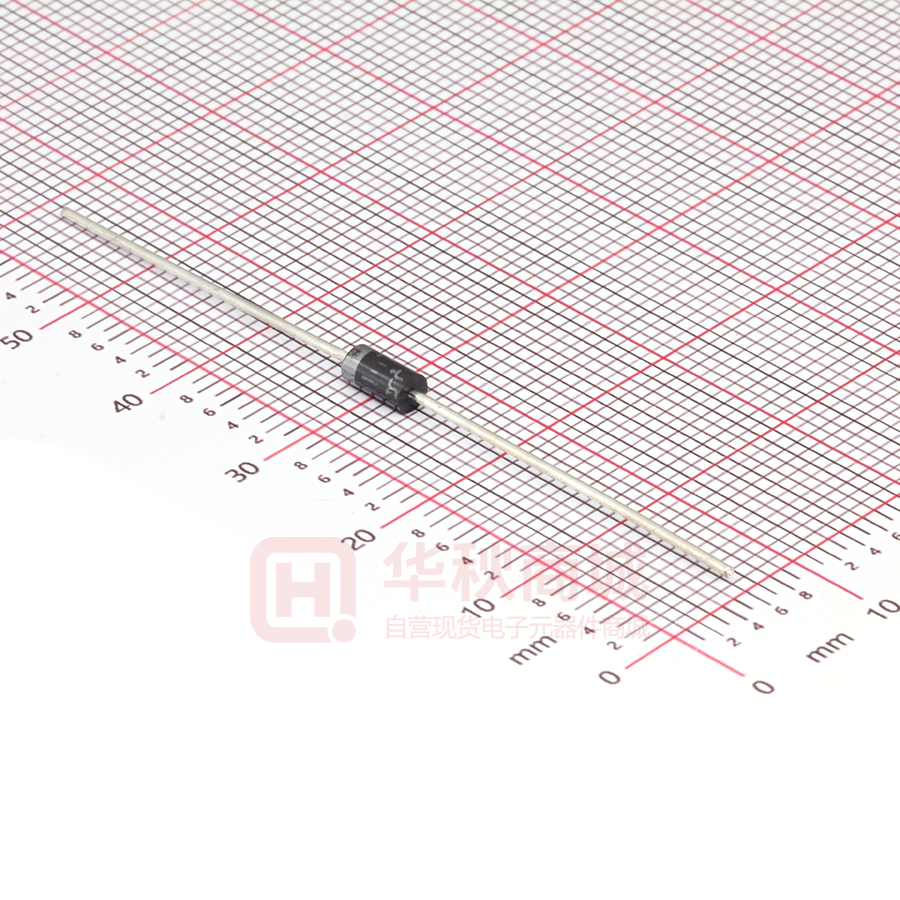

FR107G

RoHS FR101G THRU FR107G  COMPLIANT   Fast Recovery Rectifier Features ● High efficiency ● High current capability ● High reliability ● High surge current capability ● Low power loss ● Glass passivated chip junction ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Mechanical Data ● Package: DO-204AL(DO-41) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 ● Polarity:Color band denotes cathode end　 ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code FR101G FR102G FR103G FR104G FR105G FR106G FR107G FR101G FR102G FR103G FR104G FR105G FR106G FR107G 50 100 200 800 1000 Repetitive Peak Reverse Voltage VRRM V Average Forward Current @60Hz sine wave, Resistance load, Ta=75℃ IF(AV) A 1.0 Forward Surge Current (Non-repetitive) @60Hz Half-sine wave,1 cycle, Ta=25℃ IFSM A 30 Storage Temperature Tstg ℃ -55 ~+150 Junction Temperature Tj ℃ -55~+150 400 600 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Maximum instantaneous forward voltage drop per diode VFM Maximum DC reverse current at rated DC blocking voltage per diode IRRM1 TEST CONDITIONS V FR101G FR102G FR103G FR104G FR105G FR106G FR107G IFM=1.0A 1.3 Ta=25℃ 2.5 Ta=100℃ 100 μA IRRM2 Reverse Recovery time trr ns IF=0.5A IR=1A IRR=0.25A Typical junction capacitance Cj pF Measured at 1MHz and Applied Reverse Voltage of 4.0 V.D.C. 150 250 500 10 ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Thermal Resistance(Typical) RθJ-A ℃/W FR101G FR102G FR103G FR104G FR105G FR106G FR107G 60 1/4 S-A072 Rev. 2.2, 28-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com FR101G THRU FR107G    ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE FR101G~FR107G D1 Approximate 0.30 5000 5000 50000 Tape FR101G~FR107G C1 Approximate 0.30 1000 1000 50000 Bulk ■ Characteristics (Typical) FIG.2: Forward Surge Current Capability 0 . 1 FIG.1: Io-Ta Curve 30 Peak Forward Surge Current (A) 8 . 0 0.8 6 . 0 0.6 4 . 0 0.4 S 2 . 0 Average Forward Output Current (A) 1.0 0.2 0 50 8.3ms Single Half Sine Wave JEDEC Method 18 12 6 0 0 0 1 0 ingle Phase Half Wave 60HZ Resistive or Inductive Load 0.375''(9.5mm) Lead Length 24 1 150 100 2 4 Ambient Temperature (℃) 8 10 20 40 60 80 100 FIG.4: Typical Reverse Characteristics FIG.3: Forward Voltage 100 20 Instantaneous Reverse Current (uA) 10 Instantaneous Forward Current (A) 6 Number of Cycles 4.0 2.0 1.0 0.4 0.2 0.1 TJ=25℃ Pulse width=300us 1% Duty Cycle 10 Tj=125℃ 1.0 Tj=100℃ 0.1 Tj=25℃ 0.01 0.02 0.01 0.6 0.8 1.0 1.2 1.4 1.6 1.8 0.001 2.0 Instantaneous Forward Voltage (V) 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) 2/4 S-A072 Rev. 2.2, 28-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com FR101G THRU FR107G    FIG.5: Diagram of circuit and Testing wave form of reverse recovery time 50 Ω NONINDUCTIVE 10 Ω NONINDUCTIVE trr +0.5A (-) (+) DUT 0 PULSE GENERATOR (NOTE2) (-) 1Ω NONINDUCTIVE OSCILLOSCOPE (NOTE1) -0.25A (+) NOTES: 1.Rise Time=7ns max .Inpot Impedance=1M Ω 22pf 2.Rise Time=10ns max.Sourse Impedance=50Ω -1.0A 1cm SET TIME BASE FOR 5/10ns/cm ■ Outline Dimensions DO-204AL(DO-41) DO-204AL(DO-41) Dim Min Max A 4.22 5.21 B C 2.03 2.72 25.4 / D 0.69 0.86 Dimensions in millimeters 3/4 S-A072 Rev. 2.2, 28-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com FR101G THRU FR107G    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-A072 Rev. 2.2, 28-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
