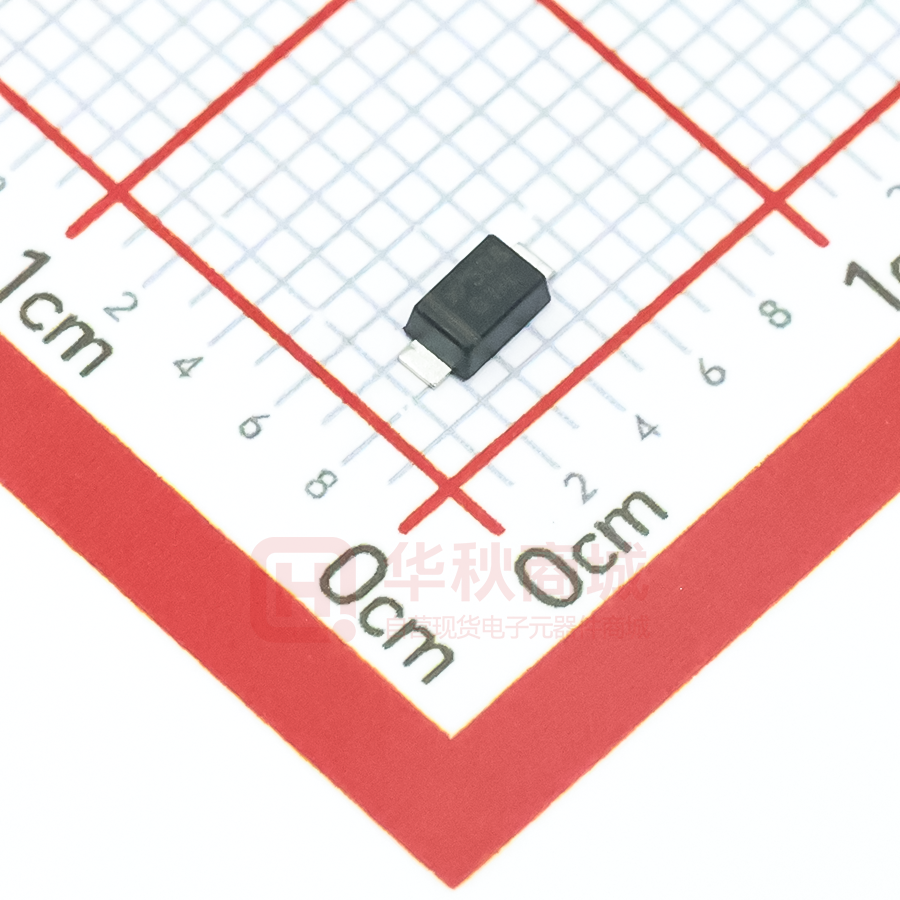

G1MQ

RoHS G1AQ THRU G1MQ  COMPLIANT   Surface Mount General Purpose Rectifier Features ● Low profile package ● Ideal for automated placement ● Glass passivated chip junction ● High forward surge capability ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C ● Part no. with suffix “Q” means AEC-Q101 qualified Typical Applications For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer,automotive and telecommunication. Mechanical Date ● Package: SOD-123FL Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT G1AQ G1BQ G1DQ G1GQ G1JQ G1KQ G1MQ G1A G1B G1D G1G G1J G1K G1M 50 100 200 400 600 800 1000 G1JQ G1KQ G1MQ Device marking code Repetitive peak reverse voltage VRRM V Average rectified output current @60Hz sine wave, Resistance load, TL (Fig 1) Surge(non-repetitive)forward current @ 60Hz half-sine wave,1 cycle, TJ=25℃ IO A 1.0 IFSM A 30 Storage temperature TSTG ℃ -55 ~+150 Junction temperature TJ ℃ -55 ~+150 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） SYMBOL UNIT TEST CONDITIONS Maximum instantaneous forward voltage drop per diode VF V IFM=1.0A 1.1 Typical junction capacitance CJ pF VR=4V,1 MHz 10 Ta=25℃ 5 IRRM μA Ta=125℃ 100 PARAMETER Maximum DC reverse current at rated DC blocking voltage per diode G1AQ G1BQ G1DQ G1GQ 1/5 S-S2217 Rev.1.1,27-Nov-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com G1AQ THRU G1MQ    ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL G1AQ UNIT G1BQ G1DQ G1GQ RθJ-A G1JQ G1KQ G1MQ 701) ℃/W Thermal resistance RθJ-L 201) Note： （1） Thermal resistance between junction and ambient and between junction and lead mounted on P.C.B with 3mm*3mm copper pad areas. ■ Characteristics(Typical) Fig2: Surge Forward Current Capability Fig1:Io-TL Curve 1.2 1.0 Peak Forward Surge Current（A） Average Forward Output（A） 35 0.8 0.6 0.4 Single Phase Half Wave 60Hz Resistive Load 0.2 0 25 20 15 10 0 160 Fig3:Forward Voltage 5 2 10 20 Number of Cycles 50 100 Fig4:Typical Reverse Characteristics Intantaneous Reverse Current(uA) Instantaneous Forwrd Current(A) 1 10 100 10 1 0.1 0.01 8.3ms Single Half Sine Wave JEDEC Method 5 40 80 120 Lead Temperature（℃） 0 30 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 TJ=125℃ 1 0.1 0.01 TJ=25℃ 1E-3 20 40 60 80 Percent of Peak Reverse Voltage(%) Instantaneous Forwrd Voltage(V) 2/5 S-S2217 Rev.1.1,27-Nov-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com 100 G1AQ THRU G1MQ    Fig5:Typical Junction Capacitance 30 Ta=25℃ Junction Capacitnce(pF) 25 f=1MHz 20 15 10 5 0 0 5 10 15 20 25 30 Reverse Voltage(V) ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE G1AQ THRU G1MQ  F1 Approximate 0.0177 3000 15000 120000 7” reel 3/5 S-S2217 Rev.1.1,27-Nov-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com G1AQ THRU G1MQ    ■ Outline Dimensions SOD-123FL SOD-123FL A B D E F C H Dim Min Max A 1.60 B 0.90 1.90 1.10 C 2.55 2.85 D 3.60 3.90 E 1.00 1.20 F 0.40 0.90 G 0.10 0.25 H 0.02 0.05 G Dimensions in millimeters ■ Suggested pad layout SOD-123FL P2 Q1 Q2 Dim Millimeters P1 3.90 P2 1.90 Q1  1.00 Q2  1.50 P1 Dimensions in millimeters 4/5 S-S2217 Rev.1.1,27-Nov-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com G1AQ THRU G1MQ    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with automotive electronics,are not designed for use in medical, lifesaving, lifesust aining,or military,Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improp er use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S2217 Rev.1.1,27-Nov-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
