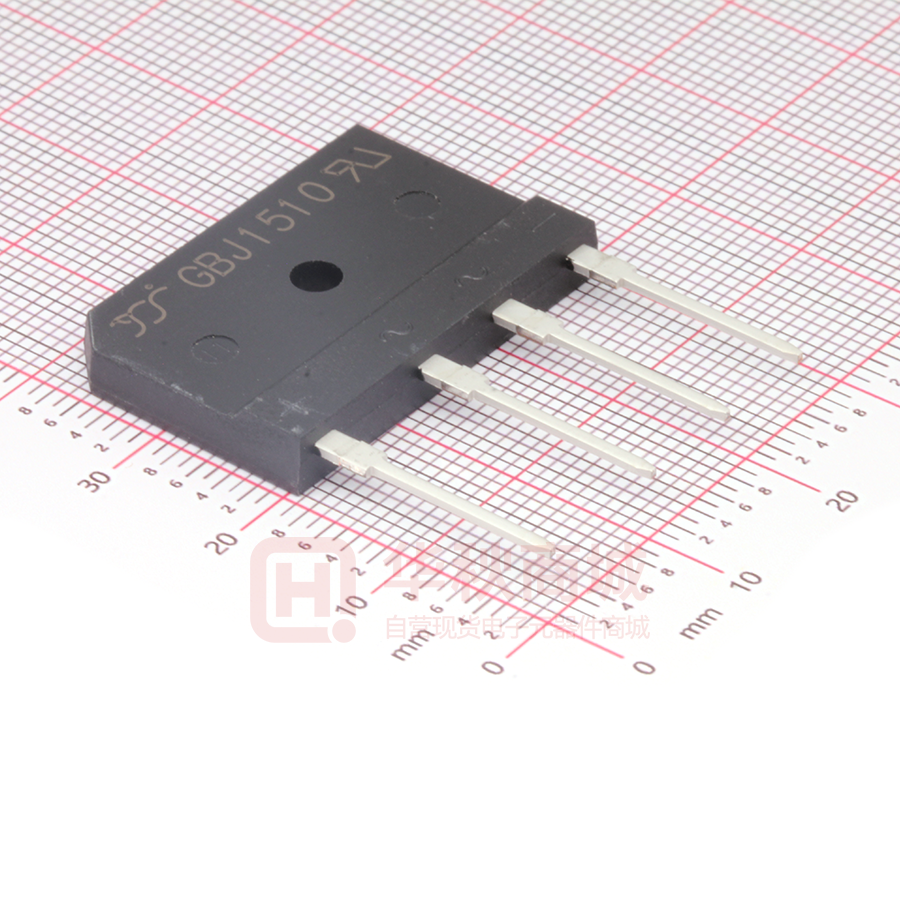

GBJ1510

RoHS GBJ15005 THRU GBJ1510  COMPLIANT   Bridge Rectifiers Features ● UL recognition, file #E230084 ● Thin single in-line package ● High surge current capability ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances, office equipment, industrial automation applications. Mechanical Data ● Package: 6KBJ Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: As marked on body + ~ ~ - ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT GBJ15005 GBJ1501 GBJ1502 GBJ1504 GBJ1506 GBJ1508 GBJ1510 GBJ15005 GBJ1501 Device marking code Repetitive peak reverse voltage With heatsink Average rectified output Tc =100℃ current @60Hz sine wave, Without heatsink R-load Ta =25℃ Surge(non-repetitive)forward current @60Hz half sine wave, 1 cycle, Tj=25℃ Current squared time @1ms≤t≤8.3ms Tj=25℃, Rating of per diode VRRM V IO A 50 100 GBJ1502 GBJ1504 GBJ1506 GBJ1508 GBJ1510 200 400 600 800 1000 15.0 3.5 IFSM A 250 I2t A2S 259 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ -55 ~+150 Dielectric strength @terminals to case, AC 1 minute Vdis KV 2.5 Mounting torque @recommend torque：5kgꞏcm Tor kgꞏcm 8 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER Maximum instantaneous forward voltage drop per diode Maximum DC reverse current at rated DC blocking voltage per diode SYMBOL UNIT VF V IRRM μA TEST GBJ15005 GBJ1501 GBJ1502 GBJ1504 GBJ1506 GBJ1508 GBJ1510 CONDITIONS 1.00 IFM=7.5A VRM=VRR M 5 1/4 S-B378 Rev. 2.5,21-Oct-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBJ15005 THRU GBJ1510    ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） SYMBOL UNIT GBJ15005 GBJ1501 PARAMETER Thermal Resistance Between junction and ambient, Without heatsink RθJ-A Between junction and case, With heatsink RθJ-C GBJ1502 GBJ1504 GBJ1506 GBJ1508 GBJ1510 22.0 ℃/W 1.5 ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE GBJ15005 THRU GBJ1510 B1 Approximate 6.5 15 750 1500 TUBE FIG1:Io-Tc Curve 16 FIG2:Surge Forward Current Capability 300 half sine wave Tc heatsink 12 10 8 6 4 sine wave R-load with heatsink 2 0 70 80 90 100 110 120 130 140 150 160 Tc(℃ ) 0 non-repetitive Tj=25℃ 100 1 2 5 ` FIG3: Forward Voltage Instantaneous Reverse Current（uA） Instantaneous Forward Current（A） 20 10 5.0 Ta=25℃ 1.0 0.5 10 20 Number of Cycles 50 100 FIG4:Typical Reverse Characteristics 100 40 8.3ms 8.3ms 1cycle 200 0 60 IFSM 14 Peak Forward Surge Current（A） Io(A) ■ Characteristics(Typical) Tj=125℃ 10 1.0 Tj=25℃ 0.1 0.2 0.1 0.4 0.6 0.8 1.0 1.2 Instantaneous Forward oltage（V） 0.01 1.4 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage（%） 2/4 S-B378 Rev. 2.5,21-Oct-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBJ15005 THRU GBJ1510    ■ Outline Dimensions 6KBJ 6KBJ HOLE FOR NO. 6 SCREW L A K O DIA B M + ~ - ~ J D E N I C H G F F P Dimensions in millimeters Dim Min Max A 29.7 30.3 B 19.7 20.3 C 17.0 18.0 D 4.8 5.8 E 3.8 4.2 F 7.3 7.7 G 9.8 10.2 H 0.9 1.1 I 2.0 2.4 J 2.3 2.7 K 3.4 3.8 L 4.4 4.8 M 10.8 11.2 N 3.1 3.7 O 3.1 3.4 P 0.6 0.8 3/4 S-B378 Rev. 2.5,21-Oct-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBJ15005 THRU GBJ1510    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-B378 Rev. 2.5,21-Oct-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
