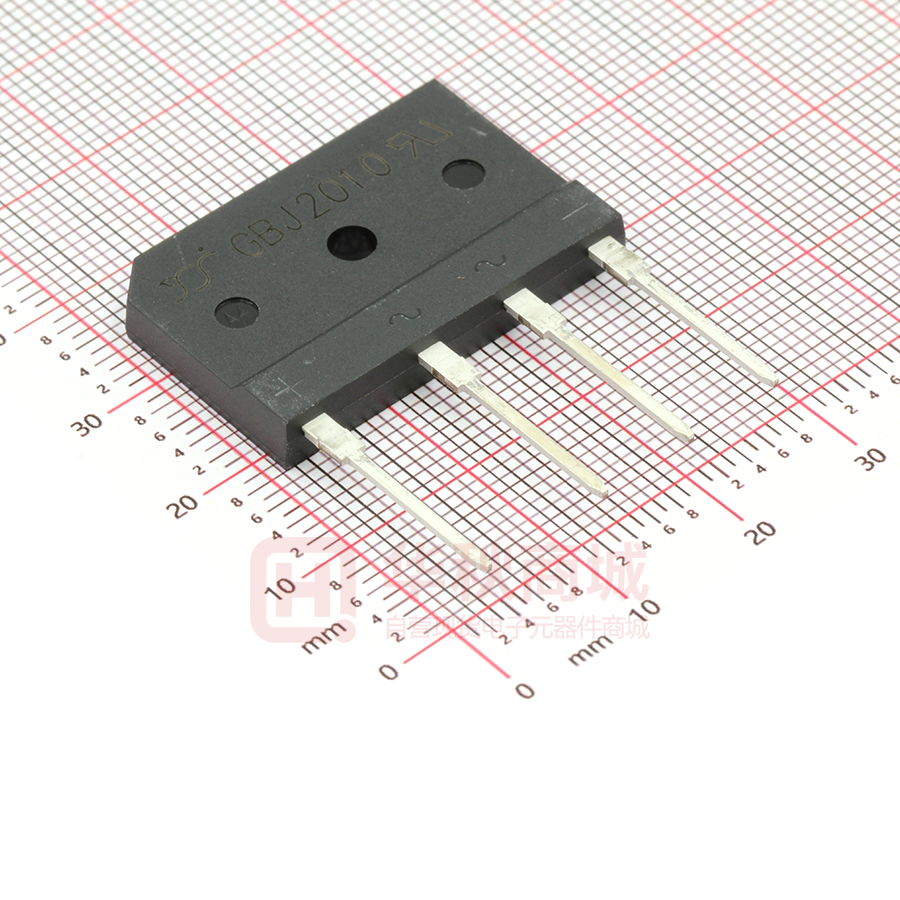

GBJ2010

RoHS GBJ20005 THRU GBJ2010  COMPLIANT   Bridge Rectifiers Features ● UL recognition, file #E230084 ● Thin single in-line package ● High surge current capability ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances, office equipment, industrial automation applications. Mechanical Data ● Package: 6KBJ Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: As marked on body　 + ~ ~ - ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT GBJ20005 GBJ2001 GBJ2002 GBJ2004 GBJ2006 GBJ2008 GBJ2010 GBJ20005 GBJ2001 Device marking code Repetitive peak reverse voltage Average rectified output current @60Hz sine wave, R-load VRRM V IO A With heatsink Tc =87℃ 50 100 GBJ2002 GBJ2004 GBJ2006 GBJ2008 GBJ2010 200 400 600 800 1000 20.0 Without heatsink Ta =25℃ Surge(non-repetitive)forward current @60Hz half sine wave, 1 cycle, Tj=25℃ Current squared time @1ms≤t≤8.3ms Tj=25℃, Rating of per diode IFSM A 280 I2t A2S 325 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ -55 ~+150 Dielectric strength @terminals to case, AC 1 minute Vdis KV 2.5 Mounting torque @recommend torque：5kgꞏcm Tor kgꞏcm 8 3.5 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER Maximum instantaneous forward voltage drop per diode Maximum DC reverse current at rated DC blocking voltage per diode SYMBOL UNIT TEST GBJ20005 GBJ2001 GBJ2002 GBJ2004 GBJ2006 GBJ2008 GBJ2010 CONDITIONS VF V IFM=10.0A 1.00 IRRM μA VRM=VRR M 5 1/4 S-B035 Rev. 2.4, 21-Nov-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBJ20005 THRU GBJ2010    ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER Thermal Resistance SYMBOL Between junction and ambient, Without heatsink RθJ-A Between junction and case, With heatsink RθJ-C UNIT GBJ20005 GBJ2001 GBJ2002 GBJ2004 GBJ2006 GBJ2008 GBJ2010 22.0 ℃/W 1.5 ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE GBJ20005 THRU GBJ2010 B1 Approximate 6.5 15 750 1500 TUBE ■ Characteristics(Typical) FIG2:Surge Forward Current Capability FIG1:Io-Tc Curve 30 300 heatsink Tc 20 10 0 IFSM Peak Forward Surge Current（A） Average Forward Output Current (A) half sine wave 8.3ms 8.3ms 1cycle 200 non-repetitive Tj=25℃ 100 sine wave R-load with heatsink 0 0 80 90 100 110 120 130 140 Case Temperature (℃) 150 160 1 2 5 10 20 Number of Cycles 50 100 ` FIG3: Forward Voltage 60 FIG4:Typical Reverse Characteristics 100 Instantaneous Reverse Current（uA） Instantaneous Forward Current (A) 40 20 10 5.0 Ta=25℃ 1.0 0.5 Tj=125℃ 10 1.0 Tj=25℃ 0.1 0.2 0.1 0.4 0.6 0.8 1.0 1.2 Instantaneous Forward Voltage (V) 0.01 1.4 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage（%） 2/4 S-B035 Rev. 2.4, 21-Nov-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBJ20005 THRU GBJ2010    ■ Outline Dimensions 6KBJ 6KBJ HOLE FOR NO. 6 SCREW L A K O DIA B M + ~ - ~ J D E N I C H G F F P Dimensions in millimeters Dim Min A 29.7 Max 30.3 B 19.7 20.3 C 17.0 18.0 D 4.8 5.8 E 3.8 4.2 F 7.3 7.7 G 9.8 10.2 H 0.9 1.1 I 2.0 2.4 J 2.3 2.7 K 3.4 3.8 L 4.4 4.8 M 10.8 11.2 N 3.1 3.7 O 3.1 3.4 P 0.6 0.8 3/4 S-B035 Rev. 2.4, 21-Nov-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBJ20005 THRU GBJ2010    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-B035 Rev. 2.4, 21-Nov-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
