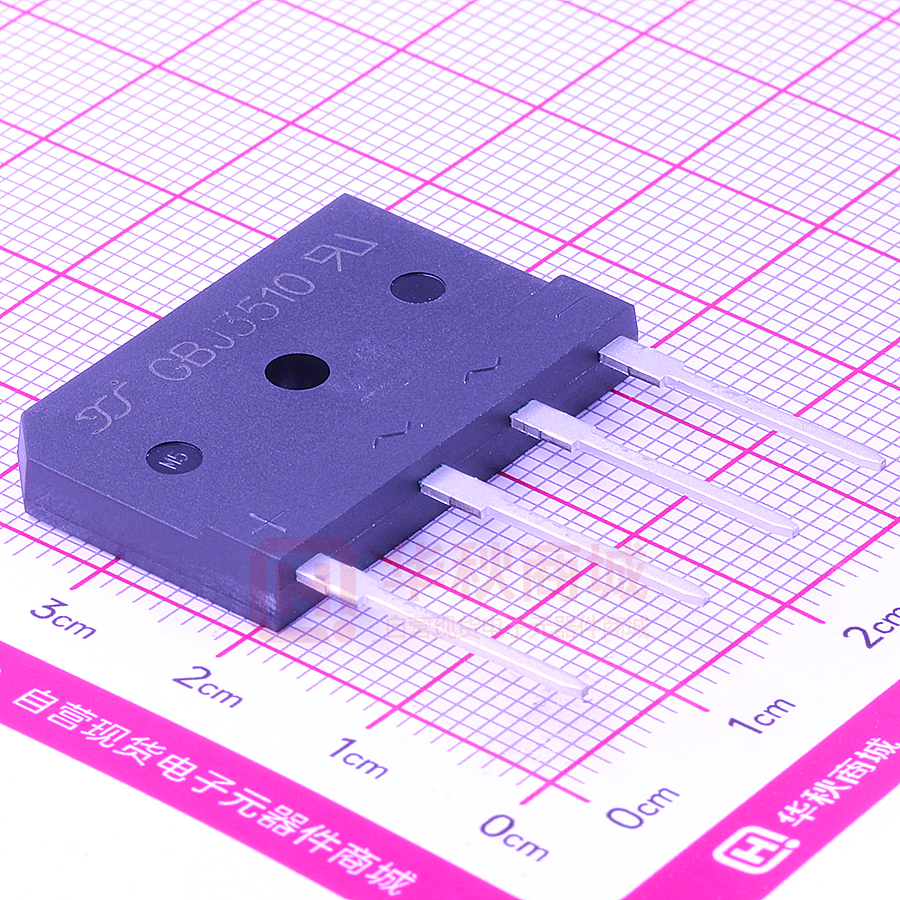

GBJ3510

RoHS GBJ35005 THRU GBJ3510 COMPLIANT Bridge Rectifiers Features ● UL recognition, file #E230084 ● Thin single in-line package ● High surge current capability ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances, office equipment, industrial automation applications. Mechanical Data ● Package: 6KBJ Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: As marked on body + ~ ~ - ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code Repetitive peak reverse voltage With heatsink Average rectified output Tc =87℃ current @60Hz sine wave, Without heatsink R-load, Ta =25℃ Surge(non-repetitive)forward current @60Hz half sine wave, 1 cycle, Tj=25℃ VRRM V IO A GBJ35005 GBJ3501 GBJ3502 GBJ3504 GBJ3506 GBJ3508 GBJ3510 GBJ35005 GBJ3501 GBJ3502 GBJ3504 GBJ3506 GBJ3508 GBJ3510 50 100 200 400 600 800 1000 35 3.5 IFSM A 350 It 2 A2s 508 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ -55 ~+150 Dielectric strength @ terminals to case, AC 1 minute Vdis KV 2 Mounting torque @recommend torque：5kg·cm Tor kg·cm 8 Current squared time @1ms≤t≤8.3ms Tj=25℃, Rating of per diode ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER Maximum instantaneous forward voltage drop per diode Maximum DC reverse current at rated DC blocking voltage per diode SYMBOL UNIT TEST GBJ35005 GBJ3501 GBJ3502 GBJ3504 GBJ3506 GBJ3508 GBJ3510 CONDITIONS VF V IFM=17.5A IRRM μA VRM=VRRM 1.05 5 1/4 S-B038 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBJ35005 THRU GBJ3510 ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER Thermal Resistance SYMBOL Between junction and ambient, Without heatsink Between junction and case, With heatsink UNIT GBJ35005 GBJ3501 GBJ3502 RθJ-A GBJ3504 GBJ3506 GBJ3508 GBJ3510 22 ℃/W RθJ-C 0.8 ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) B1 Approximate 6.5 15 750 1500 TUBE A1 Approximate 6.5 250 250 2000 BOX GBJ35005 THRU GBJ3510 GBJ35005 THRU GBJ3510 ■ Characteristics (Typical) OUTER CARTON DELIVERY MODE QUANTITY(pcs) FIG2:Surge Forward Current Capability FIG1:Io-Tc Curve 450 40 Average Forward Output （A） 30 20 10 sine wave R-load with heatsink 0 70 ` 0 8.3ms 8.3ms 1cycle 300 non-repetitive Tj=25℃ 150 0 80 90 100 110 120 130 140 Case Temperature（℃） FIG3: Forward Voltage 150 1 160 2 5 10 20 50 Number of Cycles FIG4:Typical Reverse Characteristics 100 100 60 Instantaneous Reverse Current （uA） 40 Instantaneous Forward Current （A） IFSM Peak Forward Surge Current（A） half sine wave Tc heatsink 20 10 5.0 Ta=25℃ 1.0 0.5 Tj=125℃ 10 1.0 Tj=25℃ 0.1 0.2 0.01 0.1 0.4 0.6 0.8 1.0 1.2 Instantaneous Forward Voltage（V） 1.4 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage（%） 2/4 S-B038 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBJ35005 THRU GBJ3510 ■ Outline Dimensions 6KBJ 6KBJ HOLE FOR NO. 6 SCREW L A K O DIA B M + ~ - ~ J D E N I C H G F F P Dimensions in millimeters Dim Min Max A 29.7 30.3 B 19.7 20.3 C 17.0 18.0 D 4.8 5.8 E 3.8 4.2 F 7.3 7.7 G 9.8 10.2 H 0.9 1.1 I 2.0 2.4 J 2.3 2.7 K 3.4 3.8 L 4.4 4.8 M 10.8 11.2 N 3.1 3.7 O 3.1 3.4 P 0.6 0.8 3/4 S-B038 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBJ35005 THRU GBJ3510 Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-B038 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
