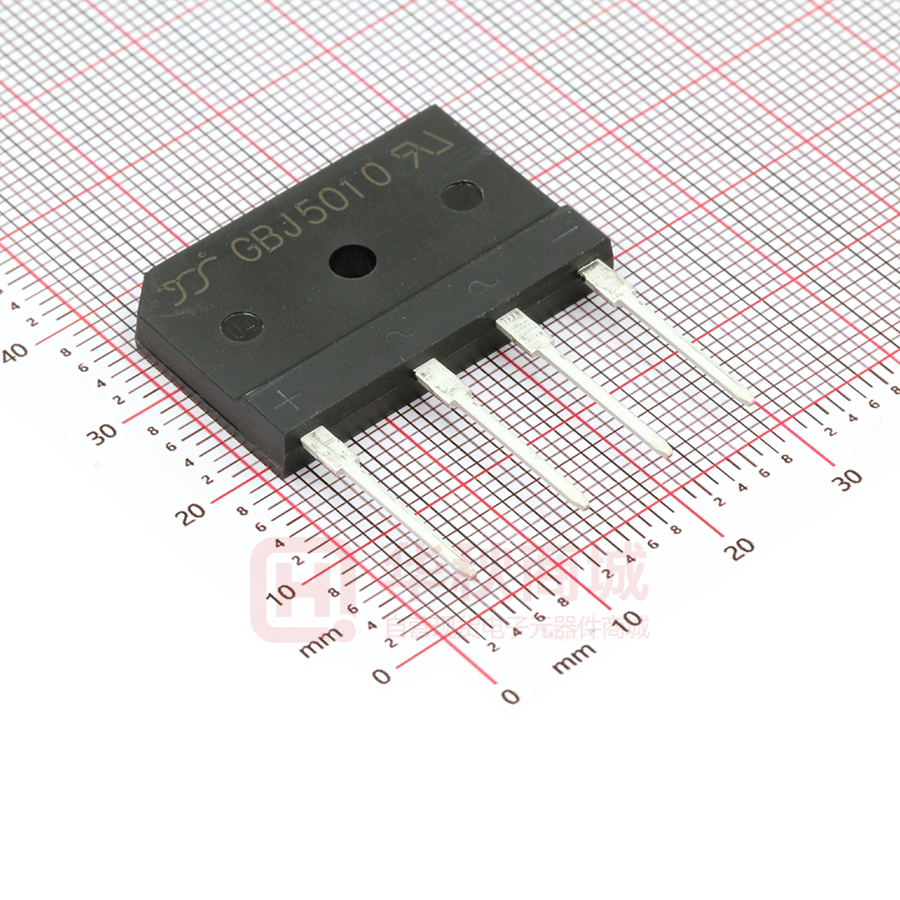

GBJ5010

RoHS GBJ50005 THRU GBJ5010 COMPLIANT Bridge Rectifiers Features ● UL recognition, file #E230084 ● Thin single in-line package ● High surge current capability ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances, office equipment, industrial automation applications. Mechanical Data ● Package: 6KBJ Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: As marked on body + ~ - ~ ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code Repetitive peak reverse voltage VRRM V IO A With heatsink Average rectified output Tc =87℃ current @60Hz sine wave, Without heatsink R-load, Ta =25℃ GBJ50005 GBJ5001 GBJ5002 GBJ5004 GBJ5006 GBJ5008 GBJ5010 GBJ50005 GBJ5001 GBJ5002 GBJ5004 GBJ5006 GBJ5008 GBJ5010 50 100 200 400 600 800 1000 50.0 5.2 Surge(non-repetitive)forward current @60Hz half sine wave, 1 cycle, Tj=25℃ IFSM A 450 It 2 A2s 830 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ -55 ~+150 Dielectric strength @ terminals to case, AC 1 minute Vdis KV 2.5 Mounting torque @recommend torque：5kg·cm Tor kg· cm 8 Current squared time @1ms≤t≤8.3ms Tj=25℃, Rating of per diode ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER Maximum instantaneous forward voltage drop per diode Maximum DC reverse current at rated DC blocking voltage per diode SYMBOL UNIT TEST CONDITIONS VF V IFM=25.0A IRRM μA VRM=VRRM GBJ50005 GBJ5001 GBJ5002 GBJ5004 GBJ5006 GBJ5008 GBJ5010 1.00 5 1/4 S-B039 Rev. 2.2, 27-Nov-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBJ50005 THRU GBJ5010 ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER Thermal Resistance SYMBOL Between junction and ambient, Without heatsink RθJ-A Between junction and case, With heatsink RθJ-C UNIT GBJ50005 GBJ5001 GBJ5002 GBJ5004 GBJ5006 GBJ5008 GBJ5010 22.0 ℃/W 0.8 ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE GBJ50005 THRU GBJ5010 B1 Approximate 6.5 15 750 1500 TUBE ■ Characteristics (Typical) FIG1：Io-Tc Curve FIG2: Surge Forward Current Capability 450 80 Average Forward Output(A) 60 sine wave R-load with heatsink heatsink Tc 50 40 30 8.3ms 8.3ms 1cycle 300 non-repetitive Tj=25℃ 150 20 10 sine wave R-load without heatsink 0 70 80 90 ` 100 110 120 130 140 Case Temperature(℃) 150 0 160 1 2 5 10 20 Number of Cycles 50 100 FIG4:Typical Reverse Characteristics FIG.3 : TYPICAL FORWARD CHARACTERISTCS Instantaneous Reverse Current （uA） 100 100 Instantaneous Forward Current(A ) 0 IFSM Peak Forward Surge Current （A） half sine wave 70 20.0 10.0 2.0 1.0 TJ=25℃ Pulse width=300us 1% Duty Cycle Tj=125℃ 10 1.0 Tj=25℃ 0.1 0.2 0.1 0.4 0.6 0.8 1.0 1.2 1.4 Instantaneous Forward Voltage(V ) 1.6 0.01 0 1.8 20 40 60 80 100 Percent of Rated Peak Reverse Voltage（%） 2/4 S-B039 Rev. 2.2, 27-Nov-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBJ50005 THRU GBJ5010 ■ Outline Dimensions 6KBJ 6KBJ HOLE FOR NO. 6 SCREW L A K O DIA B M + ~ - ~ J D E N I C H G F F P Dimensions in millimeters Dim Min Max A 29.7 30.3 B 19.7 20.3 C 17.0 18.0 D 4.8 5.8 E 3.8 4.2 F 7.3 7.7 G 9.8 10.2 H 0.9 1.1 I 2.0 2.4 J 2.3 2.7 K 3.4 3.8 L 4.4 4.8 M 10.8 11.2 N 3.1 3.7 O 3.1 3.4 P 0.6 0.8 3/4 S-B039 Rev. 2.2, 27-Nov-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBJ50005 THRU GBJ5010 Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-B039 Rev. 2.2, 27-Nov-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
