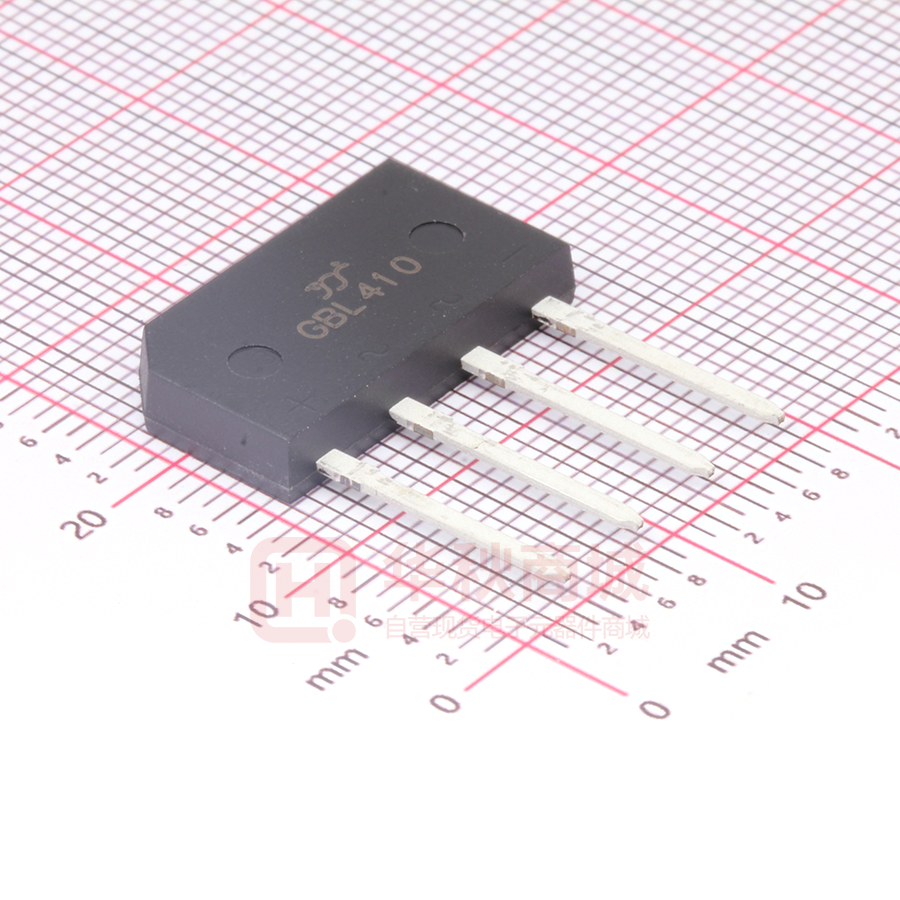

GBL410

RoHS GBL4005 THRU GBL410  COMPLIANT   Bridge Rectifiers Features ● UL recognition, file #E230084 ● Glass passivated chip junction ● Thin single in-line package ● High surge current capability ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications General purpose use in AC/DC bridge full wave rectification  for switching power supply, home appliances, office equipment, industrial automation applications. Mechanical Data     ● Package: 2KBJ Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: As marked on body + ~ - ~ ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code GBL4005 GBL401 GBL402 GBL404 GBL406 GBL408 GBL410 GBL4005 GBL401 GBL402 GBL404 GBL406 GBL408 GBL410 Maximum Repetitive Peak Reverse Voltage VRRM V 50 100 200 400 600 800 1000 Maximum RMS Voltage VRMS V 35 70 140 280 420 560 700 VDC V 50 100 200 400 600 800 1000 IO A IFSM A GBL408 GBL410 Maximum DC blocking Voltage Average Rectified Output Current @60Hz sine wave, R-load, Ta =25℃ Forward Surge Current (Non-repetitive) @60Hz Half-sine wave,1 cycle, Tj=25℃ Forward Surge Current (Non-repetitive) @1ms, square wave, 1 cycle, Tj=25℃ Current squared time @1ms≤t≤8.3ms Tj=25℃,rating of per diode Dielectric strength @ terminals to case, AC 1 minute 4.0 135 250 I2t A2S 62.5 Vdis KV 2 Storage temperature Tstg ℃ -55 ~ +150 Junction temperature Tj ℃ -55 ~ +150 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT TEST CONDITIONS GBL4005 GBL401 Maximum instantaneous forward voltage drop per diode VF V Maximum DC reverse current at rated DC blocking voltage per diode IR μA Typical junction capacitance Cj pF GBL402 GBL404 IFM=2.0A 1.0 Tj =25℃ 5 Tj =125℃ Measured at 1MHz and Applied Reverse Voltage of 4.0 V.D.C 100 GBL406 38 1/4 S-B043 Rev. 2.3, 06-Apr-22 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBL4005 THRU GBL410    ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER Thermal Resistance SYMBOL Between junction and ambient RθJ-A Between junction and case RθJ-C UNIT GBL4005 GBL401 GBL402 GBL404 GBL406 GBL408 GBL410 47 ℃/W 10 ■Ordering Information (Example) PREFERED P/N PACKAGE UNIT WEIGHT(g) CODE B1 GBL4005 - GBL410 MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE 22 1320 5280 Tube Approximate 2.19 ■ Characteristics(Typical) FIG1:Io-Ta Curve Peak Forward Surge Current(A) P.C.B. 4.0 soldering land 3mm φ 3.0 2.0 sine wave R-load free in air 1.0 0 0 40 80 120 Ambient Temperature(℃ ) non-repetitive Tj=25℃ 67.5 160 FIG3: Typical Forward Voltage 1 5 10 20 Number of Cycles 50 100 Tj=125℃ Instantaneous Reverse Current (uA) 40 Instantaneous Forward Current(A) 2 FIG4:Typical Reverse Characteristics 100 60 8.3ms 8.3ms 1cycle 135 0 0 IFSM Average Forward output Current(A) half sine wave on glass-epoxi substrate 5.0 FIG2:Surge Forward Current Capability 202.5 6.0 20 10 5.0 2.0 1.0 0.5 10 1.0 0.1 Tj=25℃ 0.2 0.1 0.6 0.8 1.0 1.2 1.4 Instantaneous Forward Voltage(V) 1.6 0.01 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) 2/4 S-B043 Rev. 2.3, 06-Apr-22 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBL4005 THRU GBL410    ■ Outline Dimensions 2KBJ 2KBJ A I D F H G C E E Min Max A 19.2 21.2 B C 1.2 1.8 1.0 1.2 D J B Dim K E Typ：3.0 E 4.9 5.1 F 10.5 11.5 G 2.0 3.0 H 13.0 15.0 I 3.0 4.0 J 0.9 1.1 K 0.4 0.6 Dimensions in millimeters 3/4 S-B043 Rev. 2.3, 06-Apr-22 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GBL4005 THRU GBL410    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-B043 Rev. 2.3, 06-Apr-22 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
