RoHS

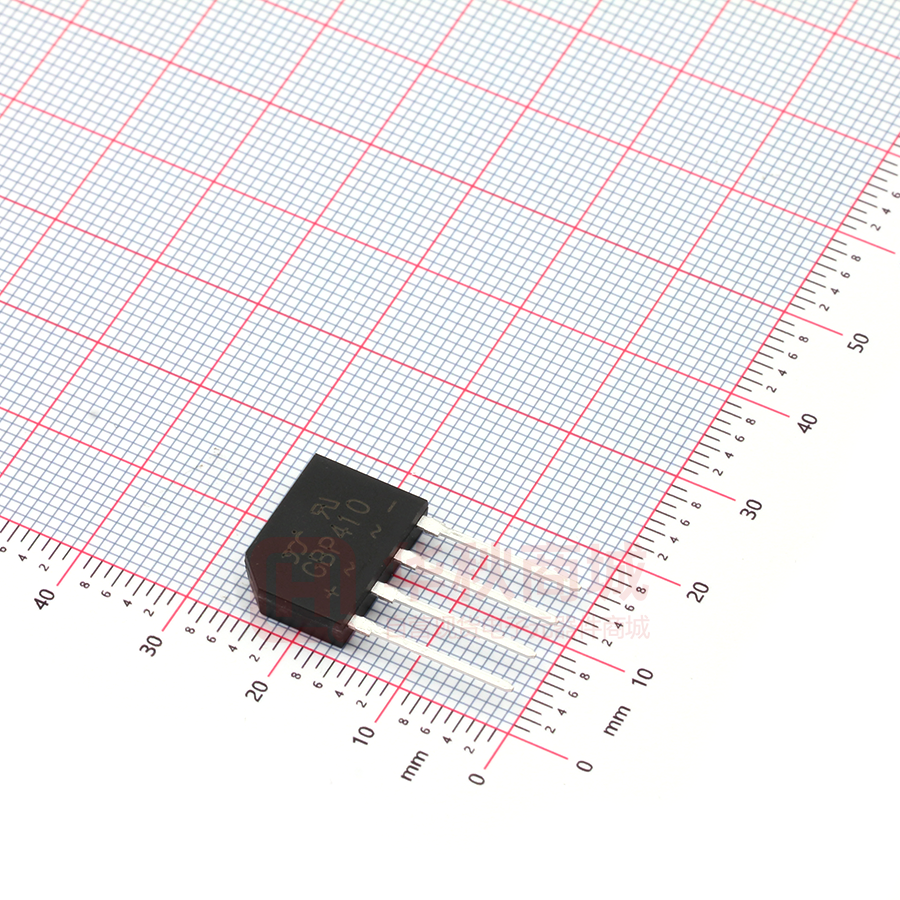

GBP4005 THRU GBP410
COMPLIANT
Bridge Rectifiers
Features
● UL recognition, file #E230084
● Ideal for printed circuit boards
● High surge current capability
● Solder dip 275 °C max. 7 s, per JESD 22-B106
Typical Applications
General purpose use in AC/DC bridge full wave
rectification for monitor, TV, printer, power supply, switching
mode power supply, adapter, audio equipment, and home
appliances applications.
Mechanical Data
● Package: GBP
+
~
~
Molding compound meets UL 94 V-0 flammability
rating, RoHS-compliant
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Polarity: As marked on body
-
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Device marking code
GBP4005
GBP401
GBP402
GBP404
GBP406
GBP408
GBP410
GBP4005
GBP401
GBP402
GBP404
GBP406
GBP408
GBP410
50
100
200
400
600
800
1000
VRRM
V
IO
A
4.0
IFSM
A
110
It
2
A2S
50
Storage temperature
Tstg
℃
-55 ~+150
Junction temperature
Tj
℃
-55 ~+150
Repetitive peak reverse voltage
With heatsink
Tc =140℃
Without heatsink
Tc =70℃
Surge(non-repetitive)forward current
@60Hz half sine wave, 1 cycle, Tj=25℃
Average rectified output
current @60Hz sine wave,
R-load
Current squared time
@1ms≤t≤8.3ms Tj=25℃, Rating of per diode
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL UNIT
Maximum instantaneous forward
voltage drop per diode
Maximum DC reverse current at
rated DC blocking voltage per diode
TEST
CONDITIONS
VF
V
IFM=2.0A
IRRM
μA
VRM=VRRM
GBP4005 GBP401 GBP402 GBP404 GBP406 GBP408 GBP410
1.00
5
■Thermal Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
Thermal
Resistance
Between junction and
ambient
Between junction
and lead
SYMBOL UNIT GBP4005
GBP401
RθJ-A
GBP402
GBP404
GBP406
GBP408
GBP410
47.0
℃/W
RθJ-L
10.0
1/4
S-B220
Rev. 2.2, 19-Jun-15
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
GBP4005 THRU GBP410
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
GBP4005 THRU
GBP410
B1
1.4
35
2100
OUTER CARTON
DELIVERY MODE
QUANTITY(pcs)
4200
TUBE
■ Characteristics (Typical)
FIG1:Io-Tc Curve
FIG2:Surge Forward Current Capability
sine wave R-load
with 75*75*1.6mm Cu
heatsink
With heatsink
4.0
3.0
Without heatsink
2.0
heatsink
Tc-sensing point
0
120
IFSM
5.0
sine wave
140
Peak Forward Surge Current(A)
Average Rectified Output Current (A)
6.0
8.3ms 8.3ms
1cycle
100
non-repetitive
Tj=25℃
80
60
40
1.0
20
0
40
80
120
Case Temperature(℃)
0
160
1
FIG3: Forward Voltage
2
5
10
20
Number of Cycles
50
100
FIG4:Typical Reverse Characteristics
100
6
Tj=150℃
4
Instantaneous Reverse Current(uA)
Instantaneous Forward Current(A)
`
0
2
1
0.5
Ta=25℃
0.1
0.05
0.02
10
1.0
Tj=25℃
0.1
0.01
0
0.01
0.4
0.6
0.8
1.0
1.2
Instantaneous Forward Voltage(V)
1.4
20
40
60
80
Percent of Rated Peak Reverse Voltage(%)
100
2/4
S-B220
Rev. 2.2, 19-Jun-15
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
GBP4005 THRU GBP410
■ Outline Dimensions
GBP
A
GBP
H
C2.7
B
I
C
E
D
F
J
G
G
Dim
Min
Max
A
14.25
14.75
B
10.10
10.60
C
1.80
2.20
D
14.25
14.73
E
1.22
1.42
F
0.76
0.86
G
3.70
3.90
H
3.35
3.65
I
0.80
1.10
J
0.35
0.55
G
Dimensions in millimeters
3/4
S-B220
Rev. 2.2, 19-Jun-15
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
GBP4005 THRU GBP410
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-B220
Rev. 2.2, 19-Jun-15
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
