RoHS
GS2A THRU GS2M
COMPLIANT
Surface Mount General Purpose Rectifier
Features
● Low profile package
● Ideal for automated placement
● Glass passivated chip junction
● High forward surge capability
● Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
Typical Applications
For use in general purpose rectification of power
supplies, inverters, converters, and freewheeling diodes for
consumer and telecommunication.
Mechanical Data

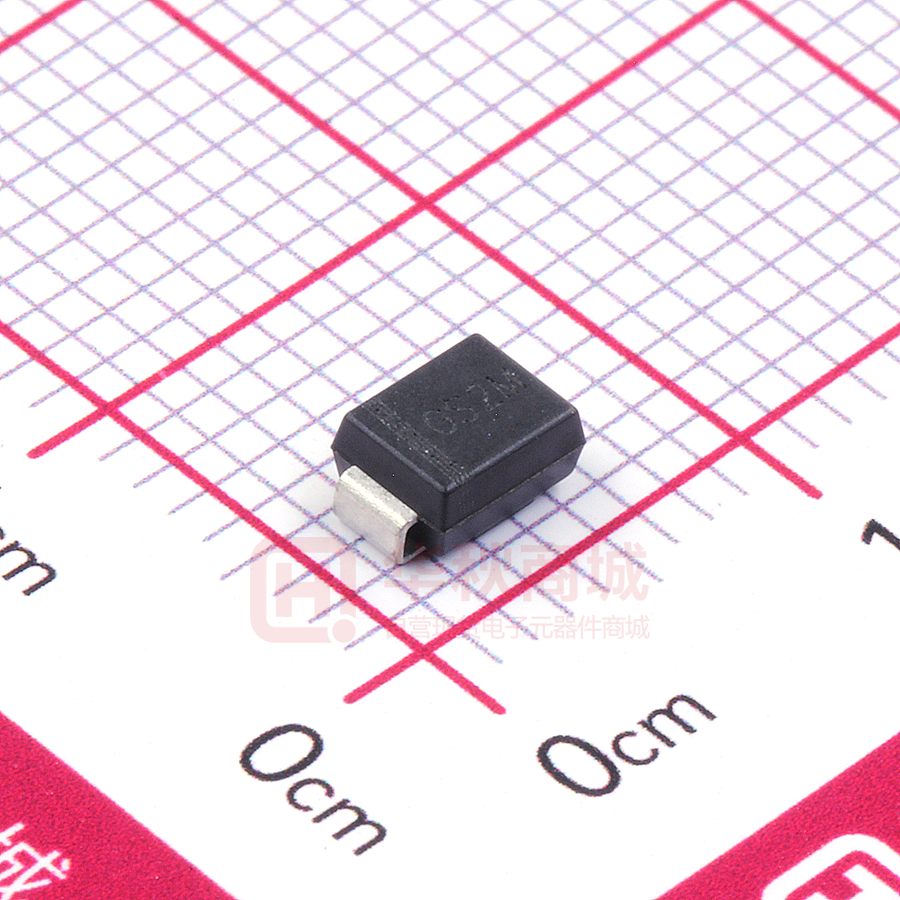

● Package: DO-214AA (SMB)
Molding compound meets UL 94 V-0 flammability
rating, RoHS-compliant, halogen-free
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Polarity: Cathode line denotes the cathode end
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Device marking code
GS2A
GS2B
GS2D
GS2G
GS2J
GS2K
GS2M
GS2A
GS2B
GS2D
GS2G
GS2J
GS2K
GS2M
50
100
200
400
600
800
1000
GS2J
GS2K
GS2M
VRRM
V
IO
A
2.0
Surge(non-repetitive)forward current
@60Hz half-sine wave,1 cycle, Ta=25℃
IFSM
A
50
Storage temperature
Tstg
℃
-55~+150
Junction temperature
Tj
℃
-55~+150
Repetitive peak reverse voltage
Average rectified output current
@60Hz sine wave, resistance load, TL (Fig.1)
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
SYMBOL
UNIT
TEST
CONDITIONS
Maximum instantaneous
forward voltage drop per diode
VF
V
IFM=2.0A
1.15
Maximum DC reverse current
at rated DC blocking voltage
per diode @ VRM=VRRM
Ta =25℃
5.0
IRRM
μA
Ta =125℃
100
PARAMETER
GS2A
GS2B
GS2D
GS2G
1/4
S-S348
Rev. 2.5, 10-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
GS2A THRU GS2M
■Thermal Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
GS2A
GS2B
GS2D
RθJ-A
GS2G
GS2J
GS2K
GS2M
601)
℃/W
Typical Thermal resistance
RθJ-L
201)
Note:
(1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.3" x 0.3" (8.0 mm x 8.0 mm) copper pad areas
■ Characteristics (Typical)
FIG1:Io‐TL Curve
FIG2:Surge Forward Current Capability
2.4
2.0
Peak Forward Surge Current(A)
Average Forward Output Current(A)
70
1.6
1.2
0.8
0.4
0
resistive or inductive on P.C.B. with
0.3" x 0.3" (8.0 mm x 8.0 mm)
copper pad areas
0
25
50
75
100
125
150
60
50
40
30
20
10
0
175
8.3ms Single Half Sine Wave
1
2
5
10
20
Number of Cycles
Lead Temperature(℃)
FIG3:Forward Voltage
FIG4:Typical Reverse Characteristics
Instantaneous Reverse Current(uA)
Instantaneous Forward Current (A)
2
1
0.1
0.4
100
100
10
0.01
50
0.6
0.8
1.0
1.2
1.4
Ta=125℃
10
1.0
Ta=25℃
0.1
0.01
0
20
40
60
80
100
Percent of Rated Peak Reverse Voltage(%)
Instantaneous Forward Voltage (V)
2/4
S-S348
Rev. 2.5, 10-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
GS2A THRU GS2M
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY
MODE
GS2A-GS2M
F1
Approximate 0.096
3000
6000
48000
13” reel
GS2A-GS2M
F2
Approximate 0.096
750
3000
24000
7” reel
GS2A-GS2M
F3
Approximate 0.096
500
2000
16000
7” reel
■ Outline Dimensions
DO-214AA(SMB)
A
DO-214AA(SMB)
B
C
D
G
F
H
Dim
Min
Max
A
1.85
2.15
B
3.30
3.94
C
4.25
4.75
D
1.99
2.61
E
5.21
5.59
F
0.90
1.41
G
0.10
0.20
H
0.15
0.31
E
Dimensions in millimeters
■ Suggested pad layout
DO-214AA(SMB)
P2
Q2
Q1
P3
P1
Dim
Millimeters
P1
6.8
P2
4.3
P3
1.8
Q1
2.5
Q2
2.3
Dimensions in millimeters
3/4
S-S348
Rev. 2.5, 10-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
GS2A THRU GS2M
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-S348
Rev. 2.5, 10-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
