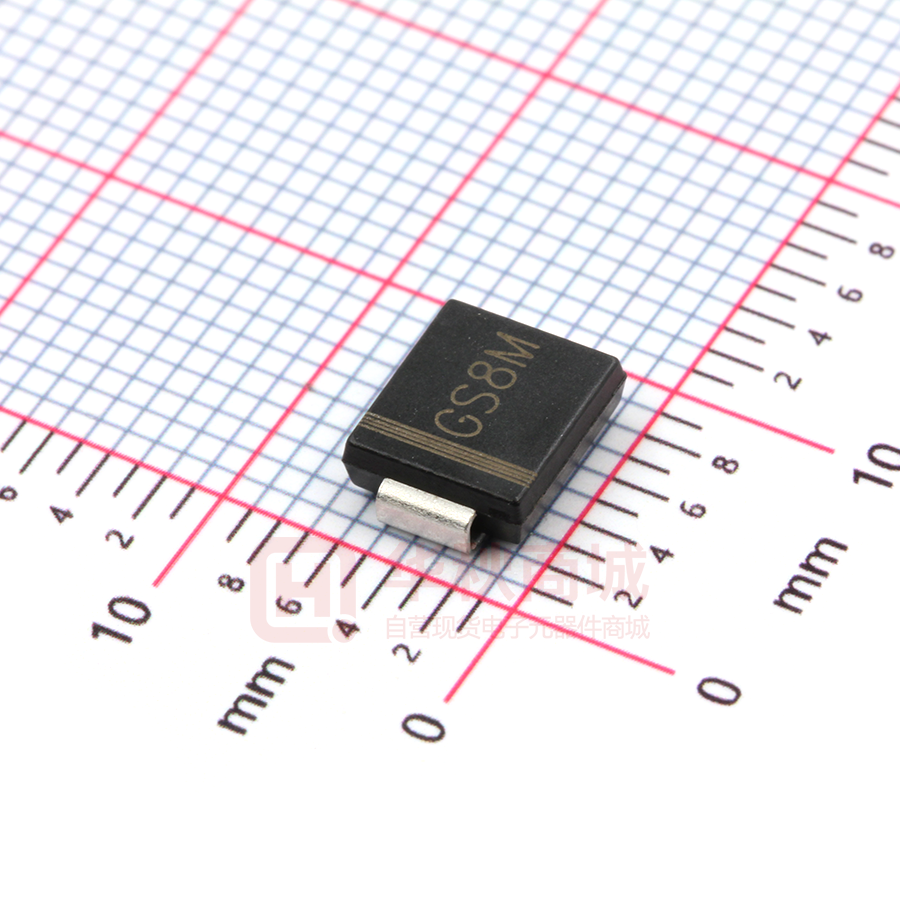

GS8M

RoHS GS8A THRU GS8M  COMPLIANT   Surface Mount General Purpose Rectifier Features ● High efficiency ● High current capability ● High reliability ● High surge current capability ● Low power loss ● Solder dip 260 °C max. 10 s, per JESD 22-B106 Mechanical Data ● Package: DO-214AB (SMC)　 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 ● Polarity:Color band denotes cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code GS8A GS8B GS8D GS8G GS8J GS8K GS8M GS8A GS8B GS8D GS8G GS8J GS8K GS8M 50 100 200 400 600 800 1000 VRRM V IO A 8.0 Forward Surge Current (Non-repetitive) @60Hz Half-sine wave,1 cycle, Ta=25℃ IFSM A 200 Storage Temperature Tstg ℃ -55 ~+150 Junction Temperature Tj ℃ -55 ~+150 Repetitive Peak Reverse Voltage Average Rectified Output Current @60Hz sine wave, Resistance load, TL (FIG.1) ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER GS8A GS8B GS8D GS8G SYMBOL UNIT TEST CONDITIONS Maximum instantaneous forward voltage drop per diode VF V IFM=8.0A 1.1 Maximum DC reverse current at rated DC blocking voltage per diode Ta=25℃ 5 IR μA Ta=125℃ 100 Typical junction capacitance Cj Measured at 1MHZ and Applied Reverse Voltage of 4.0 V.D.C. 60 pF GS8J GS8K GS8M ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER Thermal Resistance Junction to ambient SYMBOL UNIT GS8A RθJ-A GS8B GS8D GS8G GS8J GS8K GS8M 651) ℃/W Junction to lead RθJ-L 121) 1/4 S-S379 Rev. 2.4, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GS8A THRU GS8M    Note(1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.6" x 0.6" (16 mm x 16 mm) copper pad areas ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE GS8A~GS8M F1 Approximate 0.261 3000 6000 42000 13” reel ■ Characteristics(Typical) FIG.2: Forward Surge Current Capability FIG.1: Io-TL Curve 200 12.0 Peak Forward Surge Current (A) Average Forward Output Current (A) 13.0 10.0 8.0 6.0 4.0 8.3ms Single Half Sine Wave JEDEC Method 120 80 40 Resistive or Inductive Load P.C.B. Mounted on 0.6"×0.6" (16mm×16mm)Copper Pad Areas 2.0 0 160 0 25 75 50 100 125 1 150 2 4 Lead Temperature (℃) 20 40 60 80 100 100 Instantaneous Reverse Current (uA) Instantaneous Forward Current (A) 8 10 FIG.4: Typical Reverse Characteristics FIG.3: Forward Voltage 100 10 1.0 0.1 0.01 0.4 6 Number of Cycles 0.5 0.6 0.7 0.8 0.9 1.0 1.1 Instantaneous Forward Voltage (V) Ta=125℃ 10 1.0 0.1 Ta=25℃ 0.01 0.001 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) 2/4 S-S379 Rev. 2.4, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GS8A THRU GS8M    ■ Outline Dimensions DO-214AB(SMC) DO-214AB (SMC) Dim Min Max A 6.60 7.11 B 2.85 3.27 C 5.59 6.22 D 7.75 8.13 E 1.99 2.61 F 0.15 0.31 G 0.76 1.52 H 0.10 0.20 Dimensions in millimeters ■ Suggested pad layout P2 Q1 Dim Typ P1 9.9 P2 3.84 Q1  3.03 Q2  3.82 Q2 P1 Dimensions in millimeters 3/4 S-S379 Rev. 2.4, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com GS8A THRU GS8M    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S379 Rev. 2.4, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
