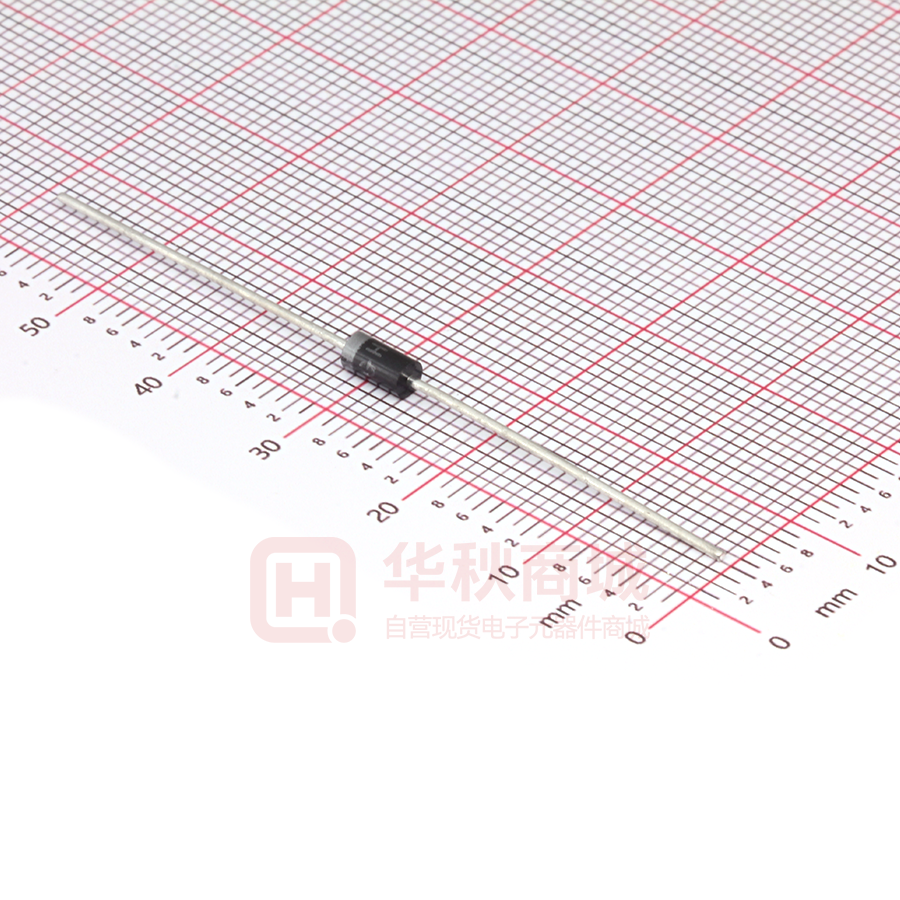

HER108G

RoHS HER101G THRU HER108G COMPLIANT High Efficient Rectifier Features ● High efficiency ● High current capability ● High Reliability ● High surge current capability ● Glass passivated chip junction ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Mechanical Data ● Package: DO-204AL(DO-41) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 ● Polarity:Color band denotes cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code HER101 G HER102 G HER103 G HER104 G HER105 G HER106 G HER107 G HER108 G HER101 G HER102 G HER103 G HER104 G HER105 G HER106 G HER107 G HER108 G 50 100 200 300 400 600 800 1000 Repetitive Peak Reverse Voltage VRRM V Average Forward Current @60Hz sine wave, Resistance load, Ta=75℃ IF(AV) A 1.0 Forward Surge Current (Non-repetitive) @60Hz Half-sine wave,1 cycle, Ta=25℃ IFSM A 30 Storage Temperature Tstg ℃ -55 ~+150 Junction Temperature Tj ℃ -55~+150 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT TEST CONDITIONS Maximum instantaneous forward voltage drop per diode VFM V IFM =1.0A Maximum DC reverse current at rated DC blocking voltage per diode IRRM1 HER101 HER102 HER103 HER104 HER105 HER106 HER107 HER108 G G G G G G G G 1.0 1.3 Ta=25℃ 2.5 Ta=100℃ 150 1.7 μA IRRM2 Reverse Recovery time trr ns IF=0.5A IR=1A IRR=0.25A 50 75 Typical junction capacitance Cj pF Measured at 1MHZ and Applied Reverse Voltage of 4.0 V.D.C. 20 10 ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT HER101G HER102G HER103G HER104G HER105G HER106G HER107G HER108G Thermal Resistance(Typical) RθJ-A ℃/W 60 1/4 S-A088 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com HER101G THRU HER108G ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE HER101G~HER108G D1 Approximate 0.30 5000 5000 50000 Tape HER101G~HER108G C1 Approximate 0.30 1000 1000 50000 Bulk ■ Characteristics (Typical) FIG.2: Forward Surge Current Capability FIG.1: Io-Ta Curve 30 Peak Forward Surge Current (A) Average Forward Output Current (A) 1.0 0.8 0.6 0.4 Single Phase Half Wave 60HZ Resistive or Inductive Load 0.375''(9.5mm) Lead Length 0.2 24 8.3ms Single Half Sine Wave JEDEC Method 18 12 6 0 0 100 100 50 0 150 1 2 4 Ambient Temperature (℃) 6 8 10 20 40 60 80 100 Number of Cycles FIG.3: Forward Voltage FIG.4: Typical Reverse Characteristics 20 100 HER104G-HER105G HER101G-HER103G Instantaneous Reverse Current (uA) Instantaneous Forward Current (A) 10 4.0 2.0 HER106G-HER108G 1.0 0.4 0.2 0.1 TJ=25℃ Pulse width=300us 1% Duty Cycle Tj=125℃ 10 1.0 Tj=100℃ 0.1 Tj=25℃ 0.01 0.02 0.01 0.6 0.001 0.8 1.0 1.2 1.4 1.6 1.8 0 2.0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (V) 2/4 S-A088 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com HER101G THRU HER108G FIG.5: Diagram of circuit and Testing wave form of reverse recovery time 50Ω NONINDUCTIVE 10Ω NONINDUCTIVE trr +0.5A (-) (+) DUT 0 PULSE GENERATOR (NOTE2) (-) 1Ω NONINDUCTIV OSCILLOSCOPE (NOTE1) -0.25A (+) NOTES: 1.Rise Time=7ns max .Inpot Impedance=1MΩ 22pf 2.Rise Time=10ns max.Sourse Impedance=50 Ω -1.0A 1cm SET TIME BASE FOR 5/10ns/cm ■ Outline Dimensions DO-204AL(DO-41) DO-204AL(DO-41) Dim Min Max A 4.22 5.21 B C 2.03 2.72 25.4 / D 0.69 0.86 Dimensions in millimeters 3/4 S-A088 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com HER101G THRU HER108G Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-A088 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
