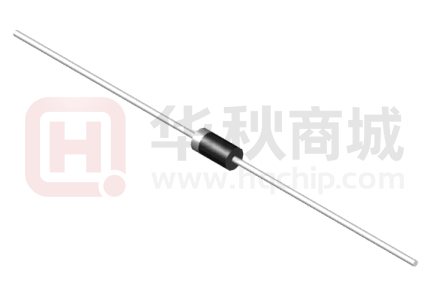

HER207G

HER207G

  • 厂商:

    YANGJIE(扬杰科技)

  • 封装:

    DO-15(DO-204AC)

  • 描述:

    高效整流器 -55℃~+150℃@(Tj) 2.5uA@800V 2A 1.7V@2A 75ns Single 800V DO-15

  • 数据手册
  • 价格&库存
HER207G 数据手册
RoHS HER201G THRU HER208G COMPLIANT High Efficient Rectifier Features ● High efficiency ● High current capability ● High Reliability ● High surge current capability ● Glass passivated chip junction ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Mechanical Data ● Package: DO-204AC(DO-15) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 ● Polarity:Color band denotes cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified) PARAMETER SYMBOL UNIT Device marking code HER201 G HER202 G HER203 G HER204 G HER205 G HER206 G HER207 G HER208 G HER201 G HER202 G HER203 G HER204 G HER205 G HER206 G HER207 G HER208 G 50 100 200 300 400 600 800 1000 Repetitive Peak Reverse Voltage VRRM V Average Forward Current @60Hz sine wave, Resistance load, Ta=75℃ IF(AV) A 2.0 Forward Surge Current (Non-repetitive) @60Hz Half-sine wave,1 cycle, Ta=25℃ IFSM A 60 Storage Temperature Tstg ℃ -55 ~+150 Junction Temperature Tj ℃ -55~+150 ■Electrical Characteristics(Ta=25℃ Unless otherwise specified) PARAMETER SYMBOL Maximum instantaneous forward voltage drop per diode VFM Maximum DC reverse current at rated DC blocking voltage per diode IRRM1 UNIT TEST CONDITIONS HER201 HER202 HER203 HER204 HER205 HER206 HER207 HER208 G G G G G G G G IFM =2.0A V 1.0 1.3 Ta=25℃ 2.5 Ta=100℃ 150 1.7 μA IRRM2 Reverse Recovery time trr ns IF=0.5A IR=1A IRR=0.25A 50 75 Typical junction capacitance Cj pF Measured at 1MHZ and Applied Reverse Voltage of 4.0 V.D.C. 25 15 ■Thermal Characteristics (Ta=25℃ Unless otherwise specified) PARAMETER SYMBOL UNIT HER201G HER202G HER203G HER204G HER205G HER206G HER207G HER208G Thermal Resistance(Typical) RθJ-A ℃/W 40 1/4 S-A094 Rev. 2.3, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com HER201G THRU HER208G ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE HER201G~HER208G D1 Approximate 0.38 3000 3000 30000 Tape HER201G~HER208G C1 Approximate 0.38 500 500 25000 Bulk ■ Characteristics (Typical) FIG.1: Io-Ta Curve FIG.2: Forward Surge Current Capability 60 Peak Forward Surge Current (A) Average Forward Output Current (A) 2.0 1.6 1.2 0.8 Single Phase Half Wave 60HZ Resistive or Inductive Load 0.375''(9.5mm) Lead Length 0.4 48 8.3ms Single Half Sine Wave JEDEC Method 36 24 12 0 0 0 1 100 100 50 2 4 150 6 8 10 20 40 60 80 100 Number of Cycles Ambient Temperature (℃) FIG.3: Forward Voltage FIG.4: Typical Reverse Characteristics 20 100 HER204G-HER205G Tj=150℃ Instantaneous Reverse Current (uA) Instantaneous Forward Current (A) 10 HER201G-HER203G 4.0 2.0 HER206G-HER208G 1.0 0.4 0.2 0.1 TJ=25℃ Pulse width=300us 1% Duty Cycle Tj=125℃ 10 1.0 Tj=100℃ 0.1 Tj=25℃ 0.01 0.02 0.01 0.6 0.001 0.8 1.0 1.2 1.4 1.6 1.8 0 2.0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (V) 2/4 S-A094 Rev. 2.3, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com HER201G THRU HER208G FIG.5: Diagram of circuit and Testing wave form of reverse recovery time 10Ω NONINDUCTIVE 50Ω NONINDUCTIVE trr +0.5A (-) (+) DUT 0 PULSE GENERATOR (NOTE2) (-) 1Ω NONINDUCTIV OSCILLOSCOPE (NOTE1) -0.25A (+) NOTES: 1.Rise Time=7ns max .Inpot Impedance=1MΩ 22pf 2.Rise Time=10ns max.Sourse Impedance=50 Ω -1.0A 1cm SET TIME BASE FOR 5/10ns/cm ■ Outline Dimensions DO-204AC(DO-15) DO-204AC(DO-15) Dim Min Max A 5.80 7.60 B C 2.60 3.60 25.4 / D 0.70 0.90 Dimensions in millimeters 3/4 S-A094 Rev. 2.3, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com HER201G THRU HER208G Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-A094 Rev. 2.3, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
