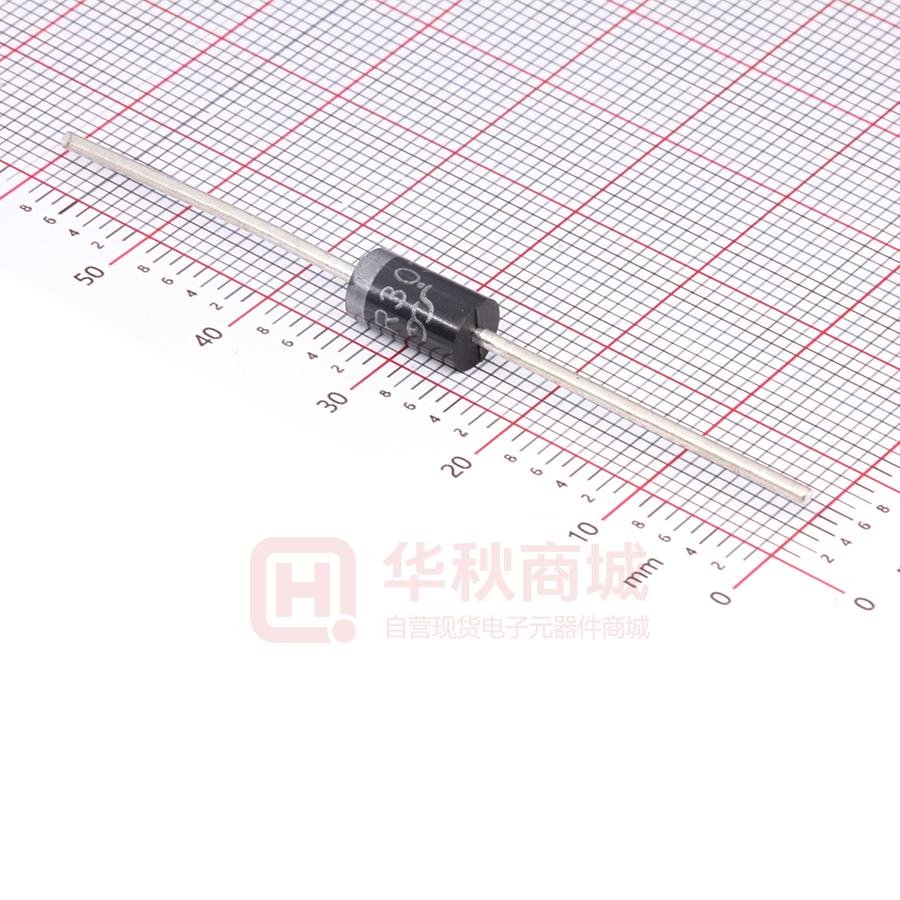

HER303G

RoHS HER301G THRU HER308G COMPLIANT High Efficient Rectifier Features ● High efficiency ● High current capability ● High Reliability ● High surge current capability ● Glass passivated chip junction ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Mechanical Data ● Package: DO-201AD(DO-27) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 ● Polarity:Color band denotes cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code HER301 G HER302 G HER303 G HER304 G HER305 G HER306 G HER307 G HER308 G HER301 G HER302 G HER303 G HER304 G HER305 G HER306 G HER307 G HER308 G 50 100 200 300 400 600 800 1000 Repetitive Peak Reverse Voltage VRRM V Average Forward Current @60Hz sine wave, Resistance load, Ta=60℃ IF(AV) A 3.0 Forward Surge Current(Non-repetitive) @60Hz Half-sine wave, 1 cycle, Ta=25℃ IFSM A 125 Storage Temperature Tstg ℃ -55 ~+150 Junction Temperature Tj ℃ -55~+150 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL Maximum instantaneous forward voltage drop per diode VFM Maximum DC reverse current at rated DC blocking voltage per diode IRRM1 UNIT TEST CONDITIONS HER301 HER302 HER303 HER304 HER305 HER306 HER307 HER308 G G G G G G G G IFM =3.0A V 1.0 1.3 Ta=25℃ 2.5 Ta=100℃ 150 1.7 μA IRRM2 Reverse Recovery time trr ns IF=0.5A IR=1A IRR=0.25A 50 75 Typical junction capacitance Cj pF Measured at 1MHZ and Applied Reverse Voltage of 4.0 V.D.C. 70 40 ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT HER301G HER302G HER303G HER304G HER305G HER306G HER307G HER308G Thermal Resistance(Typical) RθJ-A ℃/W 30 1/4 S-A096 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com HER301G THRU HER308G ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE HER301G~HER308G D1 Approximate 1.05 1250 1250 12500 Tape HER301G~HER308G C1 Approximate 1.05 250 250 12500 Bulk ■ Characteristics (Typical) FIG.1: Io-Ta Curve FIG.2: Forward Surge Current Capability 125 Peak Forward Surge Current (A) Average Forward Output Current (A) 3.0 2.4 1.8 1.2 Single Phase Half Wave 60HZ Resistive or Inductive Load 0.375''(9.5mm) Lead Length 0.6 100 8.3ms Single Half Sine Wave JEDEC Method 75 50 25 0 0 0 100 100 50 1 150 2 4 6 8 10 20 40 60 80 100 Number of Cycles Ambient Temperature (℃) FIG.4: Typical Rrverse Characteristics FIG.3: Forward Voltage 100 100 10 Instantaneous Reverse Current (uA) Instantaneous Forward Current (A) HER301G-HER303G HER304G-HER305G HER306G-HER308G 1.0 0.1 0.01 0.6 TJ=25℃ Pulse width=300us 1% Duty Cycle Tj=125℃ 10 1.0 Tj=100℃ 0.1 Tj=25℃ 0.01 0.001 0.8 1.0 1.2 1.4 1.6 1.8 0 2.0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (V) 2/4 S-A096 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com HER301G THRU HER308G FIG.5: Diagram of circuit and Testing wave form of reverse recovery time 10Ω NONINDUCTIVE 50Ω NONINDUCTIVE trr +0.5A (-) (+) DUT 0 PULSE GENERATOR (NOTE2) (-) 1Ω NONINDUCTIV OSCILLOSCOPE (NOTE1) -0.25A (+) NOTES: 1.Rise Time=7ns max .Inpot Impedance=1MΩ 22pf 2.Rise Time=10ns max.Sourse Impedance=50 Ω -1.0A 1cm SET TIME BASE FOR 5/10ns/cm ■ Outline Dimensions DO-201AD(DO-27) DO-201AD(DO-27) Dim Min Max A 8.50 9.50 B C 5.00 5.60 25.4 / D 1.20 1.30 Dimensions in millimeters 3/4 S-A096 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com HER301G THRU HER308G Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-A096 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
