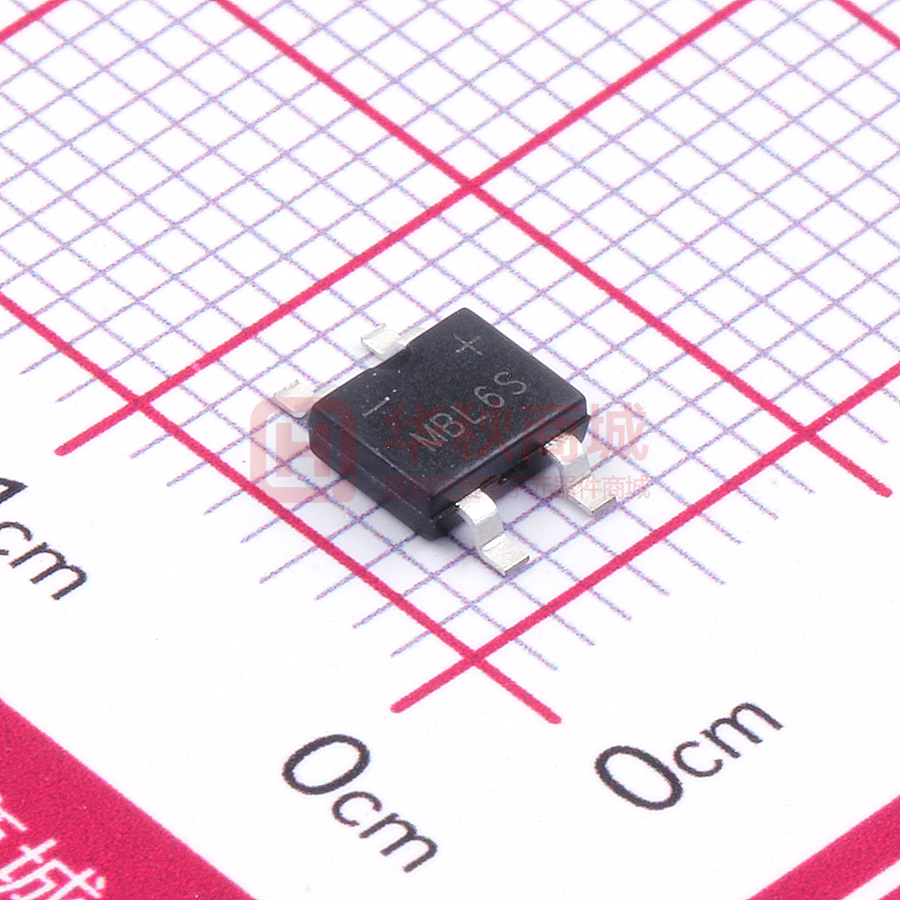

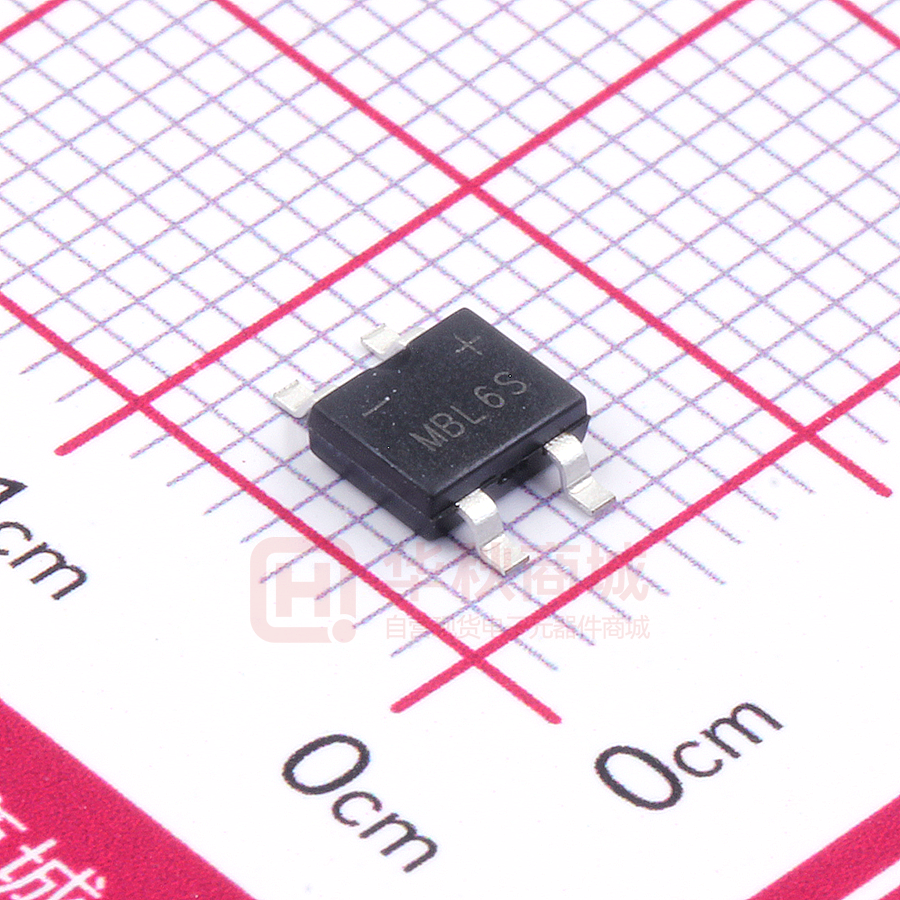

MBL6S

RoHS MBL1S THRU MBL10S COMPLIANT Bridge Rectifiers Features ● UL recognition, file #E313149 ● Ideal for automated placement ● High surge current capability ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications General purpose use in AC/DC bridge full wave rectification for power supply, lighting ballast, battery charger, home appliances, office equipment, and telecommunication applications. Mechanical Data ● Package: MBLS Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: As marked on body ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code Repetitive peak reverse voltage VRRM V IO A On alumina substrate Average rectified output current @60Hz sine wave, On glass-epoxi R-load, Ta=40℃ substrate Surge(non-repetitive)forward current @60Hz half sine wave, 1 cycle, Tj=25℃ MBL1S MBL2S MBL4S MBL6S MBL8S MBL10S MBL1S MBL2S MBL4S MBL6S MBL8S MBL10S 100 200 400 600 800 1000 0.8 0.5 IFSM A 30 It 2 A2S 3.7 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ -55 ~+150 Current squared time @1ms≤t≤8.3ms Tj=25℃,rating of per diode ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER Maximum instantaneous forward voltage drop per diode Maximum DC reverse current at rated DC blocking voltage per diode SYMBOL UNIT TEST CONDITIONS VF V IFM=0.4A IRRM μA VRM=VRRM MBL1S MBL2S MBL4S MBL6S MBL8S MBL10S 1.00 5 1/4 S-S074 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MBL1S THRU MBL10S ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL Between junction and ambient, On alumina substrate Between junction and ambient, On glassepoxi substrate Between junction and lead Thermal Resistance UNIT MBL1S MBL2S MBL4S RθJ-A RθJ-A MBL6S MBL8S MBL10S 76.0 ℃/W 134.0 RθJ-L 20.0 ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) MBL1S-MBL10S F1 Approximate 0.083 4000 8000 OUTER CARTON DELIVERY MODE QUANTITY(pcs) 64000 13’ reel ■ Characteristics (Typical) FIG2:Surge Forward Current Capability FIG1:Io-Ta Curve 1.2 Average Forward Output Current(A) 35 ② 1mm×1mm 20um 0.64mm ②.on alumina substrate 0.8 0.6 0.4 0.2 0 half sine wave 0 30 8.3ms 8.3ms 1cycle 25 non-repetitive Tj=25℃ 20 15 10 5 ①.on glass-epoxi substrate 0 0 40 80 120 Ambient Temperature(°C) ` 1 160 2 5 10 20 Number of Cycles 50 100 FIG4:Typical Reverse Characteristics FIG3: Forward Voltage 100 6 Tj=150℃ Instantaneous Reverse Current (uA) 4 Instantaneous Forward Current (A) IFSM 1.0 ① 1mm×1mm 35um Peak Forward Surge Current(A) soldering land conductor layer substrate thickness 2 1 0.5 Ta=25℃ 0.1 0.05 10 1.0 Tj=25℃ 0.1 0.02 0.01 0.01 0.4 0.6 0.8 1.0 1.2 Instantaneous Forward Voltage (V) 0 1.4 20 40 60 80 Percent of Rated Peak Reverse Voltage (%) 100 2/4 S-S074 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MBL1S THRU MBL10S ■ Outline Dimensions MBLS MBLS H I A B C J D Dim Min Max A 3.60 4.00 B C 6.40 7.00 2.20 2.60 D 4.50 4.90 E 1.30 1.50 F 1.40 1.60 G 0.56 0.84 H 0.15 0.35 I J E 0.20Max 0.70 1.10 F G Dimensions in millimeters ■ Suggested pad layout P2 Dim Min P1 6.00 P2 2.40 Q1 1.84 Q2 1.20 P1 Q1 Q2 Dimensions in millimeters 3/4 S-S074 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MBL1S THRU MBL10S Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S074 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
