RoHS
MBR0520 THRU MBR0540
COMPLIANT
Schottky Rectifier
Features
● VR 20V/30V/40V
● IFAV 0.5A
● For Surface Voltage and Extremely Low Thermal
Resisitance
● Moisture Sensitivity Level 1
Mechanical Data
● Package: SOD123
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Polarity: Cathode line denotes the cathode end
● Marking:
MBR0520
R2
MBR0530
R3

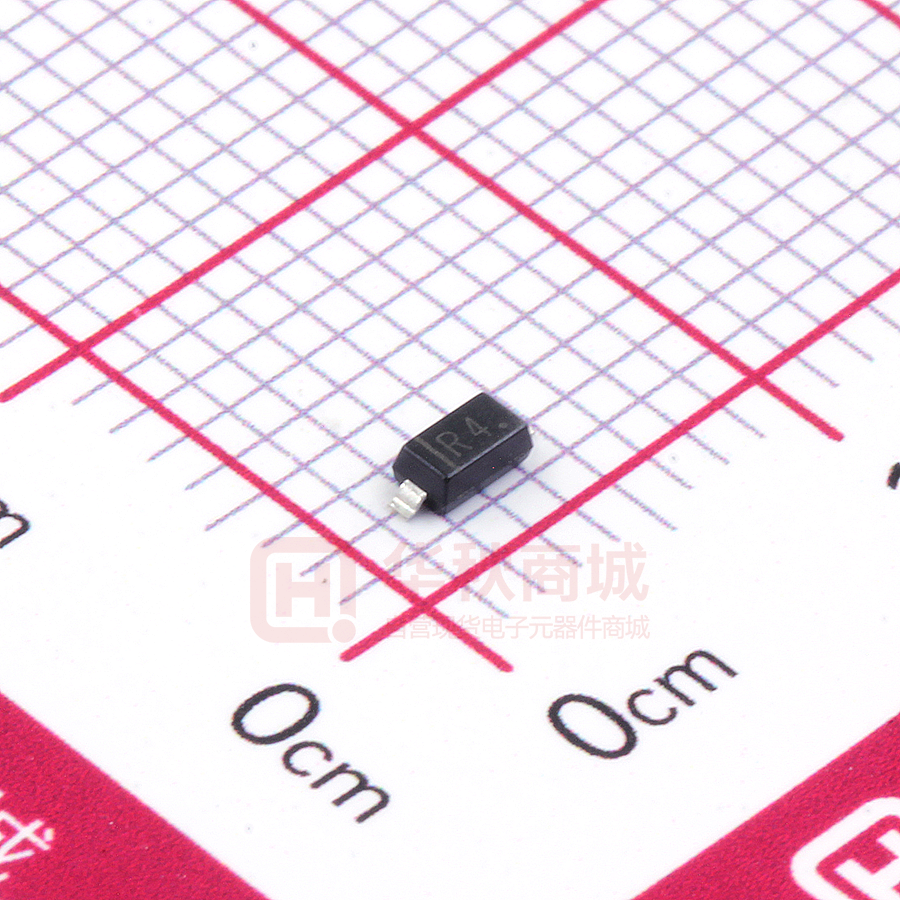

MBR0540
R4
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
Maximum Recurrent Peak Reverse Voltage
DC Blocking Voltage
VRRM
VR
Conditions
UNIT
V
V
IR=0.2mA
VALUE
MBR0520
20
MBR0530
30
MBR0540
40
MBR0520
20
MBR0530
30
MBR0540
40
Peak forward surge current
IFSM
A
Average forward current
IFAV
A
0.5
Power dissipation
Ptot
mW
410
Thermal Resistance from junction to ambient
(Note )
RθJA
℃/W
244
Maximum junction temperature
Tj
℃
-55 to +125
Tstg
℃
-55to +125
Storage temperature range
8.3ms, half sine
5.5A
Note:Device mounted on PCB
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
MBR0520
F2
Approximate 0.011
3000
30000
120000
7” reel
MBR0530
F2
Approximate 0.011
3000
30000
120000
7” reel
MBR0540
F2
Approximate 0.011
3000
30000
120000
7” reel
OUTER CARTON
DELIVERY MODE
QUANTITY(pcs)
1/5
S-S1734
Rev.1.2,09-May-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
MBR0520 THRU MBR0540
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
PARAMETER
Breakdown Voltage
Forward Voltage
Reverse Leakage Current
Typical Junction Capacitance
Symbol
VR
VF
IR
CJ
UNIT
Conditions
V
IR=0.2mA
V
IF=0.5A,
mA
pF
Value
MBR0520
20
MBR0530
30
MBR0540
40
MBR0520
0.45
MBR0530
0.55
MBR0540
0.55
VR=20V
MBR0520
VR=30V
MBR0530
VR=40V
MBR0540
VR=4V,f=1MHz
0.2
40
■ Characteristics (Typical)
MBR0520
2/5
S-S1734
Rev.1.2,09-May-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
MBR0520 THRU MBR0540
MBR0530
MBR0540
3/5
S-S1734
Rev.1.2,09-May-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
MBR0520 THRU MBR0540
■ Outline Dimensions
■ Soldering Footprint
Unit:inch
4/5
S-S1734
Rev.1.2,09-May-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
MBR0520 THRU MBR0540
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
5/5
S-S1734
Rev.1.2,09-May-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
