MMBT2222A
RoHS
COMPLIANT
NPN Transistor
Features
● Epoxy meets UL-94 V-0 flammability rating
● Halogen free available upon request by adding suffix ”HF”
● Moisure Sensitivity Level 1
● High Conductance
● Surface mount package ideally Suited for Automatic
Insertion
Mechanical Data

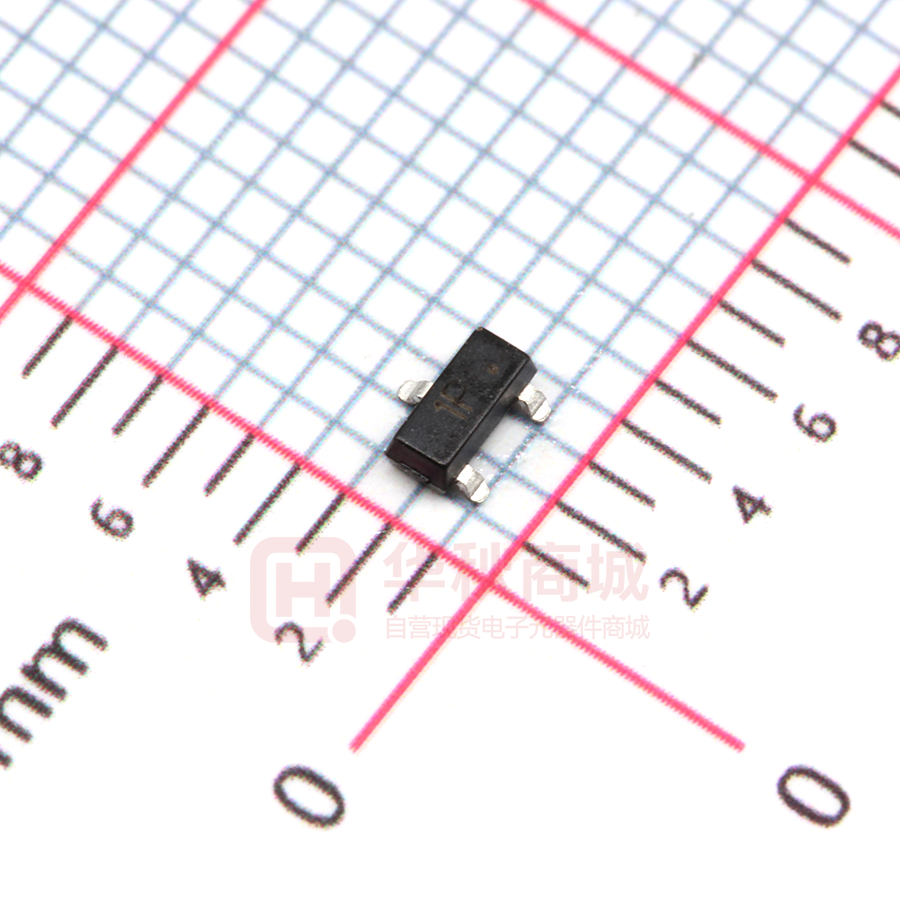

● Package: SOT-23
Molding compound meets UL 94 V-0 flammability rating,
RoHS-compliant, halogen-free
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Marking: 1P
■ Maximum Ratings (Ta=25℃ unless otherwise noted)
Item
Symbol
Unit
Value
Collector-Base Voltage
VCBO
V
75
Collector-Emitter Voltage
VCEO
V
40
Emitter-Base Voltage
VEBO
V
6
Collector Current
IC
mA
600
Collector Power Dissipation
Pc
mW
300
Junction Temperature
Tj
℃
150
Storage Temperature
Tstg
℃
-55 to +150
1/5
S-S1577
Rev.1.5,2-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
RoHS
MMBT2222A
COMPLIANT
■ Electrical Characteristics (Ta=25℃ unless otherwise noted)
Item
Symbol
Unit
Conditions
Min
Typ
Max
Collector-base breakdown voltage
VCBO
V
IC=10mA,IE=0
75
Collector-emitter breakdown voltage
VCEO*
V
IC =1mA,IB=0
40
Emitter-base breakdown voltage
VEBO
V
IE=100μA,IC=0
6
Collector-emitter cut-off current
ICEX
nA
VCE=60V, VBE=3V
10
Collector-base cut-off current
ICBO
nA
VCB=60V, IE =0
100
Emitter-base cut-off current
IEBO
nA
VEB=3 V, IC =0
100
DC current gain
hFE
VCE=1V,IC=0.1mA
20
hFE
VCE=1V,IC=1mA
40
hFE
VCE=1V,IC=10mA
80
hFE
VCE=1V,IC=150mA
100
hFE
VCE=1V,IC=500mA
40
Collector-emitter saturation voltage
VCE(sat)
V
IC=150mA,IB=15mA
Base-emitter saturation voltage
VBE(sat)
V
IC=150mA,IB=15mA
0.6
Transition frequency
fT
MHz
VCE=20V,IC=20mA,f=100MHz
300
Delay time
td
ns
Rise time
tr
ns
Storage time
ts
ns
300
0.3
1.2
15
VCC=30V, VBE(off)=-0.5V
IC=150mA,IB1=15mA
25
225
VCC=30V,IC=150mA,IB1=IB2=15mA
Fall time
tf
ns
60
■ Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY MODE
MMBT2222A
F2
Approximate 0.008
3000
30000
120000
7” reel
2/5
S-S1577
Rev.1.5,2-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
MMBT2222A
RoHS
COMPLIANT
■ Characteristics (Typical)
3/5
S-S1577
Rev.1.5,2-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
MMBT2222A
RoHS
COMPLIANT
■SOT-23 Package Outline Dimensions
■SOT-23 Soldering Footprint
4/5
S-S1577
Rev.1.5,2-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
MMBT2222A
RoHS
COMPLIANT
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
5/5
S-S1577
Rev.1.5,2-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
