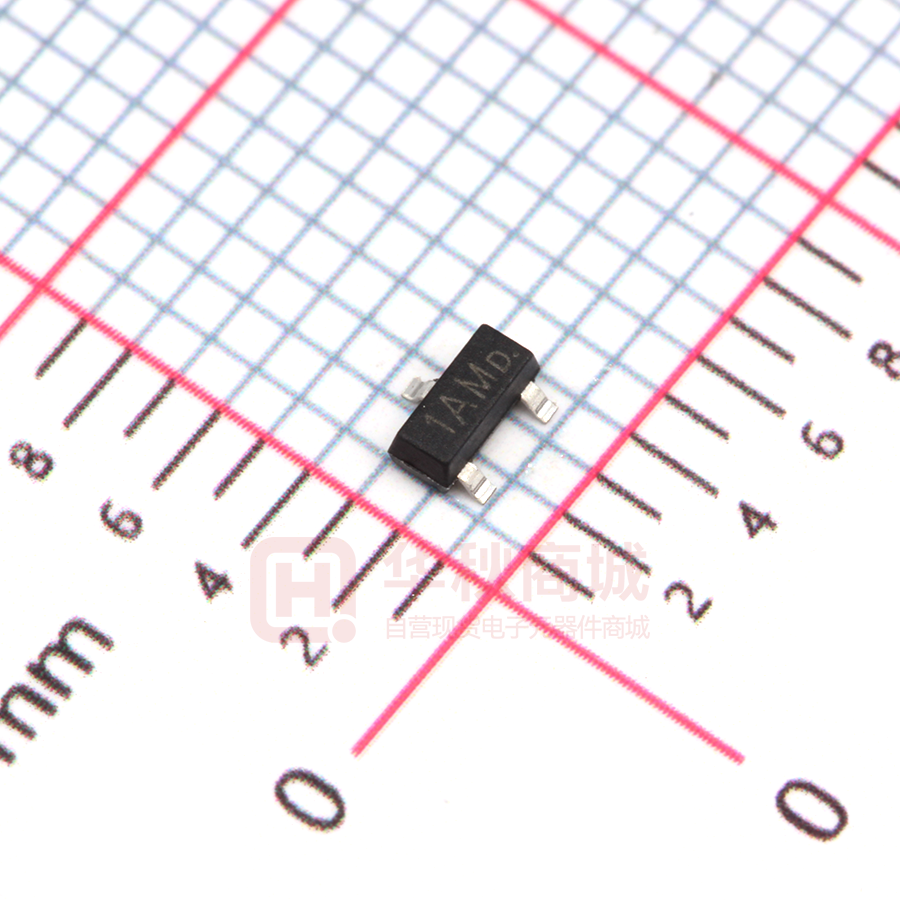

MMBT3904

RoHS MMBT3904   COMPLIANT   NPN General Purpose Amplifier Features ●Epoxy meets UL-94 V-0 flammability rating ●Halogen free available upon request by adding suffix ”HF” ●Moisure Sensitivity Level 1 ●Marking:1AM ■Off Characteristics Item Symbol Unit Conditions Value Collector-Emitter Voltage VCEO V IC=1.0mAdc, IB=0 40 Collector-Base Voltage VCBO V IC=10uAdc, IE=0 60 Emitter-Base Voltage VEBO V IE=10uAdc, IC=0 6.0 IC mA Collector-base Cut-off Current ICBO nAdc VCB=60Vdc 50 Collector-emitter Cut-off Current ICEX nAdc VCE=30Vdc,VBE=3Vdc 50 Collector Power Dissipation PC mW 350 Thermal Resistance Junction to Case RθJC ℃/W 185 Thermal Resistance Junction to Ambient RθJA ℃/W 357 TJ ℃ -55 to +150 TSTG ℃ -55 to +150 Collector Current Operation Junction Temperature Storage Temperature 200 *Pulse Width ≤300us, Duty Cycle≤2.0% 1/6 S-S1395 Rev. 1.3, 02-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMBT3904     ■On Chaaracteristics Item Symbol DC Current Gain Unit hFE Collector-Emitter Saturation Voltage VCE(sat) Conditions Min IC=0.1mAdc, VCE=1.0Vdc 40 IC=1.0mAdc, VCE=1.0Vdc 70 IC=10mAdc, VCE=1.0Vdc 100 IC=50mAdc, VCE=1.0Vdc 60 IC=100mAdc, VCE=1.0Vdc 30 VBE(sat) 300 IC=10mAdc, IB=1.0mAdc 0.2 IC=50mAdc, IB=5.0mAdc 0.3 Vdc IC=10mAdc, IB=1.0mAdc Base-Emitter Saturation Voltage Max 0.65 0.85 Vdc IC=50mAdc, IB=5.0mAdc 0.95 ■Small-signal Characteristics Item Symbol Unit Collector-base Output Capacitance Cobo pF VCB=5.0Vdc, f=1.0MHz, IE=0 4 Emitter-base Input Capacitance Cibo pF VEB=0.5Vdc, f=1.0MHz, IC=0 8 fT MHz NF dB Transition frequency Noise Figure Conditions Min IC=10mAdc, VCE=20Vdc, f=100MHz VCE=5.0V, f=10Hz to IC=100uA, RS=1.0kΩ Max 300 15.7kHz, 5 ■Switching Characteristics Item Symbol Unit Delay Time td ns Rise Time tr ns Storage Time ts ns Fall Time tf ns Conditions Value 35 VCC=3.0Vdc,VBE=0.5Vdc, IC=10mAdc, IB1=1.0mAdc 35 200 VCC=3.0Vdc,IC=10mAdc, IB1=IB2=1.0mAdc 50 ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE MMBT3904 F2 Approximate 0.008 3000 30000 120000 7” reel 2/6 S-S1395 Rev. 1.3, 02-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMBT3904     ■ Characteristics(Typical) 3/6 S-S1395 Rev. 1.3, 02-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMBT3904     ■SOT-23 Package Outline Dimensions ■SOT-23 Soldering Footprint 4/6 S-S1395 Rev. 1.3, 02-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMBT3904     ■Marking Information 5/6 S-S1395 Rev. 1.3, 02-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMBT3904     Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 6/6 S-S1395 Rev. 1.3, 02-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
