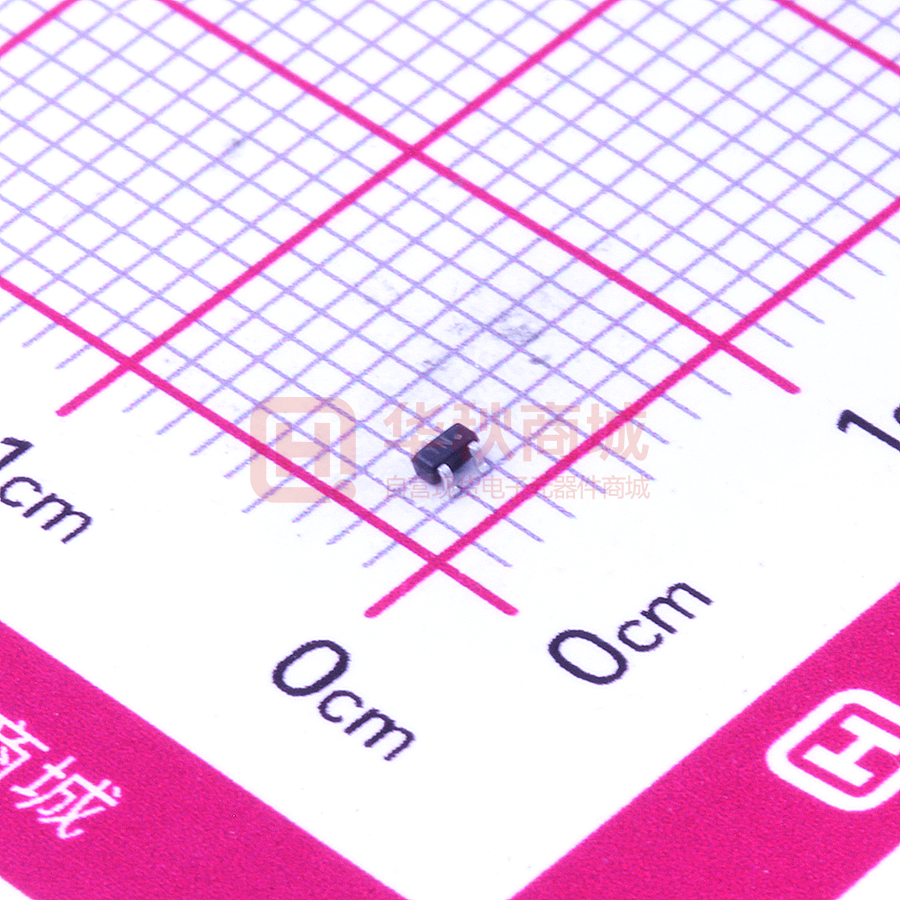

MMBT3904T

RoHS MMBT3904T  COMPLIANT   NPN General Purpose Amplifier Features ● Moisture Sensitivity Level 1 ● Surface mount package ideally Suited for Automatic Insertion ● Epoxy meets UL-94 V-0 flammability rating, halogen-free Mechanical Data ● Package: SOT-523 ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Marking: 1N ■Maximum Ratings (Ta=25℃ Unless otherwise specified） Item Symbol Unit Conditions Value Collector-Emitter Voltage VCEO V IC=1.0mAdc, IB=0 40 Collector-Base Voltage VCBO V IC=10uAdc, IE=0 60 Emitter-Base Voltage VEBO V IE=10uAdc, IC=0 6.0 Collector Current IC mA 200 Collector Power Dissipation PC mW 150 RθJA ℃/W 833 TJ ℃ -55 to +150 TSTG ℃ -55 to +150 Thermal Resistance Junction to Ambient Operation Junction Temperature Storage Temperature 1/5 S-S3258 Rev.1.0,10-Aug-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMBT3904T    ■Electrical Characteristics (Ta=25℃ unless otherwise specified) Item Symbol Unit Conditions Min Max Collector-Emitter Voltage VCEO V IC=1.0mAdc, IB=0 40 Collector-Base Voltage VCBO V IC=10uAdc, IE=0 60 Emitter-Base Voltage VEBO V IE=10uAdc, IC=0 6.0 Collector-base Cut-off Current ICBO nA VCB=30Vdc 50 Emitter-base cut-off current IEBO nA VEB=5Vdc 50 Collector-emitter Cut-off Current ICEX nA VCE=30Vdc,VEB=3Vdc 50 DC Current Gain hFE Collector-Emitter Saturation Voltage VCE(sat) IC=0.1mAdc, VCE=1.0Vdc 40 IC=1.0mAdc, VCE=1.0Vdc 70 IC=10mAdc, VCE=1.0Vdc 100 IC=50mAdc, VCE=1.0Vdc 60 IC=100mAdc, VCE=1.0Vdc 30 IC=10mAdc, IB=1.0mAdc 0.2 IC=50mAdc, IB=5.0mAdc 0.3 V IC=10mAdc, IB=1.0mAdc Base-Emitter Saturation Voltage 300 VBE(sat) 0.65 0.85 V IC=50mAdc, IB=5.0mAdc Collector-base Output Capacitance 0.95 Cobo pF VCB=5.0Vdc, f=1.0MHz, IE=0 4 Transition frequency fT MHz IC=10mA, VCE=20V, f=100MHz 300 Delay Time td ns VCC=3.0V,VBE=0.5V,IC=10mA, IB1=1.0mA 35 Rise Time tr ns Storage Time ts ns Fall Time tf ns 35 VCC=3.0V,IC=10mA, IB1=IB2=1.0mA 200 50 ■ Ordering Information (Example) Prefered P/N Packing Code Unit Weight(G) Minimum Package(Pcs) Inner Box Quantity(Pcs) Outer Carton Quantity(Pcs) Delivery Mode MMBT3904T F2 Approximate 0.0027 3000 30000 120000 7” reel 2/5 S-S3258 Rev.1.0,10-Aug-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMBT3904T    ■ Characteristics (Typical)       3/5 S-S3258 Rev.1.0,10-Aug-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMBT3904T    ■ SOT-523 Package Outline Dimensions ■ SOT-523 Suggested Pad Layout     4/5 S-S3258 Rev.1.0,10-Aug-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMBT3904T    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S3258 Rev.1.0,10-Aug-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
