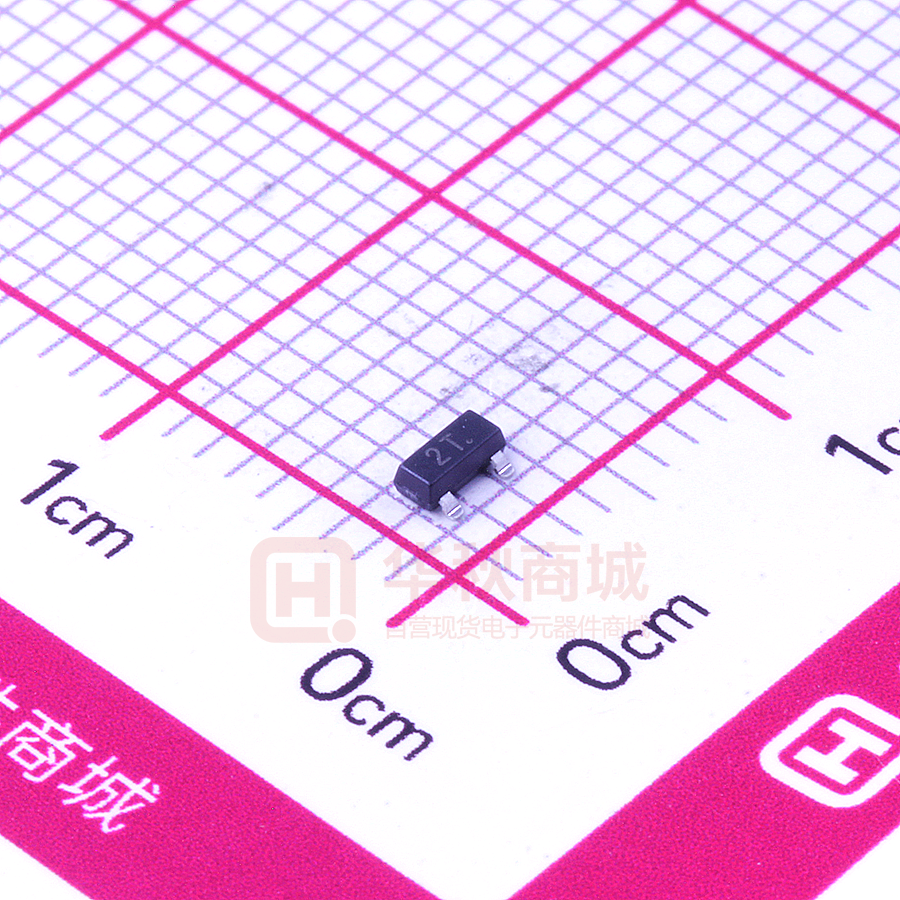

MMBT4403

RoHS MMBT4403   COMPLIANT   PNP General Purpose Amplifier Features ● Epoxy meets UL-94 V-0 flammability rating ● Halogen free available upon request by adding suffix ”HF” ● Moisture Sensitivity Level 1 ● Marking: 2T ■ Maximum Ratings (Ta=25℃ unless otherwise noted) Item Symbol Unit Conditions Value Collector-Base Voltage VCBO V -40 Collector-Emitter Voltage VCEO V -40 Emitter-Base Voltage VEBO V -5 Collector Current IC A -0.6 Collector Power Dissipation PC W 0.3 Operation Junction Temperature Tj ℃ 150 Tstg ℃ -55 to +150 Storage Temperature 1/5 S-S266 Rev. 2.3, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com RoHS MMBT4403   COMPLIANT   ■ Electrical Characteristics (Ta=25℃ unless otherwise noted) Item Symbol Unit Conditions Min Max Collector-base breakdown voltage VCBO V IC=-100μA,IE=0 -40 Collector-emitter breakdown voltage VCEO V IC =-1mA,IB=0 -40 Emitter-base breakdown voltage VEBO V IE=-100μA,IC=0 -5 Collector-Base cut-off current ICBO uA VCB=-35V,IE=0 -0.1 Collector-emitter cut-off current ICEO uA VCE=-35V, IB =0 -0.1 Emitter-base cut-off current IEBO uA VEB=-4V, IC=0V -0.1 DC current gain hFE V VCE=-2V,IC=-150mA Collector-emitter saturation voltage VCE(sat) V IC=-150mA,IB=-15mA -0.4 Base-emitter saturation voltage VBE(sat)* V IC=-150mA,IB=-15mA -0.95 100 300 ■ Electrical Characteristics (Ta=25℃ unless otherwise noted) Item Symbol Unit Transition frequency Ft MHz Delay time td ns Rise time tr ns Storage time ts ns Fall time tf ns Conditions Min VCE=-10V,IC=-20mA,f=100MHz Max 200 15 VCC=-3V,VEB=-2V IC=-150mA, IB1=-15mA 20 225 VCC=-3V,IC=-150mA, IB1= IB2=-15mA 30 ■ Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE MMBT4403 F2 Approximate 0.008 3000 30000 120000 7” reel 2/5 S-S266 Rev. 2.3, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMBT4403 RoHS   COMPLIANT   ■ Characteristics (Typical) 3/5 S-S266 Rev. 2.3, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMBT4403 RoHS   COMPLIANT   ■SOT-23 Package Outline Dimensions ■SOT-23 Soldering Footprint 4/5 S-S266 Rev. 2.3, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMBT4403 RoHS   COMPLIANT   Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S266 Rev. 2.3, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
