MMST3904

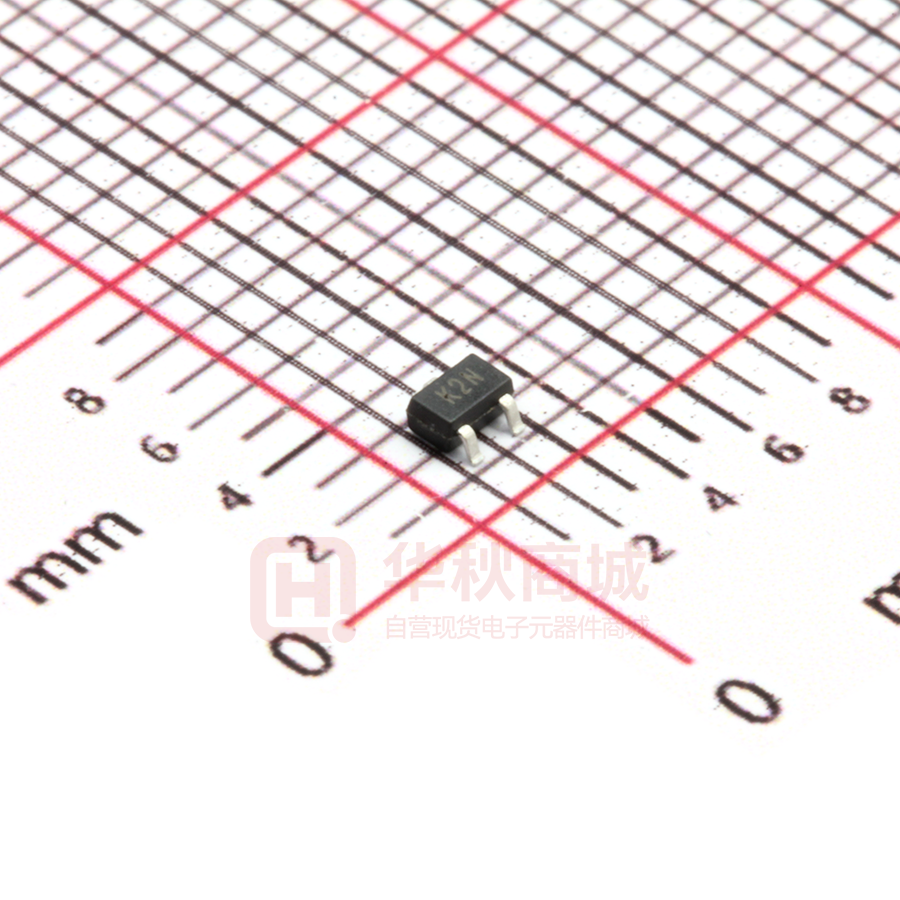

RoHS MMST3904   COMPLIANT   NPN General Purpose Amplifier Features ● Epoxy meets UL-94 V-0 flammability rating ● Halogen free available upon request by adding suffix ”HF” ● Moisture Sensitivity Level 1 ● High Conductance ● Surface Mount Package Ideally Suited for Automatic Insertion Mechanical Data ● Package: SOT-323 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Marking: K2N SOT‐323  ■Maximum Ratings (Ta=25℃ unless otherwise noted) Item Symbol Unit Conditions Value Collector-Base Voltage VCBO V IC=10μA,IE=0 60 Collector-Emitter Voltage VCEO V IC =1mA,IB=0 40 Emitter-Base Voltage VEBO V IE=10μA,IC=0 6 Collector Current IC mA 200 Collector Power Dissipation PC mW 200 Operation Junction Temperature Tj ℃ -55 to +150 Tstg ℃ -55 to +150 Storage Temperature 1/5 S-S1997 Rev.1.3,13-May-22 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com RoHS MMST3904   COMPLIANT   ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） Item Symbol Unit Conditions Min Max Collector-base breakdown voltage VCBO V IC=10μA,IE=0 60 Collector-emitter breakdown voltage VCEO V IC =1mA,IB=0 40 Emitter-base breakdown voltage VEBO V IE=10μA,IC=0 6 Collector-Base cut-off current ICBO nA VCB=30V,IE=0 100 Collector-Emitter cut-off current ICEX nA VCE=30V, VEB=3V, 50 DC current gain hFE VCE=1V,IC=100uA 40 hFE VCE=1V,IC=1mA 70 hFE VCE=1V,IC=10mA 100 hFE VCE=1V,IC=50mA 60 hFE VCE=1V,IC=100mA 30 300 Collector-emitter saturation voltage VCE(sat) V IC=50mA,IB=5mA 0.3 Base-emitter saturation voltage VBE(sat)* V IC=50mA,IB=5mA 0.95 ■Other Characteristics（Ta=25℃ Unless otherwise specified） Item Symbol Unit Transition frequency fT MHz Delay time td ns Rise time tr ns Storage time ts ns Fall time tf ns Conditions Min VCE=20V,IC=10mA,f=100MHz Max 300 35 VCC=3V,IC=100uA, VBE(off)=0.5V ,IB1=1mA 35 200 VCC=3V,IC=10mA, IB1=-IB2=1mA 50 ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE MMST3904 F2 Approximate 0.005 3000 30000 120000 7” reel 2/5 S-S1997 Rev.1.3,13-May-22 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMST3904 RoHS   COMPLIANT   ■Characteristics(Typical) 3/5 S-S1997 Rev.1.3,13-May-22 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMST3904 RoHS   COMPLIANT   ■SOT-323 Package Outline Dimensions ■SOT-323 Soldering Footprint 4/5 S-S1997 Rev.1.3,13-May-22 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MMST3904 RoHS   COMPLIANT   Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S1997 Rev.1.3,13-May-22 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
