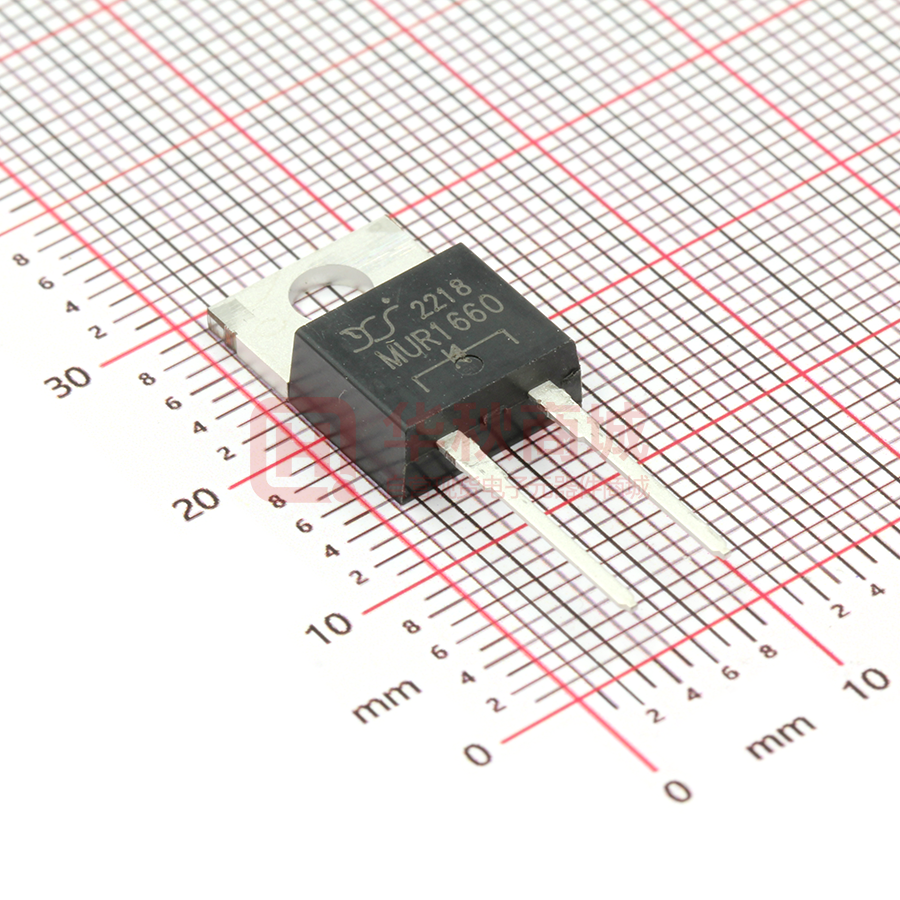

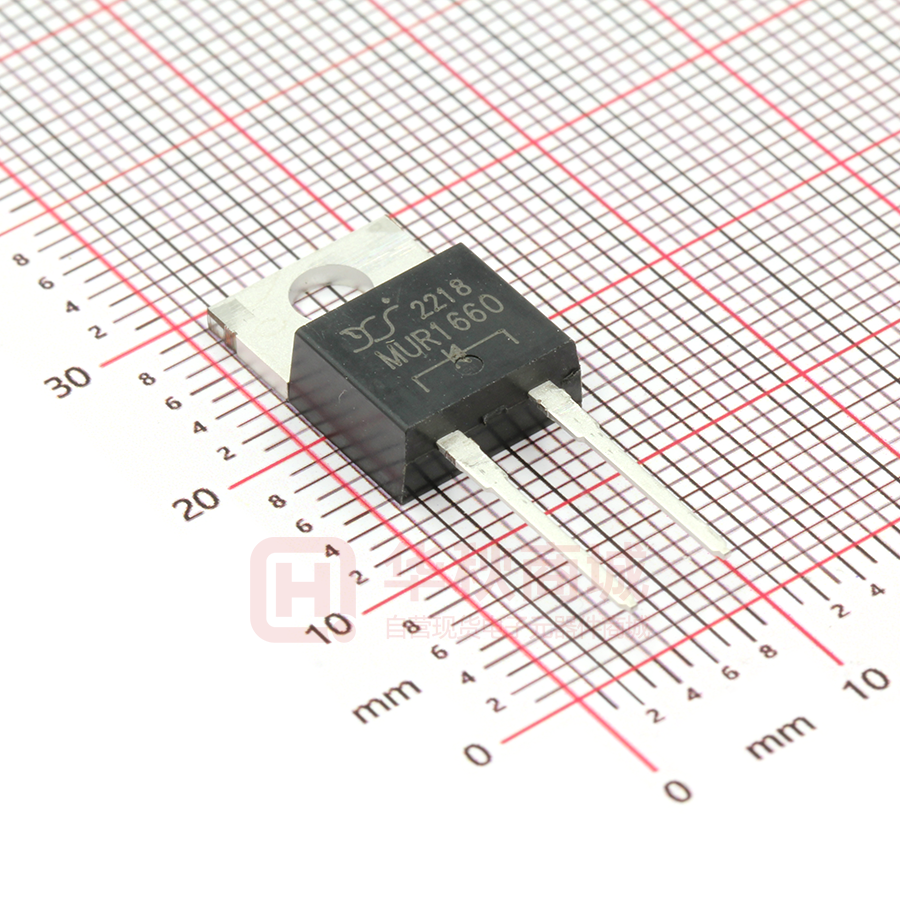

MUR1660

RoHS MUR1640 THRU MUR1660 COMPLIANT Ultra-Fast Recovery Rectifier Diodes Features ● High frequency operation ● High surge forward current capability ● High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance ● Guard ring for enhanced ruggedness and long term reliability ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data ● Package: TO-220AC Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 ● Polarity: As marked ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device Marking Code MUR1640 MUR1660 MUR1640 MUR1660 400 600 VRRM V Io A 16 IFSM A 150 It 2 A2s 94 Storage Temperature Tstg ℃ -55 ~ +150 Junction Temperature Tj ℃ -55 ~ +150 Repetitive Peak Reverse Voltage Average Rectified Output Current @60Hz half sine- wave, R-load, Tc(FIG.1) Surge(Non-repetitive)Forward Current @60Hz half sine-wave, 1 cycle, Ta=25℃ Current Squared Time @1ms≤t
