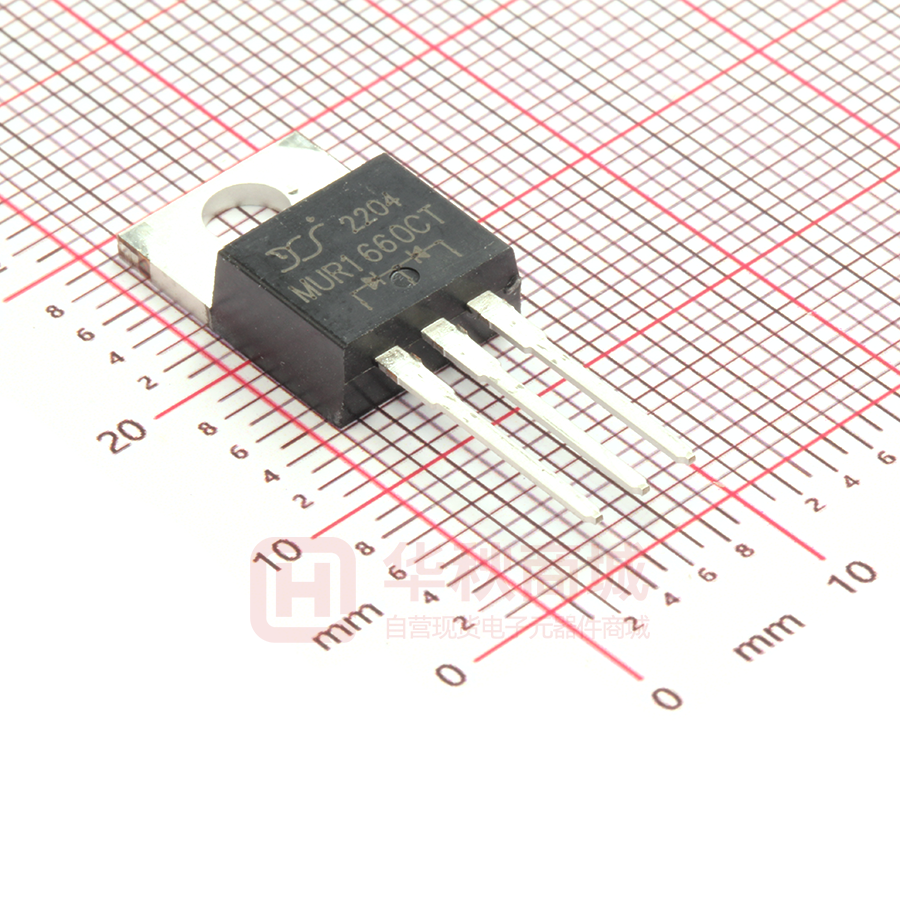

MUR1660CT

MUR1660CT

  • 厂商:

    YANGJIE(扬杰科技)

  • 封装:

    TO220AB

  • 描述:

    超快恢复二极管 1.45V@8A 10uA@600V 25ns Dual Common Cathode 16A -55℃~+150℃@(Tj) 600V TO-220AB-3

  • 数据手册
  • 价格&库存
MUR1660CT 数据手册
RoHS MUR1660CT  COMPLIANT   Ultra-Fast Recovery Diodes 8A*2 FRED Pt Features ● Adopt FRED chip ● Low forward Voltage drop ● Fast reverse recovery time ● High frequency operation ● High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance ● Guard ring for enhanced ruggedness and long term reliability Typical Applications Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data ● Package: TO-220AB Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 ● Polarity: As marked ■Maximum Ratings (Ta=25℃ Unless otherwise specified) PARAMETER MUR1660CT SYMBOL UNIT MUR1660CT Device marking code Repetitive Peak Reverse Voltage VRRM V 600 Average Rectified Output Current @60Hz sine wave, R-load, Tc(FIG.1) Surge(Non-repetitive)Forward Current @60Hz half sine-wave, 1 cycle, Ta=25℃ Current Squared Time @1ms≤t≤8.3ms Tj=25℃, IO A 16 IFSM A 100 I2t A2s 41 Storage Temperature Tstg ℃ -55 ~ +150 Junction Temperature Tj ℃ -55 ~ +150 Junction capacitance @4V,1MHz Cj pF 40 1/5 S-B1959 Rev.1.0,27-July-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MUR1660CT    ■Electrical Characteristics PARAMETER SYMBOL UNIT TEST CONDITIONS IFM=8.0A @Tj=25℃ VFM Instantaneous forward voltage drop per diode Min Typ Max - 1.45 1.6 1.15 1.3 - - 10 - 40 200 - 25 35 - 3.45 - - 6.25 - - 106.58 - - 283.26 - V IFM=8.0A @Tj=150℃ IRRM1 DC reverse current at rated DC blocking voltage per diode uA IRRM2 Reverse Recovery Time Trr Peak recovery current IRRM ns VRM=VRRM Tj=25℃ VRM=VRRM Tj=150℃ IF=0.5A IRM=1A IRR=0.25A Tj=25℃ Tj=25℃ A Tj=125℃ IF=8A di/dt=-200A/us VRM=200V Tj=25℃ Reverse recovery charge Qrr nC Tj=125℃ ■Thermal Characteristics (Ta=25℃ Unless otherwise specified) PARAMETER SYMBOL UNIT MUR1660CT Thermal Resistance Between junction and case RθJ-C ℃/W 2.0 Thermal Resistance Between junction and Air RθJ-A ℃/W 50 ■Ordering Information (Example) PREFERED P/N UNIT WEIGHT(g) MINIIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE MUR1660CT Approximate 1.88 50 1000 5000 Tube ■Characteristics (Typical) FIG2:Surge Forward Current Capability 28.0 140 Peak Forward Surge Current (A) Average Forward Output Current (A) FIG1:Io -Tc Curve 24.0 20.0 16.0 TC measure point 12.0 8.0 4.0 120 100 8.3ms Single Half Sine-Wave JEDEC Method 80 60 40 20 0 1 0 50 100 150 200 2 5 10 20 50 100 Number of Cycles Case Temperature(℃) 2/5 S-B1959 Rev.1.0,27-July-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MUR1660CT    FIG .4: Instantaneous R everse C haracteristics FIG3: Forward Voltage 100 Instantaneous Reverse Current (uA) Instantaneous Forward Current (A) 40 20 10 5.0 Tj=25 ℃ Tj=100℃ Tj=125℃ Tj=150℃ 2.0 1.0 0.5 0.2 0.1 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 Tj=150 ℃ 10 Tj=125 ℃ 1.0 Tj=100 ℃ 0.1 Tj=25 ℃ 0.01 2.0 0 Instantaneous Forward Voltage (V) 20 40 60 80 100 Percent of R ated Peak R everse Voltage (% ) FIG.5: Diagram of circuit and Testing wave form of reverse recovery time 50 Ω NONINDUCTIVE 10 Ω NONINDUCTIVE trr +0.5A (-) (+) DUT 0 PULSE GENERATOR (NOTE2) (-) 1Ω NONINDUCTIVE OSCILLOSCOPE (NOTE1) -0.25A (+) NOTES: 1.Rise Time=7ns max .Inpot Impedance=1M Ω 22pf 2.Rise Time=10ns max.Sourse Impedance=50Ω -1.0A 1cm SET TIME BASE FOR 5/10ns/cm 3/5 S-B1959 Rev.1.0,27-July-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MUR1660CT    ■Outline Dimensions TO-220AB TO-220AB A B C J K D E G I L H F D im ension s in m illim eters Dim Min Max A 9.95 10.35 B 2.55 2.95 C 3.8 4.0 D 14.95 15.25 E 3.75 4.25 F 0.26 0.5 G 0.68 0.94 H 13.4 13.9 I 2.35 2.65 J 4.38 4.78 K 1.14 1.4 L 2.37 2.79 4/5 S-B1959 Rev.1.0,27-July-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MUR1660CT    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-B1959 Rev.1.0,27-July-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
