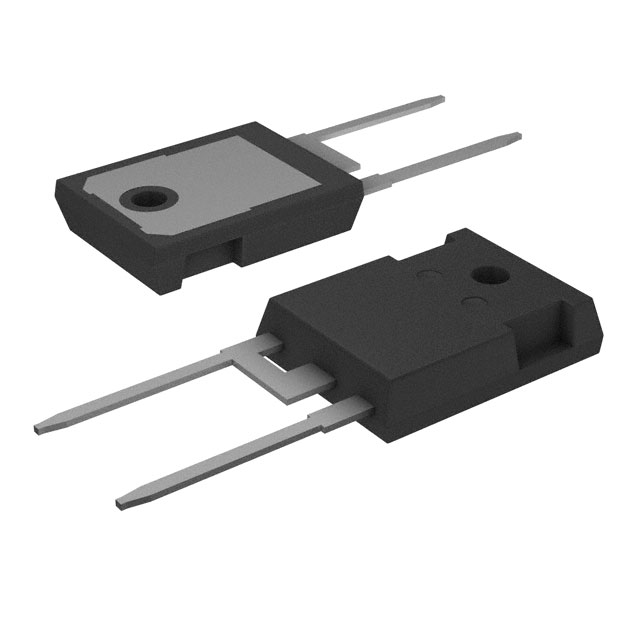

MUR3060P-B1-0000HF

RoHS MUR3060P  COMPLIANT   Ultra-Fast Recovery Diodes 30A FRED Pt Features ● Adopt FRED chip ● Low forward Voltage drop ● Fast reverse recovery time ● High frequency operation ● High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance ● Guard ring for enhanced ruggedness and long term reliability   Typical Applications ●Typical applications are in switching power supplies, . converters, freewheeling diodes, and reverse battery protection. Mechanical Data ● Package: TO-247AC Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 ● Polarity: As marked ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER MUR3060P SYMBOL UNIT MUR3060P Device marking code VRRM V 600 IO A 30 IFSM A 300 I2t A2s 373 Storage Temperature Tstg ℃ -55 ~ +150 Junction Temperature Tj ℃ -55 ~ +150 Junction capacitance @4V,1MHz Cj pF 195 Repetitive Peak Reverse Voltage Average Rectified Output Current @60Hz sine wave, R-load, Tc(FIG.1) Surge(Non-repetitive)Forward Current @60Hz half sine-wave, 1 cycle, Ta=25℃ Current Squared Time @1ms≤t≤8.3ms Tj=25℃， 1/4 S-B1035 Rev.1.0, 12-Oct-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MUR3060P    ■Electrical Characteristics PARAMETER SYMBOL UNIT TEST CONDITIONS IFM=30.0A @Tj=25℃ Instantaneous forward voltage drop per diode VFM Min Typ Max - 1.45 1.6 1.25 1.45 - - 10 - 65 300 - 38 50 - 5.49 - - 13 - - 309.52 - - 1165.74 - V IFM=30.0A @Tj=150℃ VRM=VRRM Tj=25℃ IRRM1 DC reverse current at rated DC blocking voltage per diode uA VRM=VRRM Tj=150℃ IF=0.5A IRM=1A IRRM2 Reverse Recovery Time Trr ns Peak recovery current IRRM A IRR=0.25A Tj=25℃ Tj=25℃ Tj=125℃ IF=30A di/dt=-200A/us VRM=200V Tj=25℃ Reverse recovery charge Qrr nC Tj=125℃ ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） SYMBOL UNIT MUR3060P Between junction and case RθJ-C ℃/W 1.0 Between junction and Air RθJ-A ℃/W 50 PARAMETER Thermal Resistance ■ Characteristics(Typical) FIG2:Surge Forward Current Capability FIG1:Io -Tc Curve 30.0 300 Peak Forward Surge Current (A) Average Forward Output Current (A) 27.0 24.0 21.0 18.0 15.0 12.0 9.0 6.0 3.0 0 250 200 8.3ms Single Half Sine-Wave JEDEC Method 150 100 50 0 0 50 100 150 Case Temperature（℃） 1 200 2 5 10 20 50 100 Number of Cycles 2/4 S-B1035 Rev.1.0, 12-Oct-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MUR3060P    FIG3: Forward Voltage FIG.4: Instantaneous Reverse Characteristics 100 Instantaneous Reverse Current (uA) Instantaneous Forward Current (A) 40 20 10 5.0 Tj=25℃ Tj=100℃ Tj=125℃ Tj=150℃ 2.0 1.0 0.5 0.2 0.1 Tj=150 ℃ 10 Tj=125 ℃ 1.0 Tj=100 ℃ 0.1 Tj=25 ℃ 0.01 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 0 2.0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (V) FIG.5: Diagram of circuit and Testing wave form of reverse recovery time 50 Ω NONINDUCTIVE 10 Ω NONINDUCTIVE trr +0.5A (-) (+) DUT 0 PULSE GENERATOR (NOTE2) (-) 1Ω NONINDUCTIVE OSCILLOSCOPE (NOTE1) -0.25A (+) NOTES: 1.Rise Time=7ns max .Inpot Impedance=1M Ω 22pf 2.Rise Time=10ns max.Sourse Impedance=50Ω -1.0A 1cm SET TIME BASE FOR 5/10ns/cm 3/4 S-B1035 Rev.1.0, 12-Oct-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MUR3060P    ■ Outline Dimensions TO247-AC Dim Min A 4.80 Max 5.20 A1 A2 2.21 2.61 1.85 2.15 b 1.11 1.36 b2 1.91 2.21 c 0.51 0.75 D 20.70 21.30 D1 16.25 16.85 E 15.50 16.10 E1 13.00 13.60 E2 4.80 5.20 E3 2.30 2.70 e L 10.88BSC 19.62 20.22 L1 - 4.30 φP 3.40 3.80 φP1 - 7.30 S 6.15BSC Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-B1035 Rev.1.0, 12-Oct-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
