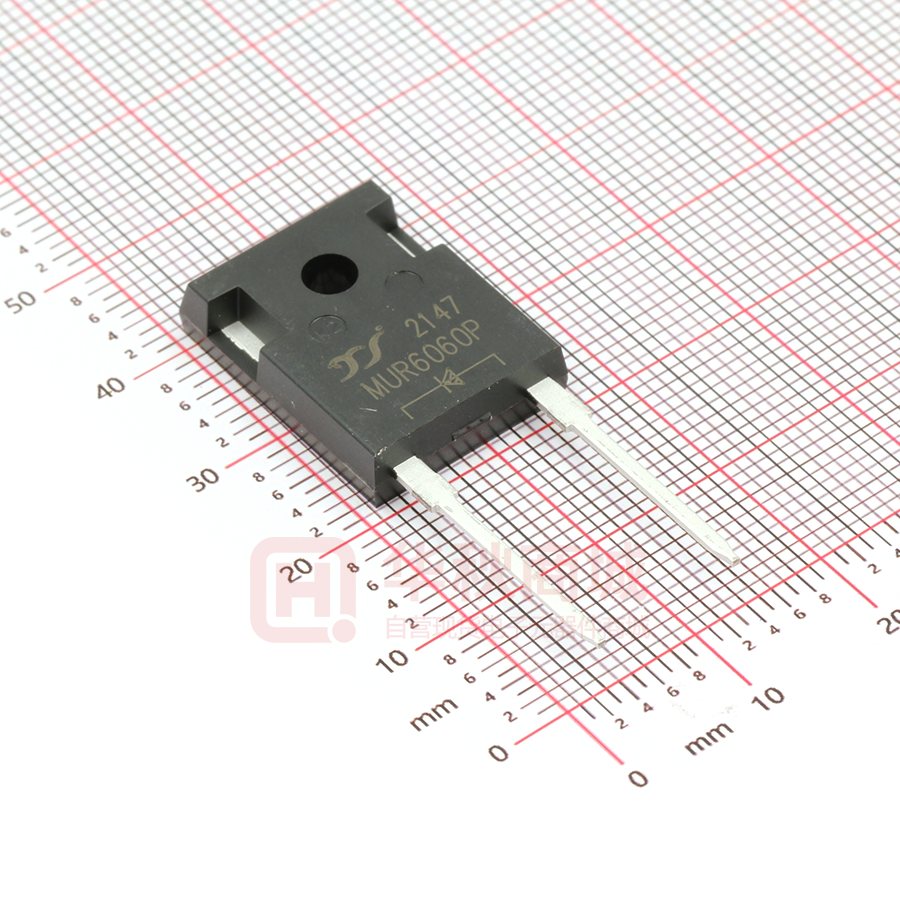

MUR6060P

RoHS MUR6060P  COMPLIANT   Ultra-Fast Recovery Rectifier Diodes Features ● High frequency operation ● High surge forward current capability ● High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance ● Guard ring for enhanced ruggedness and long term reliability ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data ● Package: TO-247AD-2L Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 ● Polarity: As marked ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL MUR6060P UNIT MUR6060P Device marking code VRRM V 600 Average Rectified Output Current @60Hz half sinewave, R-load, Tc(FIG.1) Io A 60 Surge(Non-repetitive)Forward Current @60Hz half sine-wave, 1 cycle, Ta=25℃ IFSM A 350 I2t A s. 510 Storage Temperature Tstg ℃ -55 ~ +175 Junction Temperature Tj ℃ -55 ~ +175 Repetitive Peak Reverse Voltage Current Squared Time @1ms≤t≤8.3ms Tj=25℃ 2 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Maximum instantaneous forward voltage drop per diode VFM V IFM=60.0A uA VRM=VRRM Ta=25℃ VRM=VRRM Ta=125℃ Maximum DC reverse current at rated DC blocking voltage per diode Reverse Recovery Time IRRM1 IRRM2 Trr ns MUR6060P TEST CONDITIONS IF=0.5A IRR=0.25A 1.7 15 500 IRM=1A 75 ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER Thermal Resistance Between junction and case SYMBOL UNIT MUR6060P RθJ-C ℃/W 0.8 1/4 S-B992 Rev.1.0,29-Aug-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MUR6060P    ■Ordering Information (Example) PREFERED P/N UNIT WEIGHT(g) MINIIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE MUR6060P Approximate 6.0 33 330 1980 Tube ■Characteristics (Typical) FIG1:Io -Tc Curve FIG2:Surge Forward Current Capability 360 60.0 Peak Forward Surge Current (A) 42.0 IN DC 36.0 30.0 24.0 18.0 12.0 6.0 0 8.3ms Single Half Sine-Wave JEDEC Method 300 48.0 50 0 100 150 Case Temperature（℃） 240 180 120 60 0 200 1 2 FIG3: Forward Voltage 20 100 FIG4: Typical Reverse Characteristics 100 60 40 Tj=125℃ 20 10 5.0 2.0 1.0 0.5 0.2 0.1 10 Number of Cycles Instantaneous Reverse Current (uA) Average Forward Output Current (A) 54.0 Instantaneous Forward Current (A)                                                                                             Ta=25℃ 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 10 1.0 Tj=25℃ 0.1 0.01 2.0 0 Instantaneous Forward Voltage (V) 20 40 60 80 Percent of Rated Peak Reverse Voltage (%) 100 2/4 S-B992 Rev.1.0,29-Aug-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MUR6060P    FIG.5 Diagram of circuit and Testing wave form of reverse recovery time 10Ω 50Ω +0.5A (-) (+) 0 (-) -0.25A (+) 1Ω =7 =10 . -1.0A =1 Ω 22 Ω 1cm SET TIME BASE FOR 5/10ns/cm   ■Outline Dimensions TO-247-2L Dim Min A 4.80 Max 5.20 A1 A2 2.21 2.61 1.85 2.15 b 1.11 1.36 b2 1.91 2.21 c 0.51 0.75 D 20.70 21.30 D1 16.25 16.85 E 15.50 16.10 E1 13.00 13.60 E2 4.80 5.20 E3 2.30 2.70 e L 10.88BSC 19.62 20.22 L1 - 4.30 φP 3.40 3.80 φP1 - 7.30 S 6.15BSC 3/4 S-B992 Rev.1.0,29-Aug-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MUR6060P    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-B992 Rev.1.0,29-Aug-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
