MURS360

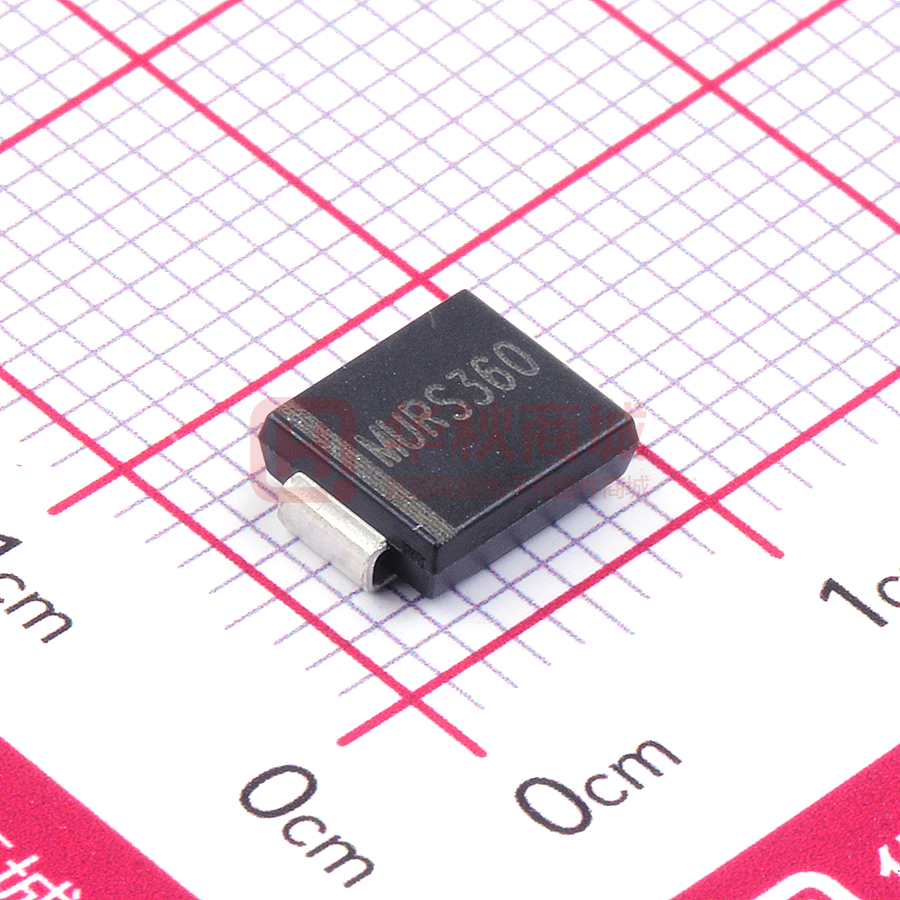

RoHS MURS360  COMPLIANT   Surface Mount Ultrafast Rectifier Diode Features ● Ultrafast reverse recovery time ● Low leakage current ● Low switching losses, high efficiency ● High forward surge capability ● Solder dip 260 °C max. 10 s, per JESD 22-B106 Typical Applications For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication. Mechanical Data ● Package: DO-214AB (SMC) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Color band denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT MURS360 MURS360 Device marking code VRRM V 600 IO A 3.0 Forward Surge Current (Non-repetitive) @60Hz Half-sine wave,1 cycle, Ta=25℃ IFSM A 100 Storage Temperature Tstg ℃ -55 ~+150 Junction Temperature Tj ℃ -55 ~+150 Repetitive Peak Reverse Voltage Average Rectified Output Current @60Hz sine wave, Resistance load, TL (FIG.1) ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） SYMBOL UNIT TEST CONDITIONS MURS360 Maximum instantaneous forward voltage drop per diode VF V IFM=3.0A 1.25 Maximum reverse recovery time TRR ns IF=0.5A,IR=1.0A, Irr=0.25A 50 Ta=25℃ 5 IR μA Ta=125℃ 50 PARAMETER Maximum DC reverse current at rated DC blocking voltage per diode 1/4 S-S371 Rev. 2.3, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MURS360    ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER Thermal Resistance SYMBOL Junction to ambient RθJ-A Junction to lead RθJ-L UNIT MURS360 481) ℃/W 141) Note(1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.6" x 0.6" (16 mm x 16 mm) copper pad areas ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE MURS360 F1 Approximate 0.248 3000 6000 42000 13” reel ■ Characteristics(Typical) FIG.1: Io-TL Curve FIG.2: Forward Surge Current Capadility 120 3.0 Peak Forward Surge Current (A) Average Forward Output Current (A) 3.5 2.5 2.0 1.5 1.0 Resistive or Inductive Load P.C.B. Mounted on 0.6"×0.6" (16mm×16mm)Copper Pad Areas 0.5 0 0 25 50 100 8.3ms Single Half Sine Wave 80 60 40 20 75 100 125 0 150 1 10 Lead Temperature (℃) FIG.4: Typical Reverse Characteristics FIG.3: Typical Forward Voltage 100 100 Ta=125℃ Instantaneous Reverse Current (uA) Instantaneous Forward Current(A) 100 Number of Cycles 10 3.0 1.0 0.1 0.01 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 10 1.0 Ta=25℃ 0.1 0.01 0.001 Instantaneous Forward Voltage(V) 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) 2/4 S-S371 Rev. 2.3, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MURS360    FIG.5: Diagram of circuit and Testing wave form of reverse recovery time 10 Ω NONINDUCTIVE 50 Ω NONINDUCTIVE trr +0.5A (-) (+) DUT 0 PULSE GENERATOR (NOTE2) (-) 1Ω NONINDUCTIVE OSCILLOSCOPE (NOTE1) -0.25A (+) NOTES: 1.Rise Time=7ns max .Inpot Impedance=1M Ω 22pf 2.Rise Time=10ns max.Sourse Impedance=50Ω -1.0A 1cm SET TIME BASE FOR 5/10ns/cm ■ Outline Dimensions DO-214AB(SMC) DO-214AB (SMC) Dim Min Max A 6.60 7.11 B 2.85 3.27 C 5.59 6.22 D 7.75 8.13 E 1.99 2.61 F 0.15 0.31 G 0.76 1.52 H 0.10 0.20 Dimensions in millimeters ■ Suggested pad layout P2 Q1 Dim Typ P1 9.9 P2 3.84 Q1  3.03 Q2  3.82 Q2 P1 Dimensions in millimeters 3/4 S-S371 Rev. 2.3, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MURS360    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S371 Rev. 2.3, 10-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
