RoHS
RL201G THRU RL207G
COMPLIANT
General Purpose Rectifier
Features
● High efficiency
● High current capability
● High reliability
● High surge current capability
● Low power loss
● Glass passivated chip junction
● Solder dip 275 °C max. 7 s, per JESD 22-B106
Typical Applications
For use in general purpose rectification of power
supplies, inverters, converters, and freewheeling diodes for
consumer, and telecommunication.
Mechanical Data

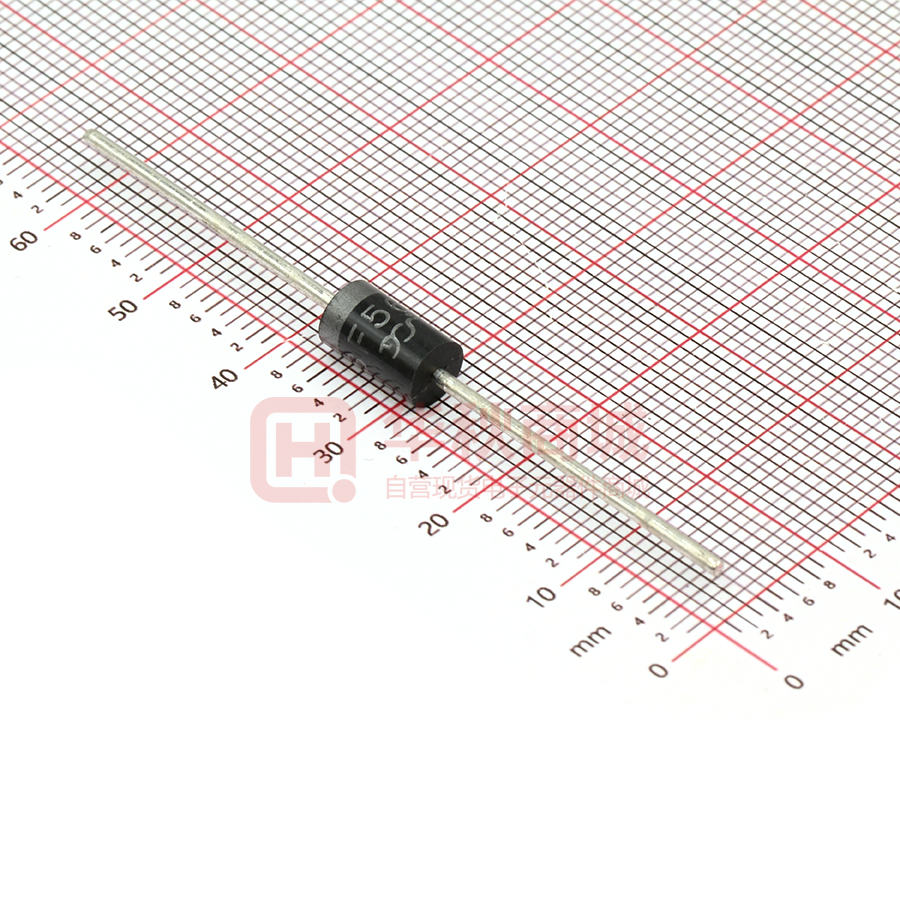

● Package: DO-204AC(DO-15)
Molding compound meets UL 94 V-0 flammability rating,
RoHS-compliant
● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102
● Polarity:Color band denotes cathode end
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Device marking code
RL201G
RL202G
RL203G
RL204G
RL205G
RL206G
RL207G
RL201G
RL202G
RL203G
RL204G
RL205G
RL206G
RL207G
Maximum Repetitive Peak Reverse Voltage
VRRM
V
50
100
200
400
600
800
1000
Maximum RMS Voltage
VRMS
V
35
70
140
280
420
560
700
Maximum DC blocking Voltage
VDC
V
50
100
200
400
600
800
1000
Average Forward Current
@60Hz sine wave, Resistance load, Ta =60℃
IF(AV)
A
IFSM
A
Forward Surge Current (Non-repetitive)
@60Hz Half-sine wave,1 cycle, Tj=25℃
2.0
70
Forward Surge Current (Non-repetitive)
@1ms, square wave, 1 cycle, Tj=25℃
120
Current squared time
@1ms≤t8.3≤ms Tj=25℃,Rating of per diode
I2t
A2s
20.335
Typical junction capacitance
@Measured at 1MHz and Applied Reverse
Voltage of 4.0 V.D.C
Cj
pF
13
Storage Temperature
Tstg
℃
-55 ~ +150
Junction Temperature
Tj
℃
-55 ~ +150
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
PARAMETER
RL201G
RL202G
RL203G
RL204G
SYMBOL
UNIT
TEST CONDITIONS
Maximum instantaneous
forward voltage drop per diode
VF
V
IFM=2.0A
1.1
Maximum DC reverse current at
rated DC blocking voltage per
diode
μA
Tj =25℃
2.5
IR
Tj =125℃
50
RL205G
RL206G
RL207G
1/4
S-A133
Rev.2.2,30-Jan-21
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
RL201G THRU RL207G
■Thermal Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Typical Thermal Resistance
RθJ-A
℃/W
RL201G
RL202G
RL203G
RL204G
RL205G
RL206G
RL207G
50
■Ordering Information (Example)
PREFERED P/N
PACKAGE CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY MODE
RL201G~RL207G
D1
Approximate 0.38
3000
3000
30000
Tape
RL201G~RL207G
C1
Approximate 0.38
500
500
25000
Bulk
■ Characteristics (Typical)
FIG.1: Io-Ta Curve
FIG.2: Forward Surge Current Capability
Peak Forward Surge Current (A)
100
1.6
1.2
0.8
S
Average Forward Output Current (A)
2.0
0.4
0
ingle Phase
Half Wave 60HZ
Resistive or
Inductive Load
0.375''(9.5mm)
Lead Length
80
8.3ms Single Half Sine Wave
JEDEC Method
60
40
20
0
0
50
100
1
150
2
4
6
8 10
20
40
60 80 100
Number of Cycles
Ambient Temperature (℃)
FIG.3: Forward Voltage
FIG.4: Typical Reverse Characteristics
20
100
Instantaneous Reverse Current (uA)
Instantaneous Forward Current (A)
10
4.0
2.0
1.0
0.4
0.2
0.1
TJ=25℃
Pulse width=300us
1% Duty Cycle
10
Tj=125℃
Tj=100℃
1.0
0.1
Tj=25℃
0.01
0.02
0.01
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0.001
2.0
Instantaneous Forward Voltage (V)
0
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
2/4
S-A133
Rev.2.2,30-Jan-21
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
RL201G THRU RL207G
■ Outline Dimensions
DO-204AC(DO-15)
DO-204AC(DO-15)
Dim
Min
Max
A
5.80
7.60
B
C
2.60
3.60
25.4
/
D
0.70
0.90
Dimensions in millimeters
3/4
S-A133
Rev.2.2,30-Jan-21
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
RL201G THRU RL207G
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-A133
Rev.2.2,30-Jan-21
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
