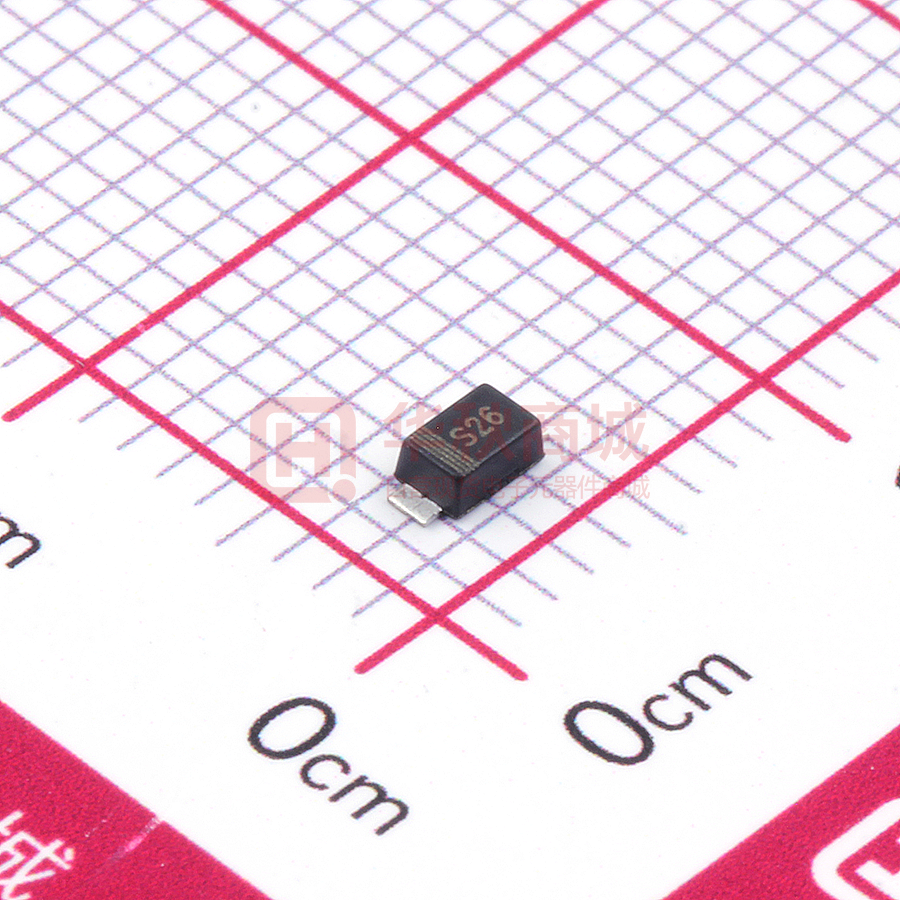

RoHS S22 THRU S220  COMPLIANT   Surface Mount Schottky Rectifier Features ● Low profile package ● Ideal for automated placement ● Guardring for overvoltage protection ● Low power losses, high efficiency ● High forward surge capability ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. Mechanical Date ● Package: SOD-123FL Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end 　 ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code S22 S23 S24 S25 S26 S28 S210 S215 S220 S22 S23 S24 S25 S26 S28 S210 S215 S220 20 30 40 50 60 80 100 150 200 S215 S220 VRRM V IO A 2.0 Surge(non-repetitive)forward current @60Hz half-sine wave,1 cycle, Tj=25℃ IFSM A 40 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ Repetitive peak reverse voltage Average rectified output current @60Hz sine wave, Resistance load, Ta (FIG.1) -55 ~+125 -55 ~+150 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Maximum instantaneous forward voltage drop per diode VF V Maximum DC reverse current at rated DC blocking voltage per diode @ VRM=VRRM IRRM mA TEST CONDITIONS S22 IFM=2.0A S23 S24 0.5 S25 S26 0.7 S28 S210 0.85 0.9 Ta=25℃ 0.50 0.10 Ta=100℃ 10 5 1/4 S-S085 Rev. 2.3, 31-Jan-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com S22 THRU S220    ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL S22 UNIT S23 S24 S25 S26 S210 S215 S220 1) RθJ-A Thermal Resistance S28 70 ℃/W 1) RθJ-L 20 Note： (1) Thermal resistance between junction and ambient and between junction and lead mounted on P.C.B with 3mm*3mm copper pad areas. ■ Characteristics (Typical) FIG1:Io-TL Curve FIG2: Surge Forward Current Capability 2.4 Average Forward Output（A） 2.0 Peak Forward Surge Current（A） 70 S25-S220 1.6 S22-S24 1.2 0.8 Single Phase Half Wave 60Hz Resistive Load 0.4 0 40 0 80 120 Lead Temperature （℃ ） 60 50 40 30 20 10 0 160 FIG3: Forward Voltage 8.3ms Single Half Sine Wave JEDEC Method 1 100 6 2 5 10 20 Number of Cycles 50 FIG4：Typical Reverse Characteristics S22-S26 S28-S220 S25~S26 S22~S24 10 Instantaneous Reverse Current(mA) Instantaneous Forward Current(A) 4 2 S215~S220 1 0.5 Tj=100℃ 1.0 S28~S210 0.1 0.05 0.1 0.01 Tj=25℃ 0.02 0.01 100 Ta=25 ℃ 0.2 0.4 0.6 0.8 1.0 Instantaneous Forward Voltage(V) 1.2 0.001 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage(%) 2/4 S-S085 Rev. 2.3, 31-Jan-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com S22 THRU S220    ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE S22 THRU S220  F1 Approximate 0.0169 3000 15000 120000 7” reel S22 THRU S220  F2 Approximate 0.0169 2500 12500 100000 7” reel S22 THRU S220  F3 Approximate 0.0169 10000 30000 210000 13” reel S22 THRU S220  F4 Approximate 0.0169 3000 27000 108000 7” reel S22 THRU S220  F5 Approximate 0.0169 10000 20000 160000 13” reel S22 THRU S220  F6 Approximate 0.0169 3000 12000 60000 7” reel ■ Outline Dimensions SOD-123FL SOD-123FL A B D E F C H Dim Min Max A 1.60 1.90 B 0.90 1.10 C 2.55 2.85 D 3.60 3.90 E 1.00 1.20 F 0.40 0.90 G 0.10 0.25 H 0.02 0.05 G Dimensions in millimeters ■ Suggested pad layout SOD-123FL P2 Q1 Q2 Dim Millimeters P1 3.90 P2 1.90 Q1  1.00 Q2  1.50 P1 Dimensions in millimeters 3/4 S-S085 Rev. 2.3, 31-Jan-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com S22 THRU S220    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S085 Rev. 2.3, 31-Jan-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
