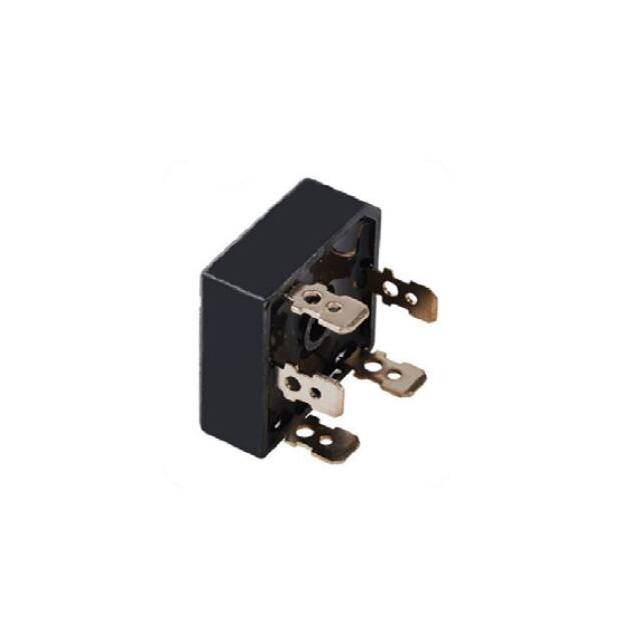

SKBPC3516-A1-0000

RoHS SKBPC3504 THRU SKBPC3516  COMPLIANT   Three Phase Bridge Rectifiers ~ Features ● UL recognition, file #E230084 ● Glass passivated chip ● High surge current capability ● Low thermal resistance ● Solder dip 275 °C max. 7 s, per JESD 22-B106 +  Typical Applications ‐ General purpose use in AC/DC bridge full wave rectification for power supply, home appliances, office equipment, industrial automation applications. ~ Mechanical Data ● Package: SKBPC ~ Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B10 ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOLUNIT SKBPC3504 SKBPC3506 SKBPC3508 SKBPC3510 SKBPC3512 SKBPC3514 SKBPC3516 SKBPC3504 SKBPC3506 SKBPC3508 SKBPC3510 SKBPC3512 SKBPC3514 SKBPC3516 Device marking code VRRM V IO A IFSM A 425 I2t A2S 750 Storage Temperature Tstg ℃ -55 ~+150 Junction Temperature Tj ℃ -55 ~+150 Dielectric Strength, Terminals to case，AC 1 minute Vdis KV 2.5 Mounting Torque TOR kgꞏcm 10 Repetitive Peak Reverse Voltage Average Rectified Output Current @60Hz sine wave, R-load, With heatsink Tc=55℃ Surge(Non-repetitive)Forward Current @60HZ Half- sine Wave, 1 cycle, Ta=25℃ Current Squared Time @1ms≤t
