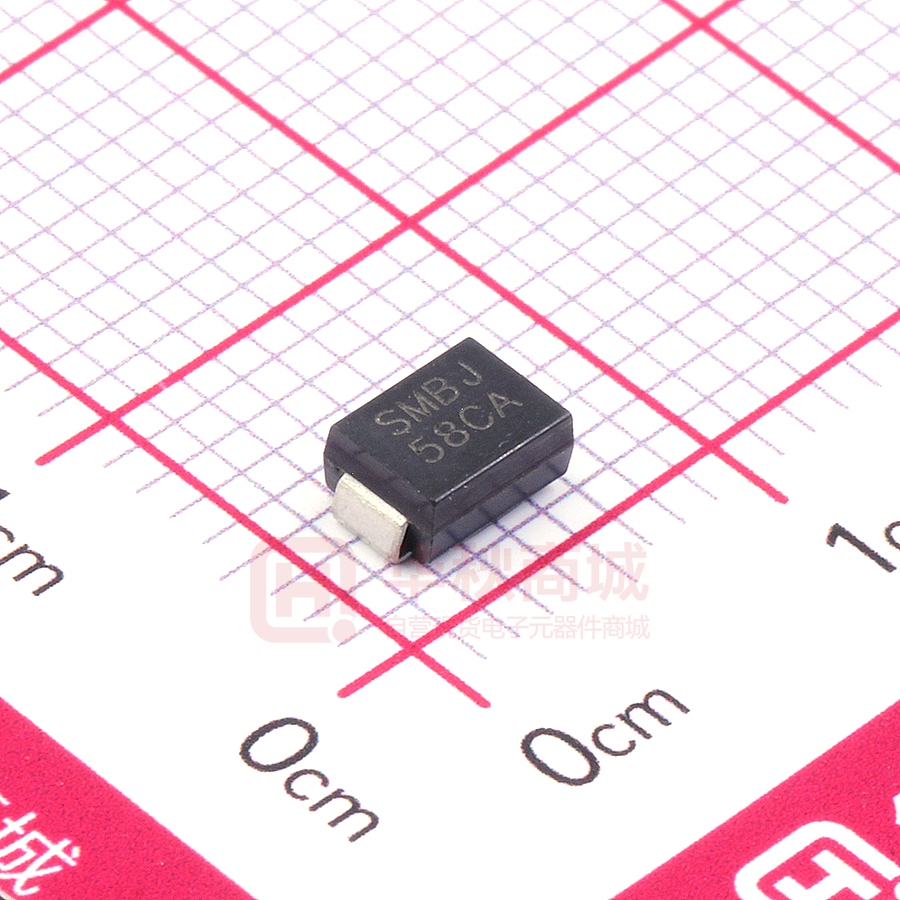

SMBJ58CA

RoHS SMBJ SERIES COMPLIANT Surface Mount Transient Voltage Suppressors Features • Low profile package • Ideal for automated placement • Glass passivated chip junction • Available in Unidirectional and Bidirectional • 600 W peak pulse power capability with a 10/1000 µs waveform, repetitive rate (duty cycle): 0.01 % • Excellent clamping capability • Very fast response time • Low incremental surge resistance • Meets MSL level 1, per J-STD-020C, LF max peak of 260 °C • Solder Dip 260 °C, 10 seconds • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Typical Applications Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, telecommunication. Mechanical Data ● Package: DOMolding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Matte tin plated leads, solderable per J-STD-002B and JESD22-B102D ● Polarity: Color band denotes cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Max Peak power dissipation, with a 10/1000us waveform (1) (2) (Fig.1) PPPM W 600 Peak pulse current, with a 10/1000us waveform(1) IPPM A See Next Table Power dissipation, on infinite heat sink at TL=75℃ PD W 5.0 IFSM A 100 TJ,TSTG ℃ -55 to +150 SYMBOL UNIT VALUE VF V 3.5/5.0 Peak forward surge current, 8.3 ms single half sine-wave unidirectional only (2) Operating junction and storage temperature range ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER Maximum instantaneous forward voltage @ at 50A for unidirectional only (3) 1/7 S-S103 Rev. 2.3, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SMBJ SERIES ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Conditions VALUE RθJL ℃/W junction to lead 20 RθJA ℃/W junction to ambient 100 Thermal resistance(Typical) Notes: (1) Non-repetitive current pulse, per Fig. 3 and derated above TA= 25℃per Fig.2. (2) Mounted on 0.2 x 0.2" (5.0 x 5.0 mm) copper pads to each terminal (3) VF
