RoHS
SR540L THRU SR5100L
COMPLIANT
Schottky Barrier Rectifier
Features
● Guardring for overvoltage protection
●Low forward voltage drop,Low power losses
● High forward surge capability
● High frequency operation
● Solder dip 275 °C max. 7 s, per JESD 22-B106
Typical Applications
For use in low voltage high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications.
Mechanical Data

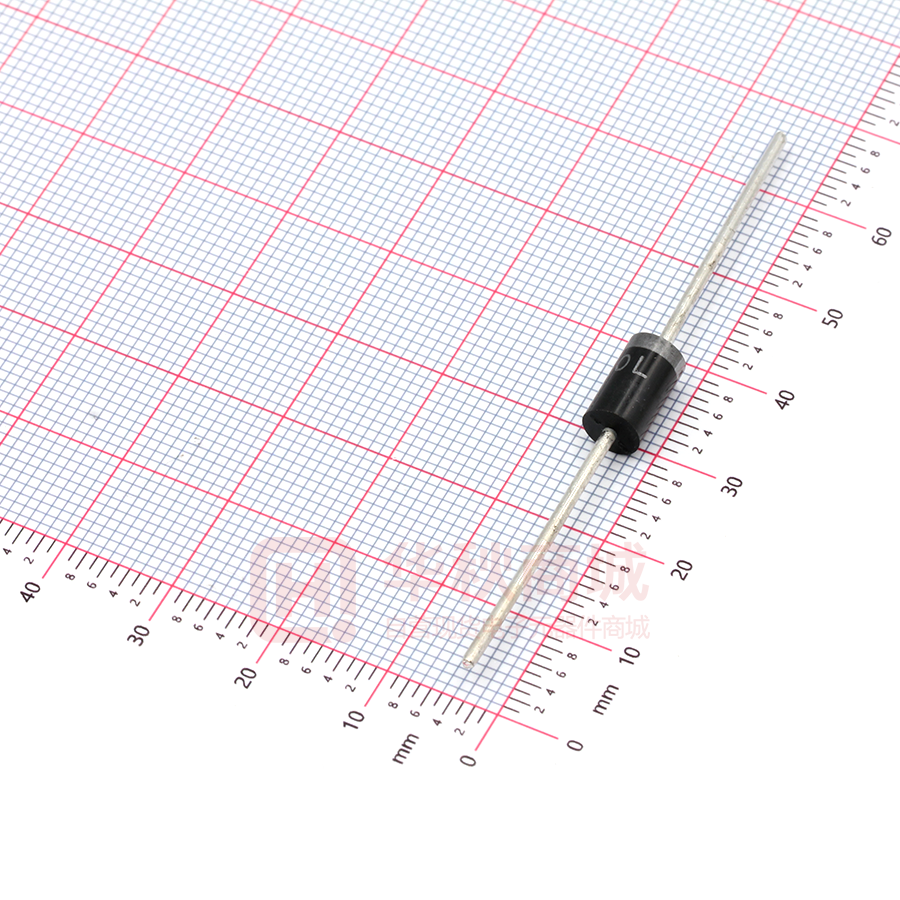

● Package: DO-201AD(DO-27)
Molding compound meets UL 94 V-0 flammability
rating, RoHS-compliant
● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102
● Polarity: Color band denotes the cathode end
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Device marking code
SR540L
SR560L
SR5100L
SR540L
SR560L
SR5100L
40
60
100
VRRM
V
IO
A
5.0
Forward Surge Current (Non-repetitive)
@60Hz Half-sine wave,1 cycle, Ta=25℃
IFSM
A
80
Storage Temperature
Tstg
℃
-55 ~+150
Junction Temperature
Tj
℃
Repetitive Peak Reverse Voltage
Average Rectified Output Current
@60Hz sine wave, Resistance load, Ta (FIG.1)
-55 ~+125
-55 ~+150
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
SYMBOL
UNIT
TEST CONDITIONS
SR540L
SR560L
SR5100L
Maximum instantaneous
forward voltage drop per diode
VF
V
IFM=5.0A
0.48
0.49
0.7
Maximum DC reverse current
at rated DC blocking voltage
per diode
IR
mA
Typical junction capacitance
Cj
PARAMETER
Ta=25℃
0.2
Ta=100℃
pF
0.1
50
Measured at 1MHZ
and Applied Reverse
Voltage of 4.0 V.D.C
330
420
190
Note
(1) Typical junction capacitance measured at 1MHZ and applied reverse voltage of 4.0 V.D.C.
1/4
S-A982
Rev.1.0,29-Aug-18
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
SR540L THRU SR5100L
■Thermal Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
Thermal Resistance
SYMBOL
UNIT
RθJ-A
℃/W
Junction to ambient
SR540L
SR560L
SR5100L
20
■Ordering Information (Example)
PREFERED P/N
PACKAGE CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY MODE
SR540L~SR5100L
D1
Approximate 1.05
1250
1250
12500
Tape
SR540L~SR5100L
C1
Approximate 1.05
250
250
12500
Bulk
■ Characteristics(Typical)
FIG.2: Forward Surge Current Capability
FIG.1: Io-Ta Curve
80
SR
Peak Forward Surge Current (A)
0L
10
R5
40L
4
-S
0L
56
S R5
Average Forward Output Current (A)
5
3
2
Single Phase
Half Wave 60HZ
Resistive or
Inductive Load
0.375''(9.5mm)
Lead Length
1
0
0
8.3ms Single Half Sine Wave
JEDEC Method
40
20
0
100
100
50
60
150
1
2
6
8 10
20
40
60 80 100
Number of Cycles
Ambient Temperature (℃)
FIG.3: Forward Voltage
FIG.4: Typical Reverse Characteristics
20
100
0L
Instantaneous Reverse Current (mA)
10
00
51
SR
56
SR
2.0
L
0L
54
4.0
SR
Instantaneous Forward Current (A)
4
1.0
0.4
0.2
0.1
TJ=25℃
Pulse width=300us
1% Duty Cycle
SR5100L
SR540L-SR560L
10
Tj=100℃
1.0
0.1
Tj=25℃
0.01
0.02
0.01
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.001
0.9
0
Instantaneous Forward Voltage (V)
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
2/4
S-A982
Rev.1.0,29-Aug-18
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
SR540L THRU SR5100L
■ Outline Dimensions
DO-201AD(DO-27)
DO-201AD(DO-27)
Dim
Min
Max
A
8.50
B
C
5.00
9.50
5.60
25.4
/
D
1.2
1.3
Dimensions in millimeters
3/4
S-A982
Rev.1.0,29-Aug-18
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
SR540L THRU SR5100L
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
