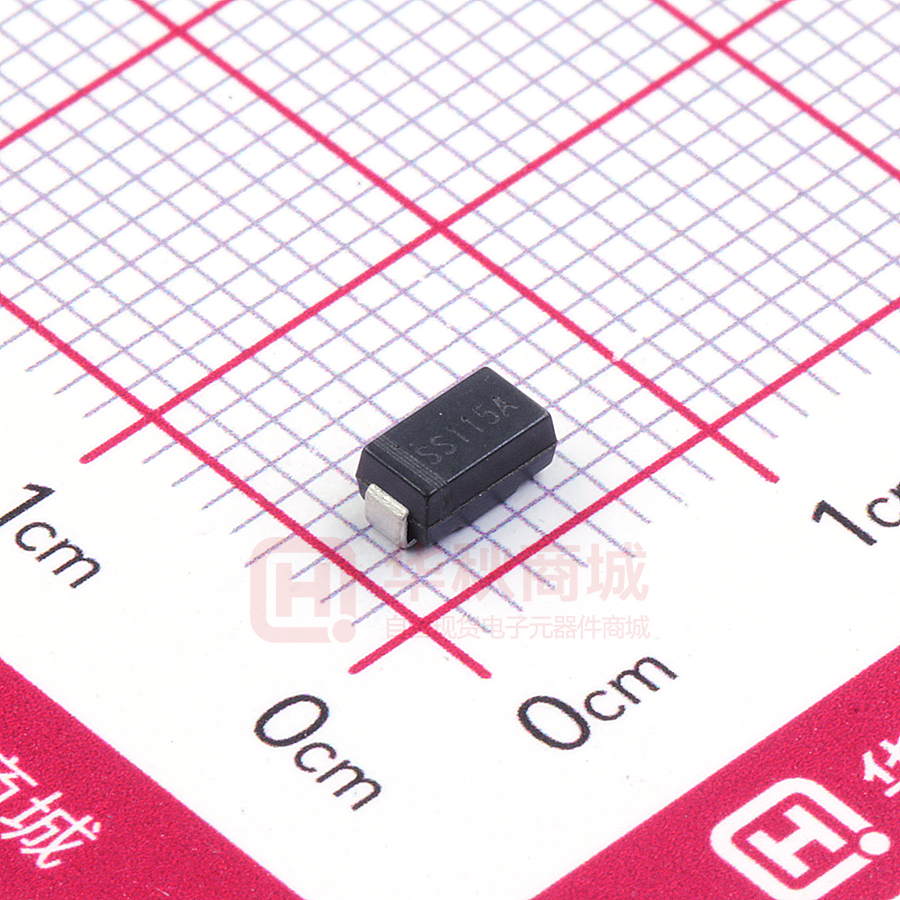

SS115A

RoHS SS12A THRU SS120A  COMPLIANT   Surface Mount Schottky Rectifier Features ● Low profile package ● Ideal for automated placement ● Guardring for overvoltage protection ● Low power losses, high efficiency ● High forward surge capability ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. Mechanical Data ● Package: DO-214AC (SMA)　 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT SS 12A 13A 14A 15A 16A 18A 110A 115A 120A SS Device marking code 12A 13A 14A 15A 16A 18A 110A 115A 120A 20 30 40 50 60 80 100 150 200 115A 120A VRRM V IO A 1.0 Surge(non-repetitive)forward current @60Hz half-sine wave,1 cycle, Ta=25℃ IFSM A 30 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ Repetitive peak reverse voltage Average rectified output current @60Hz sine wave, resistance load, Ta (FIG.1) -55~+125 -55 ~+150 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT TEST CONDITIONS Maximum instantaneous forward voltage drop per diode VF V IFM=1.0A Maximum DC reverse current at rated DC blocking voltage per diode@ VRM=VRRM IRRM mA SS 12A 13A 14A 15A 0.50 16A 18A 0.70 110A 0.85 0.90 Ta=25℃ 0.50 0.10 Ta=100℃ 10 5.0 ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT SS 12A 14A 15A 16A 18A 110A 115A 120A 1) RθJ-A Thermal resistance 13A 65 ℃/W 1) RθJ-L 20 Note (1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas 1/4 S-S118 Rev. 2.4, 09-Apr-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SS12A THRU SS120A    ■ Characteristics (Typical) FIG2:Surge Forward Current Capability 35   0.8     0.6     0.4       0.2     0   0      100 Peak Forward Surge Current(A)   1.0 SS12A-SS14A SS15A-SS120A 8.3ms Single Half Sine Wave JEDEC Method 30 25 20 15 10 5 0 40 80 120 160 1 5 2 Lead Temperature (℃ ) 10 20 50 100 Number of Cycles FIG.3: TYPICAL FORWARD CHARACTERISTICS 100 FIG4：Typical Reverse Characteristics TJ=25℃ Pulse width=300us 1% Duty Cycle SS12A-SS16A SS18A-SS120A 10 Instantaneous Reverse Current(mA) Instantaneous Forward Current(A) Average Rectifield Output Current(A) FIG1 ： Io-TL Curve 10 Tj=100℃ 1.0 1.0 0.1 SS12A-SS14A SS15A-SS16A SS18A-SS110A SS115A-SS120A 0.1 0.01 Tj=25℃ 0.01 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 0.001 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage(%) Instantaneous Forward Voltage (V) 2/4 S-S118 Rev. 2.4, 09-Apr-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SS12A THRU SS120A    ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE SS12A-SS120A F1 Approximate 0.059 5000 10000 80000 13” reel SS12A-SS120A F2 Approximate 0.059 7500 15000 120000 13” reel SS12A-SS120A F3 Approximate 0.059 7500 15000 60000 13” reel SS12A-SS120A F4 Approximate 0.059 1800 7200 57600 7” reel SS12A-SS120A F5 Approximate 0.059 2000 8000 64000 7” reel SS12A-SS120A F6 Approximate 0.059 5000 10000 100000 13” reel ■ Outline Dimensions DO-214AC(SMA) DO-214AC(SMA) A B C D G F Dim Min A 1.25 Max 1.58 B 2.40 2.83 C 4.25 4.75 D 1.90 2.30 E 4.93 5.28 F 0.76 1.41 G 0.08 0.20 H 0.15 0.31 H E Dimensions in millimeters ■Suggested Pad Layout DO-214AC(SMA) P3 P2 Q2 Q1 Dim Millimeters P1 4.00 P2 1.50 P3 6.50 Q1  2.50 Q2  1.70 P1 Dimensions in millimeters 3/4 S-S118 Rev. 2.4, 09-Apr-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SS12A THRU SS120A    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S118 Rev. 2.4, 09-Apr-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
