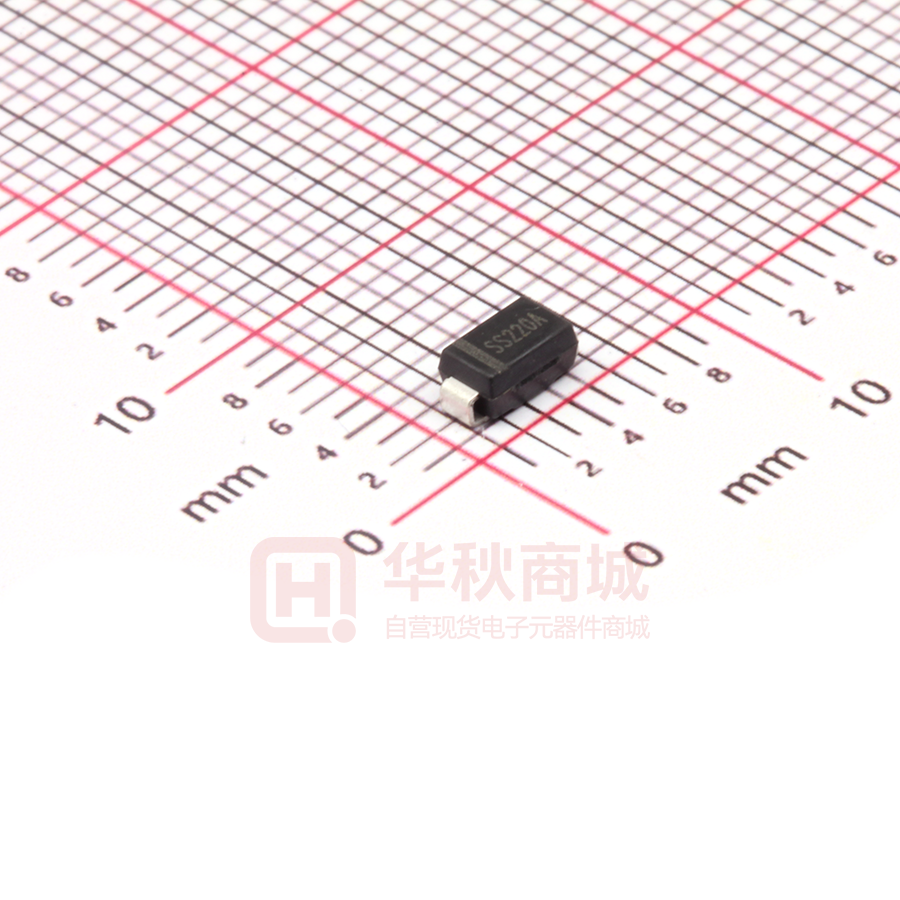

SS220A

RoHS SS22A THRU SS220A COMPLIANT Surface Mount Schottky Rectifier Features ● Low profile package ● Ideal for automated placement ● Guardring for overvoltage protection ● Low power losses, high efficiency ● High forward surge capability ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. Mechanical Data ● Package: DO-214AC ( Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） SS PARAMETER SYMBOL UNIT 22A 23A 24A 25A 26A 28A 210A 215A 220A 22A 23A 24A 25A 26A 28A 210A 215A 220A 20 30 40 50 60 80 100 150 200 SS Device marking code VRRM V Average Rectified Output Current @60Hz Half-sine wave, Resistance load, Ta (FIG.1) IO A 2.0 Surge(Non-repetitive)Forward Current @ 60Hz Half-sine wave,1 cycle, Ta=25℃ IFSM A 50 Junction Temperature Tj ℃ Storage Temperature Tstg ℃ Repetitive Peak Reverse Voltage -55~+125 -55 ~+150 -55 ~+150 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER Maximum instantaneous forward voltage drop per diode Maximum DC reverse current at rated DC blocking voltage per diode@ VRM=VRRM SYMBOL UNIT VF V IRRM mA TEST CONDITIONS IFM=2.0A SS 22A 23A 24A 0.50 25A 26A 0.70 28A 210A 215A 0.85 220A 0.90 Ta=25℃ 0.50 0.10 Ta=100℃ 10 5 1/4 S-S128 Rev. 2.3, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SS22A THRU SS220A ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） SS PARAMETER SYMBOL UNIT RθJ-A(1) ℃/W 22A 23A 24A 25A 26A 28A 210A 215A 220A 75 Thermal Resistance RθJ-L(1) 17 Note (1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE SS22A- SS220A F1 Approximate 0.059 5000 10000 80000 13” reel SS22A- SS220A F2 Approximate 0.059 7500 15000 120000 13” reel SS22A- SS220A F3 Approximate 0.059 7500 15000 60000 13” reel SS22A- SS220A F4 Approximate 0.059 1800 7200 57600 7” reel SS22A- SS220A F5 Approximate 0.059 2000 8000 64000 7” reel SS22A- SS220A F6 Approximate 0.059 5000 10000 100000 13” reel ■ Characteristics (Typical) FIG2:Surge Forward Current Capability 70 2.0 SS25A-SS220A 1.5 SS22A-SS24A 1.0 resistive or inductive on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas 0.5 sine wave 0 60 IFSM 2.5 Peak Forward Surge Current (A) Average Rectifield Output Current(A) FIG1：Io-TL Curve 8.3ms 8.3ms 1cycle 50 non-repetitive Tj=25℃ 40 30 20 10 0 0 1 0 40 80 120 Lead Tempreture(℃) 160 2 5 10 20 Number of Cycles 50 100 2/4 S-S128 Rev. 2.3, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SS22A THRU SS220A FIG4：Typical Reverse Characteristics FIG3：Forward Voltage 100 SS22A-SS26A SS28A-SS220A TJ-25℃ Pulse width=300us 1% Duty Cycle Instantaneous Reverse Current(mA) Instantaneous Forward Current (A) 100 10 10.0 Tj=100℃ 1.0 1.00 0.10 SS22A-SS24A SS25A-SS26A SS28A-SS210A SS215A-SS220A 0.01 0.2 0.4 0.6 1.0 0.8 1.2 0.1 0.01 Tj=25℃ 0.001 1.4 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage(%) Instantaneous Forward Voltage (V) ■ Outline Dimensions DO-214AC(SMA) DO-214AC(SMA) A B C D G F H E Dim Min Max A 1.25 1.58 B 2.40 2.83 C 4.25 4.75 D 1.90 2.30 E 4.93 5.28 F 0.76 1.41 G 0.08 0.20 H 0.15 0.31 Dimensions in millimeters ■ Suggested Pad Layout P3 P2 Q1 DO-214AC(SMA) Q2 Dim Millimeters P1 4.00 P2 1.50 P3 6.50 Q1 2.50 Q2 1.70 P1 Dimensions in millimeters 3/4 S-S128 Rev. 2.3, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SS22A THRU SS220A Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be us ed with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S128 Rev. 2.3, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
