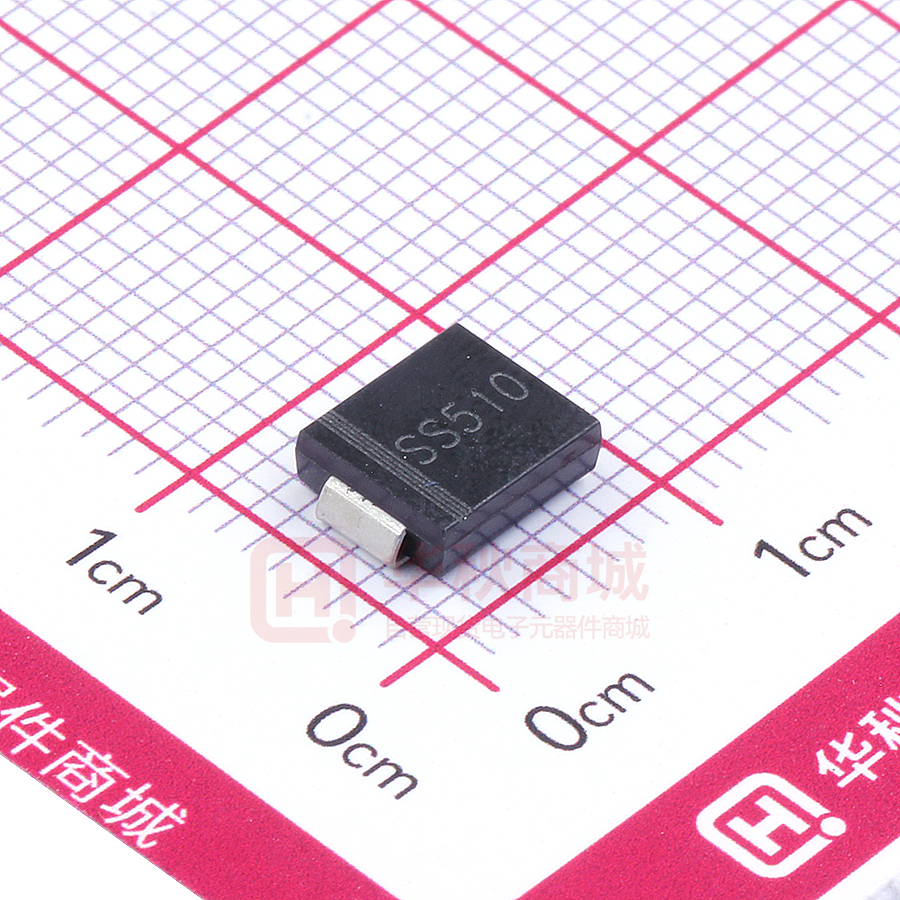

SS510

RoHS SS52 THRU SS520 COMPLIANT Surface Mount Schottky Rectifier Features ● Guardring for overvoltage protection ● Low power losses ● Extremely fast switching ● High forward surge capability ● High frequency operation ● Solder dip 260°C max. 10 s, per JESD 22-B106 Typical Applications For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. Mechanical Data ● Package: DO-214AB (SMC) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 ● Polarity: Color band denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code SS52 SS54 SS56 SS510 SS515 SS520 SS52 SS54 SS56 SS510 SS515 SS520 20 40 60 100 150 200 VRRM V IO A 5.0 Forward Surge Current (Non-repetitive) @60Hz Half-sine wave,1 cycle, Ta=25℃ IFSM A 100 Storage Temperature Tstg ℃ -55 ~+150 Junction Temperature Tj ℃ Repetitive Peak Reverse Voltage Average Rectified Output Current @60Hz sine wave, Resistance load, Ta (FIG.1) -55~+125 -55 ~+150 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） SYMBOL UNIT TEST CONDITIONS SS52 SS54 SS56 SS510 Maximum instantaneous forward voltage drop per diode VF V IFM =5.0A 0.55 0.60 0.70 0.85 Maximum DC reverse current at rated DC blocking voltage per diode IR mA Typical junction capacitance Cj PARAMETER pF SS515 0.90 Ta=25℃ 0.2 0.1 Ta=100℃ 20 5 Measured at 1MHZ and Applied Reverse Voltage of 4.0 V.D.C. 280 220 180 SS520 100 1/4 S-S141 Rev. 2.4, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SS52 THRU SS520 ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER Thermal Resistance SYMBOL Junction to ambient RθJ -A Junction to lead RθJ -L UNIT SS52 SS53 SS54 SS55 SS56 SS58 SS510 SS515 SS520 47(1) ℃/W 13(1) Note(1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.6" x 0.6" (16 mm x 16 mm) copper pad areas ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE SS52~SS520 F1 Approximate 0.251 3000 6000 42000 13” reel ■ Characteristics (Typical) FIG.1: Io-Ta Curve FIG.2: Forward Surge Currrent Capability Peak Forward Surge Current (A) 250 5.0 S -S 0 54 52 -SS 4.0 56 52 SS SS Average Forward Output Current (A) 6.0 3.0 2.0 0 0 150 100 50 Resistive or Inductive Load P.C.B. Mounted on 0.6"×0.6" (16mm×16mm)Copper Pad Areas 1.0 0 25 75 50 8.3ms Single Half Sine Wave JEDEC Method 200 100 125 150 1 2 10 FIG.3: Forward Voltage 100 FIG.4: Typical Reverse Characteristics 20 100 SS510-SS520 SS56 SS52-SS54 20 0 SS 5 56 51 5- SS SS 52 2.0 SS -SS 54 4.0 Instantaneous Reverse Current (mA) 10 51 1.0 SS Instantaneous Forward Current (A) 20 Number of Cycles Lead Temperature (℃) 0.4 0.2 0.1 TJ=25℃ Pulse width=300us 1% Duty Cycle 10 Tj=100℃ 1.0 0.1 Tj=25℃ 0.01 0.02 0.01 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0.001 1.0 0 Instantaneous Forward Voltage (V) 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) 2/4 S-S141 Rev. 2.4, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SS52 THRU SS520 ■ Outline Dimensions DO-214AB(SMC) DO-214AB (SMC) Dim Min Max A 6.60 7.11 B 2.85 3.27 C 5.59 6.22 D 7.75 8.13 E 1.99 2.61 F 0.15 0.31 G 0.76 1.52 H 0.10 0.20 Dimensions in millimeters ■ Suggested pad layout P2 Q1 Dim Typ P1 9.9 P2 3.84 Q1 3.03 Q2 3.82 Q2 P1 Dimensions in millimeters 3/4 S-S141 Rev. 2.4, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SS52 THRU SS520 Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S141 Rev. 2.4, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
