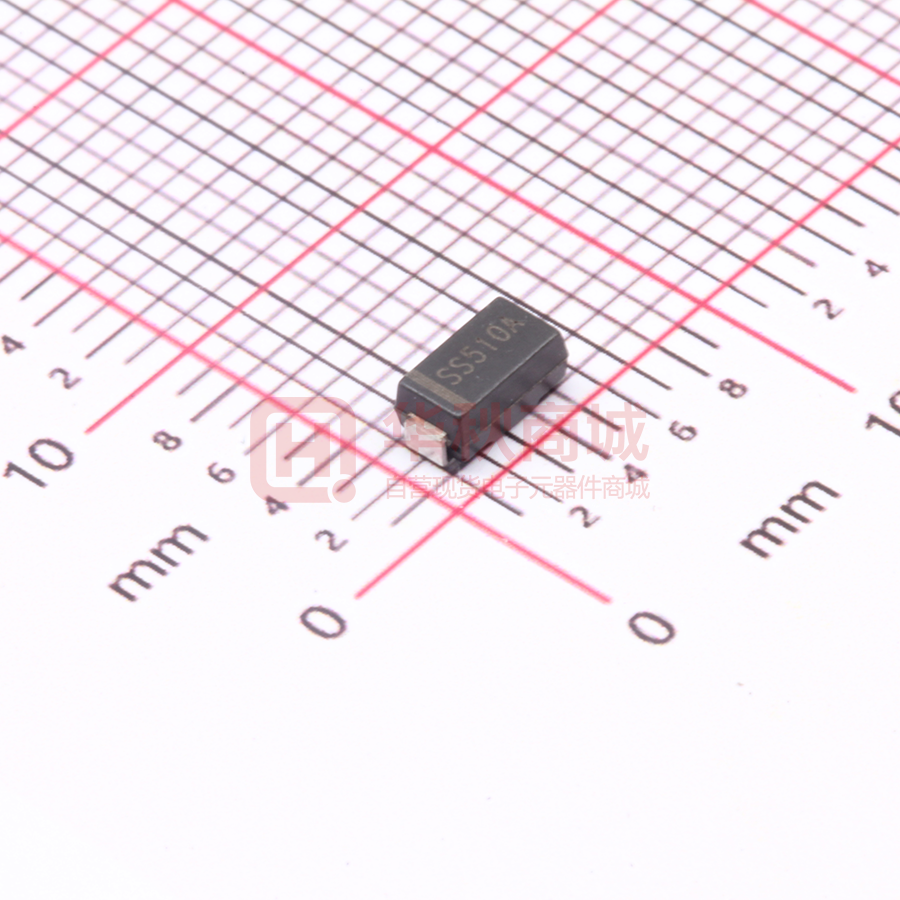

SS510A

RoHS SS52A THRU SS520A COMPLIANT Surface Mount Schottky Rectifier Features ● Low profile package ● Ideal for automated placement ● Guardring for overvoltage protection ● Low power losses, high efficiency ● High forward surge capability ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. Mechanical Data ● Package: DO-214AC Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT SS 52A 53A 54A 55A 56A 58A 510A 515A 520A SS Device marking code 52A 53A 54A 55A 56A 58A 510A 515A 520A 20 30 40 50 60 80 100 150 200 VRRM V IO A 5.0 Surge(non-repetitive)forward current @ 60Hz half-sine wave,1 cycle, Ta=25℃ IFSM A 100 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ Repetitive peak reverse voltage Average rectified output current @60Hz sine wave, resistance load, Ta (FIG.1) -55~+125 -55 ~+150 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） SYMBOL UNIT TEST CONDITIONS Maximum instantaneous forward voltage drop per diode VF V IFM=5.0A Maximum DC reverse current at rated DC blocking voltage per diode@ VRM=VRRM IRRM mA PARAMETER SS 52A 53A 54A 0.60 55A 56A 0.70 58A 510A 515A 520A 0.85 0.90 Ta=25℃ 0.5 0.1 Ta=100℃ 10 5 1/4 S-S137 Rev. 2.3, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SS52A THRU SS520A ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL SS UNIT 52A 53A 54A 55A 56A 58A 510A 515A 520A 1) RθJ-A(1) 60 ℃/W Thermal resistance 1) RθJ-L(1) 22 Note (1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas ■ Characteristics (Typical) FIG1：Io-TL Curve FIG2:Surge Forward Current Capability 250 Peak Forward Surge Current(A) Average Rectifield Output Current(A) 5.0 4.0 3.0 2.0 8.3ms Single Half Sine Wave JEDEC Method 200 150 100 1.0 50 0 0 40 80 120 160 0 Lead Temperature(℃) 1 2 10 20 Number of Cycles 100 FIG4：Typical Reverse Characteristics FIG.3: TYPICAL FORWARD CHARACTERISTICS 100 100 TJ=25℃ Pulse width=300us 1% Duty Cycle Instantaneous Reverse Current(mA) SS52A-SS56A SS58A-SS520A Instantaneous Forward Current(A) 10 Tj=100℃ 1.0 10 SS52A-SS54A SS55A-SS56A SS58A-SS510A SS515A-SS520A 1.0 10 0.1 0.01 Tj=25℃ 0.1 0.001 0.3 0.4 0.5 0.6 0.7 0.8 Instantaneous Forward Voltage(V) 0.9 1.0 0 20 40 60 80 100 2/4 S-S137 Rev. 2.3, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SS52A THRU SS520A ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE SS52A-SS520A F1 Approximate 0.059 5000 10000 80000 13” reel SS52A-SS520A F2 Approximate 0.059 7500 15000 120000 13” reel SS52A-SS520A F3 Approximate 0.059 7500 15000 60000 13” reel SS52A-SS520A F4 Approximate 0.059 1800 7200 57600 7” reel SS52A-SS520A F5 Approximate 0.059 2000 8000 64000 7” reel SS52A-SS520A F6 Approximate 0.059 5000 10000 100000 13” reel ■ Outline Dimensions DO-214AC(SMA) DO-214AC(SMA) A B C D G F H E Dim Min Max A 1.25 1.58 B 2.40 2.83 C 4.25 4.75 D 1.90 2.30 E 4.93 5.28 F 0.76 1.41 G 0.08 0.20 H 0.15 0.31 Dimensions in millimeters ■Suggested Pad Layout DO-214AC(SMA) P3 P2 Q1 Q2 Dim Millimeters P1 4.00 P2 1.50 P3 6.50 Q1 2.50 Q2 1.70 P1 Dimensions in millimeters 3/4 S-S137 Rev. 2.3, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SS52A THRU SS520A Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S137 Rev. 2.3, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
