SS8050-L THRU SS8050-H
RoHS
COMPLIANT
NPN General Purpose Amplifier
Features
● Epoxy meets UL-94 V-0 flammability rating
● Halogen free available upon request by adding suffix ”HF”
● Moitsure Sensitivity Level 1
● High Conductance
● Surface Mount Package Ideally Suited for Automatic
Insertion
Mechanical Data

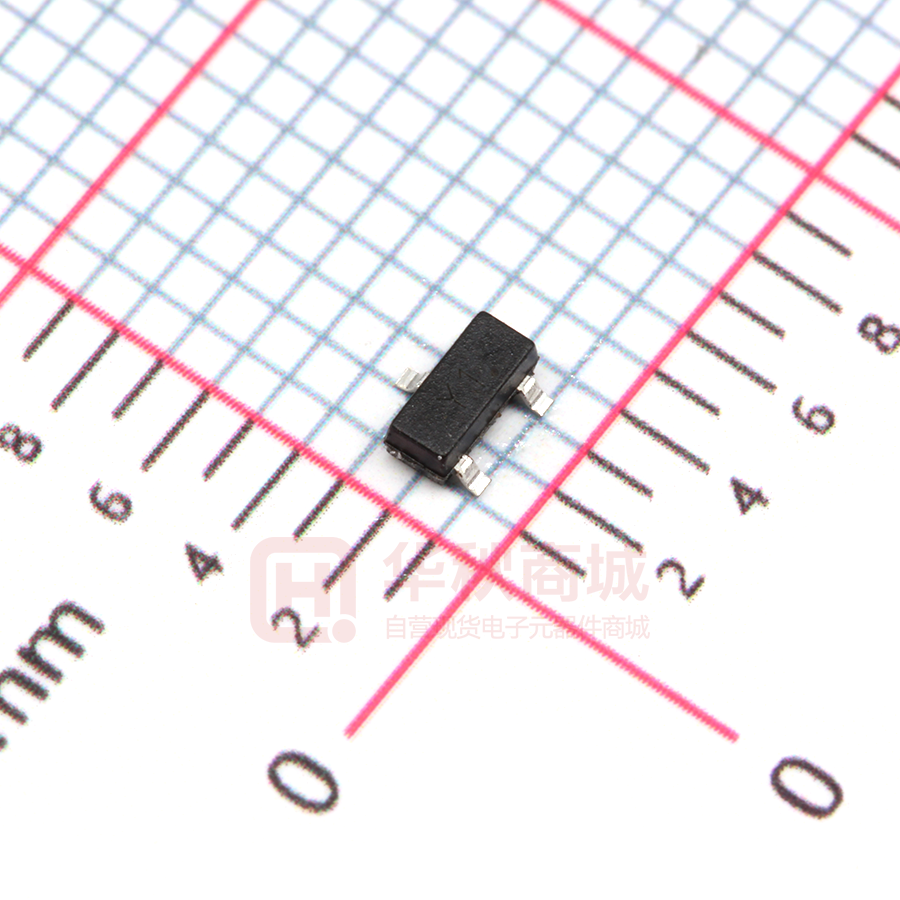

● Package: SOT-23
Molding compound meets UL 94 V-0 flammability rating,
RoHS-compliant, halogen-free
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Marking:
SS8050-L
SS8050-H
Y1ꞏL
Y1
■Maximum Ratings (Ta=25℃ unless otherwise noted)
Item
Symbol
Unit
Conditions
Value
Minimum Collector-Emitter Voltage
VCEO
V
IC=100uAdc, IB=0
25
Minimum Collector-Base Voltage
VCBO
V
IC=100uAdc, IE=0
40
Minimum Emitter-Base Voltage
VEBO
V
IE=100uAdc, IC=0
5.0
IC
A
Maximum Collector-Emmiter cut-off current
ICEO
nAdc
VCE=20Vdc
100
Maximum Collector-Base cut-off current
ICBO
nAdc
VCB=40Vdc
100
Maximum Emitter-Base cut-off current
IEB0
nAdc
VEB=5.0Vdc
100
Collector Power Dissipation
PC
mW
300
Operation Junction Temperature
Tj
℃
-55 to +150
Tstg
℃
-55 to +150
Collector Current
Storage Temperature
1.5
1/5
S-S1468
Rev.1.5, 10-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
SS8050-L THRU SS8050-H
■Electrical Characteristics (Ta=25℃ unless otherwise noted)
Item
Symbol
Unit
Conditions
Min
Max
Collector-Emitter Voltage
VCEO
V
IC=100uAdc, IB=0
25
Collector-Base Voltage
VCBO
V
IC=100uAdc, IE=0
40
Emitter-Base Voltage
VEBO
V
IE=100uAdc, IC=0
5
Collector-Emitter cut-off current
ICEO
nAdc
VCE=20Vdc
100
Collector-Base cut-off current
ICBO
nAdc
VCB=40Vdc
100
Emitter-Base cut-off current
IEB0
nAdc
VEB=5.0Vdc
100
hFE(1)
IC=100mA VCE=1.0Vdc
120
hFE(2)
IC=800mA VCE=1.0Vdc
40
350
DC Current Gain
Collector-Emitter Saturation Voltage
VCE(sat)
Vdc
IC=800mA IB =80mA
0.5
Base-Emitter Saturation Voltage
VBE(sat)
Vdc
IC=800mA IB =80mA
1.2
Symbol
Unit
Conditions
MHz
IC=50mAdc, VCE=10Vdc,f=30MHz
■Small-signal Characteristics
Item
Transition frequency
fT
Min
Max
100
■CLASSIFICATION OF HFE (1)
Rank
L
Range
H
120-200
200-350
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY MODE
SS8050
F2
Approximate 0.008
3000
30000
120000
7” reel
2/5
S-S1468
Rev.1.5, 10-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
SS8050-L THRU SS8050-H
■Characteristics (Typical)
3/5
S-S1468
Rev.1.5, 10-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
SS8050-L THRU SS8050-H
■SOT-23 Package Outline Dimensions
■SOT-23 Soldering Footprint
4/5
S-S1468
Rev.1.5, 10-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
SS8050-L THRU SS8050-H
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
5/5
S-S1468
Rev.1.5, 10-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
