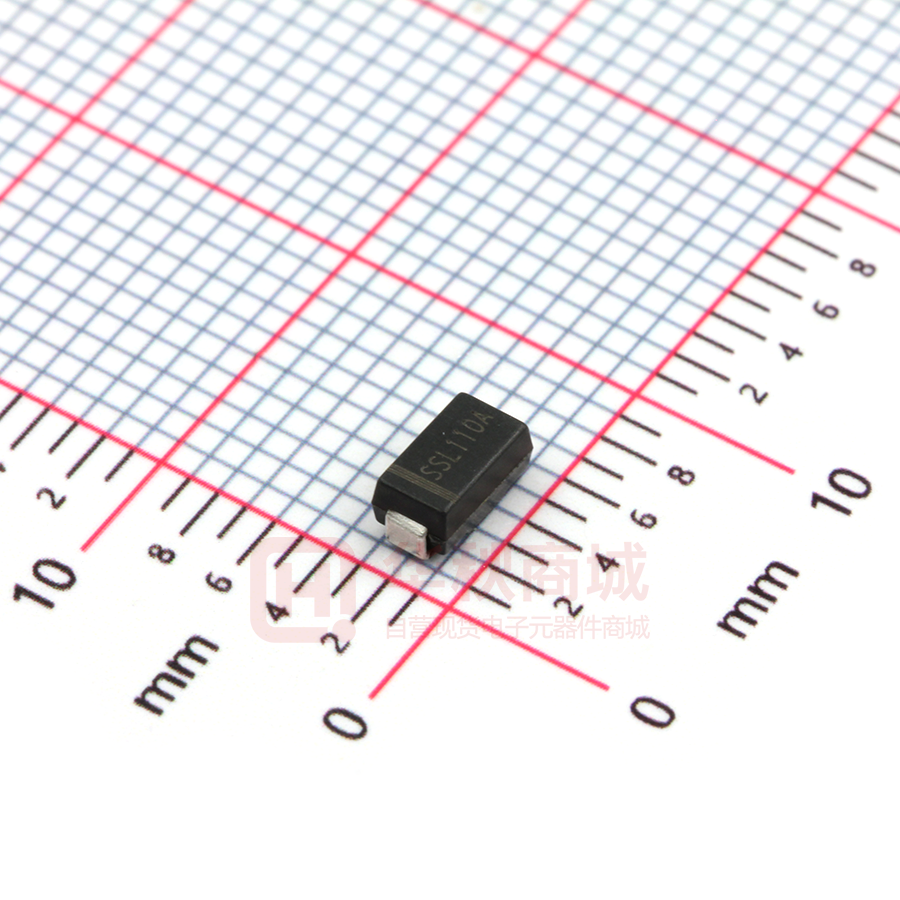

SSL110A

RoHS SSL14A THRU SSL110A  COMPLIANT   Surface Mount Schottky Rectifier Features ● Low profile package ● Ideal for automated placement ● Guardring for overvoltage protection ● Low power losses, high efficiency ● Low VF ● High forward surge capability ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. Mechanical Data ● Package: DO-214AC (SMA)　 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code SSL14A SSL16A SSL110A SSL14A SSL16A SSL110A 40 60 100 VRRM V IO A 1.0 Surge(non-repetitive)forward current @ 60Hz half-sine wave,1 cycle, Ta=25℃ IFSM A 28 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ -55 ~+150 Repetitive peak reverse voltage Average rectified output current @60Hz sine wave, resistance load,TL (FIG.1) ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER Maximum instantaneous forward voltage drop per diode Maximum DC reverse current at rated DC blocking voltage per diode@ VRM=VRRM SYMBOL UNIT TEST CONDITIONS SSL14A SSL16A SSL110A VF V IFM=1.0A 0.45 0.55 0.6 IRRM mA Ta=25℃ 0.5 Ta=100℃ 10 ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL SSL14A UNIT SSL16A SSL110A 601) RθJ-A ℃/W Thermal resistance 251) RθJ-L Note (1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas 1/4 S-S403 Rev. 2.5, 15-Sep-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SSL14A THRU SSL110A    ■ Characteristics (Typical) FIG2: Surge Forward Current Capability FIG1 ： Io-TL Curve   35 8.3ms Single Half Sine Wave JEDEC Method Peak Forward Surge Current (A) 30 0.8 0.6 0.4 resistive or inductive on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas 0.2 25 20 15 10 0 0 40 80 120 5 0 160 1 2 5 Lead Temperature (℃ ) FIG3：Forward Voltage 10 20 Number of Cycles 50 100 FIG.4：TYPICAL REVERSE CHARACTERISTICS 100 40.0 30.0 Instantaneous Reverse Current(mA) Instantaneous  Forward Current (A)                             Average Rectifield Output Current (A) 1.0 20.0 Ta=25℃ 10.0 1.00 0.10 10 100℃ 1.0 0.1 25℃ 0.01 SSL14A SSL16A SSL110A 0.001 0.01 0.2 0.4 0.6 0.8 1.0 1.2 1.4 0 20 Instantaneous  Forward Voltage (V) 40 60 80 Percent of Rated Peak Reverse Voltage(%) 100 ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE SSL14A-SSL110A F1 Approximate 0.059 5000 10000 80000 13” reel SSL14A-SSL110A F2 Approximate 0.059 7500 15000 120000 13” reel SSL14A-SSL110A F3 Approximate 0.059 7500 15000 60000 13” reel SSL14A-SSL110A F4 Approximate 0.059 1800 7200 57600 7” reel SSL14A-SSL110A F5 Approximate 0.059 2000 8000 64000 7” reel SSL14A-SSL110A F6 Approximate 0.059 5000 10000 100000 13” reel 2/4 S-S403 Rev. 2.5, 15-Sep-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SSL14A THRU SSL110A    ■ Outline Dimensions DO-214AC(SMA) A DO-214AC(SMA) B C D G F H Dim Min Max A 1.25 1.58 B 2.40 2.83 C 4.06 4.75 D 1.90 2.30 E 4.93 5.28 F 0.76 1.41 G 0.08 0.20 H 0.15 0.31 E Dimensions in millimeters ■Suggested Pad Layout P3 P2 DO-214AC(SMA) Q2 Q1 Dim Millimeters P1 4.00 P2 1.50 P3 6.50 Q1  2.50 Q2  1.70 P1 Dimensions in millimeters 3/4 S-S403 Rev. 2.5, 15-Sep-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SSL14A THRU SSL110A    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S403 Rev. 2.5, 15-Sep-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
