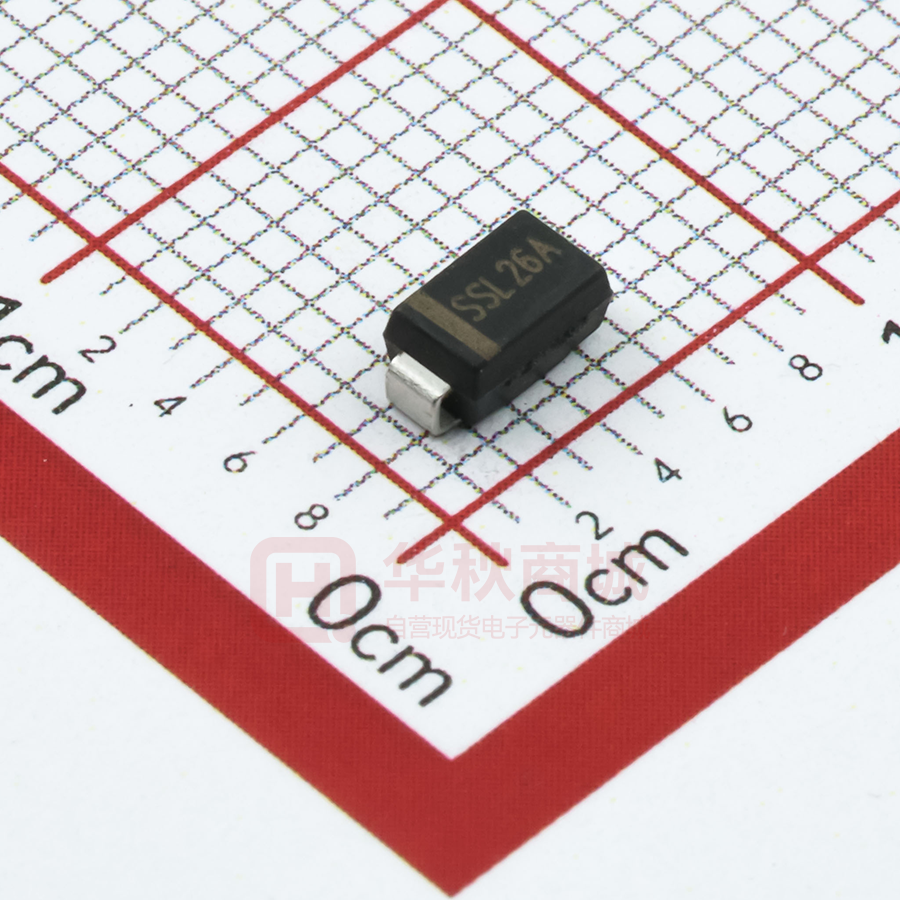

SSL26A

SSL26A

  • 厂商:

    YANGJIE(扬杰科技)

  • 封装:

    SMA(DO-214AC)

  • 描述:

    表面贴装肖特基整流器

  • 数据手册
  • 价格&库存
SSL26A 数据手册
RoHS SSL24A THRU SSL210A COMPLIANT Surface Mount Schottky Rectifier Features ● Low profile package ● Ideal for automated placement ● Guardring for overvoltage protection ● Low power losses, high efficiency ● Low VF ● High forward surge capability ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. Mechanical Data ● Package: DOMolding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified) PARAMETER SYMBOL UNIT Device marking code SSL24A SSL26A SSL210A SSL24A SSL26A SSL210A 40 60 100 VRRM V IO A 2.0 Surge(non-repetitive)forward current @ 60Hz half-sine wave,1 cycle, Ta=25℃ IFSM A 50 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ -55 ~+150 Repetitive peak reverse voltage Average rectified output current @60Hz sine wave, resistance load, Ta (FIG.1) ■Electrical Characteristics(Ta=25℃ Unless otherwise specified) SYMBOL UNIT TEST CONDITIONS SSL24A SSL26A SSL210A Maximum instantaneous forward voltage drop per diode VF V IFM=2.0A 0.47 0.55 0.75 Maximum DC reverse current at rated DC blocking voltage per diode@ VRM=VRRM IRRM mA PARAMETER Ta=25℃ 0.50 Ta=100℃ 10 1/4 S-S404 Rev. 2.2, 11-May-15 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SSL24A THRU SSL210A ■Thermal Characteristics (Ta=25℃ Unless otherwise specified) PARAMETER SYMBOL SSL24A UNIT SSL26A SSL210A 1) RθJ-A 60 ℃/W Thermal resistance 1) RθJ-L 20 Note (1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas ■ Characteristics (Typical) FIG1:Io-TL Curve FIG2:Surge Forward Current Capability 2.4 2.0 1.6 1.2 0.8 0.4 8.3ms Single Half Sine Wave JEDEC Method 60 Peak Forward Surge Current (A) Average Forward Output Current(A) 70 50 40 30 20 10 Single Phase Sine Wave 60Hz Resistive Load 0 0 0 40 80 120 Lead Temperature(℃) 1 150 10 20 50 100 Number of Cycles FIG.4:TYPICAL REVERSE CHARACTERISTICS FIG3:Forward Voltage 100 40.0 30.0 Instantaneous Reverse Current(mA) Instantaneous Forward Current (A) 5 2 20.0 Ta=25℃ 10.0 1.00 0.10 10 100℃ 1.0 0.1 25℃ 0.01 SSL24A SSL26A SSL210A 0.001 0.01 0.2 0.4 0.6 0.8 1.0 1.2 1.4 Instantaneous Forward Voltage (V) 0 20 40 60 80 Percent of Rated Peak Reverse Voltage(%) 100 2/4 S-S404 Rev. 2.2, 11-May-15 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SSL24A THRU SSL210A ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE SSL24A-SSL210A F1 Approximate 0.059 5000 10000 80000 13” reel SSL24A-SSL210A F2 Approximate 0.059 7500 15000 120000 13” reel SSL24A-SSL210A F3 Approximate 0.059 7500 15000 60000 13” reel SSL24A-SSL210A F4 Approximate 0.059 1800 7200 57600 7” reel SSL24A-SSL210A F5 Approximate 0.059 2000 8000 64000 7” reel SSL24A-SSL210A F6 Approximate 0.059 5000 10000 100000 13” reel ■ Outline Dimensions DO-214AC(SMA) DO-204AC(SMA) A B C D G F H Dim Min Max A 1.25 1.58 B 2.40 2.83 C 4.25 4.75 D 1.90 2.30 E 4.93 5.28 F 0.76 1.41 G 0.08 0.20 H 0.15 0.31 E Dimensions in millimeters ■Suggested Pad Layout P3 P2 Q1 DO-214AC(SMA) Q2 Dim Millimeters P1 4.00 P2 1.50 P3 6.50 Q1 2.50 Q2 1.70 P1 Dimensions in millimeters 3/4 S-S404 Rev. 2.2, 11-May-15 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SSL24A THRU SSL210A Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S404 Rev. 2.2, 11-May-15 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
