RoHS
UF4001 THRU UF4007
COMPLIANT
High Efficient Rectifier
Features
● High efficiency
● High current capability
● High Reliability
● High surge current capability
● Solder dip 275 °C max. 7 s, per JESD 22-B106
Mechanical Data

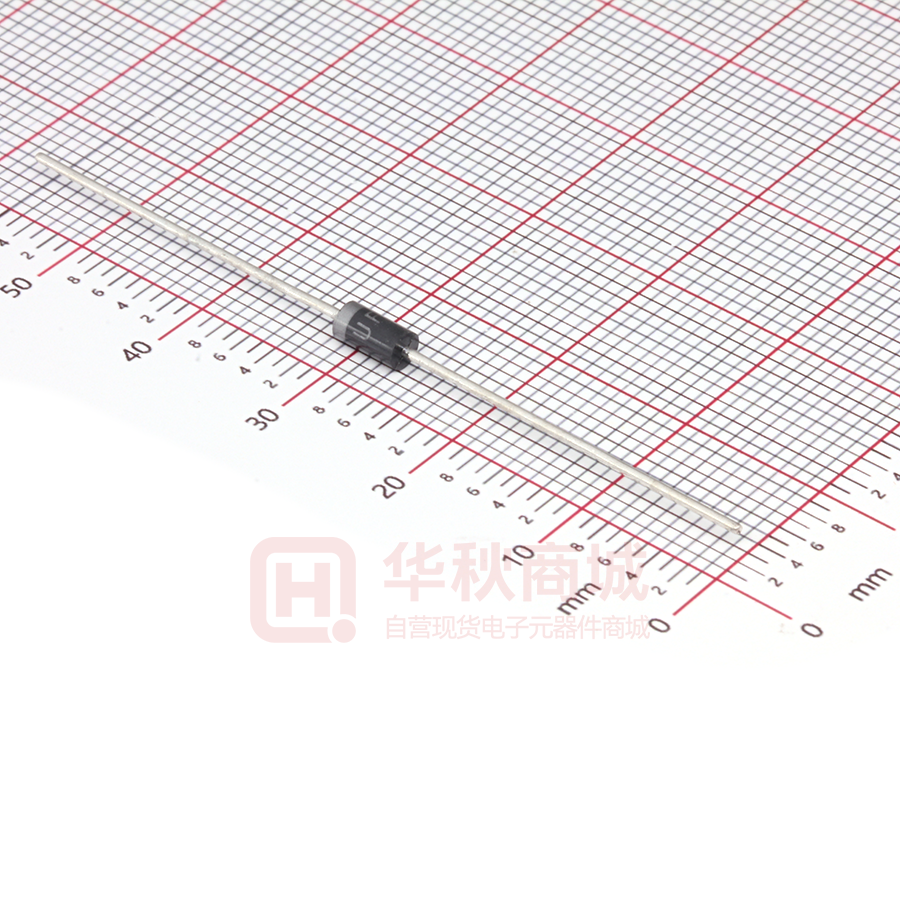

● Package: DO-204AL(DO-41)
Molding compound meets UL 94 V-0 flammability
rating, RoHS-compliant
● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102
● Polarity:Color band denotes cathode end
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Device marking code
UF4001
UF4002
UF4003
UF4004
UF4005
UF4006
UF4007
UF4001
UF4002
UF4003
UF4004
UF4005
UF4006
UF4007
50
100
200
400
600
800
1000
VRRM
V
IO
A
1.0
Surge(Non-repetitive)Forward Current @60Hz
Half-sine wave, 1 cycle, Ta=25℃
IFSM
A
30
Storage Temperature
Tstg
℃
-55 ~+150
Junction Temperature
Tj
℃
-55~+125
Repetitive Peak Reverse Voltage
Average Forward Current @60Hz sine wave,
Resistance load, Ta=50℃
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL UNIT
Maximum instantaneous forward voltage
drop per diode
Maximum DC reverse current at
rated DC blocking voltage per diode
VFM
IRRM1
IRRM2
Reverse Recovery time
Typical junction capacitance
TEST
CONDITIONS
V
IFM=1.0A
μA
Ta=25℃
Ta=100℃
UF4001
UF4002
UF4003
UF4004
1.0
UF4005
1.3
UF4006
UF4007
1.7
2.5
150
trr
I =0.5A IR=1A
ns F
IRR=0.25A
50
75
Cj
Measured at
1MHZ and
pF Applied Reverse
Voltage of 4.0
V.D.C.
20
15
■Thermal Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Thermal Resistance(Typical)
RθJ-A
℃/W
UF4001
UF4002
UF4003
UF4004
UF4005
UF4006
UF4007
50
1/4
S-A201
Rev. 2.0, 6-Nov-14
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
UF4001 THRU UF4007
■Ordering Information (Example)
PREFERED P/N
PACKAGE CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY MODE
UF4001~UF4007
D1
Approximate 0.27
5000
5000
50000
Tape
UF4001~UF4007
C1
Approximate 0.27
1000
1000
50000
Bulk
■ Characteristics (Typical)
FIG.2: Surge Forward Currrent Capability
FIG.1: Io-Ta Curve
30
Peak Forward Surge Current (A)
0.8
0.6
0.4
S
Average Forward Output Current (A)
1.0
0.2
ingle Phase
Half Wave 60HZ
Resistive or
Inductive Load
0.375''(9.5mm)
Lead Length
8.3ms Single Half Sine Wave
JEDEC Method
18
12
6
0
0
0
1
0
24
0
50
1
150
100
2
4
6
8 10
20
40
60 80 100
Number of Cycles
Ambient Temperature (℃)
FIG.4: Typical Reverse Characteristics
FIG.3: Forward Voltage
100
20
Instantaneous Forward Current (A)
Instantaneous Reverse Current (uA)
UF4004
10
UF4001-UF4003
4.0
2.0
UF4005-UF4007
1.0
0.4
0.2
0.1
TJ=25℃
Pulse width=300us
1% Duty Cycle
Tj=125℃
10
1.0
Tj=100℃
0.1
Tj=25℃
0.01
0.02
0.01
0.6
0.001
0.8
1.0
1.2
1.4
1.6
1.8
0
2.0
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
Instantaneous Forward Voltage (V)
2/4
S-A201
Rev. 2.0, 6-Nov-14
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
UF4001 THRU UF4007
FIG.5: Diagram of circuit and Testing wave form of reverse recovery time
50 Ω
NONINDUCTIVE
10 Ω
NONINDUCTIVE
trr
+0.5A
(-)
(+)
DUT
0
PULSE
GENERATOR
(NOTE2)
(-)
1Ω
NONINDUCTIV
OSCILLOSCOPE
(NOTE1)
-0.25A
(+)
NOTES:
1.Rise Time=7ns max .Inpot Impedance=1M Ω 22pf
2.Rise Time=10ns max.Sourse Impedance=50 Ω
-1.0A
1cm
SET TIME BASE FOR
5/10ns/cm
■ Outline Dimensions
DO-204AL(DO-41)
DO-204AL(DO-41)
Dim
Min
Max
A
4.22
5.21
B
C
2.03
2.72
25.4
/
D
0.69
0.86
Dimensions in millimeters
3/4
S-A201
Rev. 2.0, 6-Nov-14
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
UF4001 THRU UF4007
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-A201
Rev. 2.0, 6-Nov-14
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
