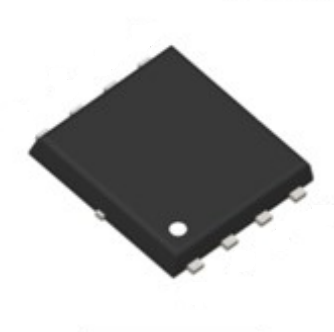

YJG95G06A

RoHS YJG95G06A COMPLIANT N-Channel Enhancement Mode Field Effect Transistor Product Summary ● VDS ● ID ● RDS(ON)( at VGS=10V) ● RDS(ON)( at VGS=4.5V) ● 100% UIS Tested ● 100% ▽VDS Tested 60V 95A ＜2.5 mohm ＜3.4 mohm General Description ● Split Gate Trench MOSFET technology ● Excellent package for heat dissipation ● High density cell design for low RDS(ON) Applications ● DC-DC Converters ● Power management functions ● Synchronous-rectification applications ■ Absolute Maximum Ratings (TA=25℃unless otherwise noted) Parameter Symbol Limit Drain-source Voltage VDS 60 V Gate-source Voltage VGS ±20 V ID 155 A Drain Current （Silicon limited） 95 TC=25℃ Drain Current Unit A ID A 60 TC=100℃ Pulsed Drain Current B IDM 390 A Avalanche energy C EAS 500 mJ Total Power Dissipation D PD 120 W Thermal Resistance Junction-to-Case RθJC 1.04 Thermal Resistance Junction-to-Ambient E RθJA 20 Junction and Storage Temperature Range TJ ,TSTG -55～+150 ℃/ W ℃ ■ Ordering Information (Example) PREFERED P/N PACKING CODE Marking MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE YJG95G06A F1 YJG95G06A 5000 10000 50000 13“ reel 1/7 S-E047 Rev.3.0,25-Mar-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJG95G06A ■ Electrical Characteristics (TJ=25℃ unless otherwise noted) Parameter Symbol Conditions Min Typ Max Units Drain-Source Breakdown Voltage BVDSS VGS= 0V, ID=250μA 60 Zero Gate Voltage Drain Current IDSS VDS=60V,VGS=0V 1 μA IGSS VGS= ±20V, VDS=0V ±100 nA Gate Threshold Voltage VGS(th) VDS= VGS, ID=250μA 1.6 2.5 V VGS= 10V, ID=20A 2.1 2.5 Static Drain-Source On-Resistance RDS(ON) VGS= 4.5V, ID=15A 2.7 3.4 Static Parameter Gate-Body Leakage Current Diode Forward Voltage VSD Maximum Body-Diode Continuous Current 1.2 V mΩ IS=20A,VGS=0V IS 1.2 V 95 A Dynamic Parameters Input Capacitance Ciss 5950 Output Capacitance Coss Reverse Transfer Capacitance Crss 85 Total Gate Charge Qg 93 Gate-Source Charge Qgs Gate-Drain Charge Qgd Reverse Recovery Chrage Qrr VDS=25V,VGS=0V,f=100KHZ 1250 pF Switching Parameters VGS=10V,VDS=50V,ID=50A 17 nC 14 73 IF=25A, di/dt=100A/us Reverse Recovery Time trr 68 Turn-on Delay Time td(on) 22.5 Turn-on Rise Time tr Turn-off Delay Time td(off) Turn-off fall Time VGS=10V,VDD=30V,ID=25A RGEN=2Ω tf 6.7 ns 80.3 26.9 Note: A. The maximum current rating is package limited. B. Repetitive rating; pulse width limited by max. junction temperature. C. VDD=50 V, RG=25 Ω, L=0.5mH, starting Tj=25 ℃. D. PD is based on max. junction temperature, using junction-case thermal resistance. E. The value of RθJA is measured with the device mounted on 1 in 2 FR-4 board with 2oz. Copper, in a still air environment with Ta=25 ℃. 2/7 S-E047 Rev.3.0,25-Mar-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJG95G06A ■ Typical Performance Characteristics Figure1. Output Characteristics Figure2. Transfer Characteristics Figure3. Capacitance Characteristics Figure4. Gate Charge Figure5. Drain-Source on Resistance Figure6. Drain-Source on Resistance 3/7 S-E047 Rev.3.0,25-Mar-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJG95G06A Figure7. Safe Operation Area Figure8. Drain-source breakdown voltage Figure 9.Transient thermal impedance 4/7 S-E047 Rev.3.0,25-Mar-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJG95G06A ■ Test circuits and waveforms 5/7 S-E047 Rev.3.0,25-Mar-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJG95G06A ■ PDFN5x6 Package Information 6/7 S-E047 Rev.3.0,25-Mar-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJG95G06A Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 7/7 S-E047 Rev.3.0,25-Mar-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
