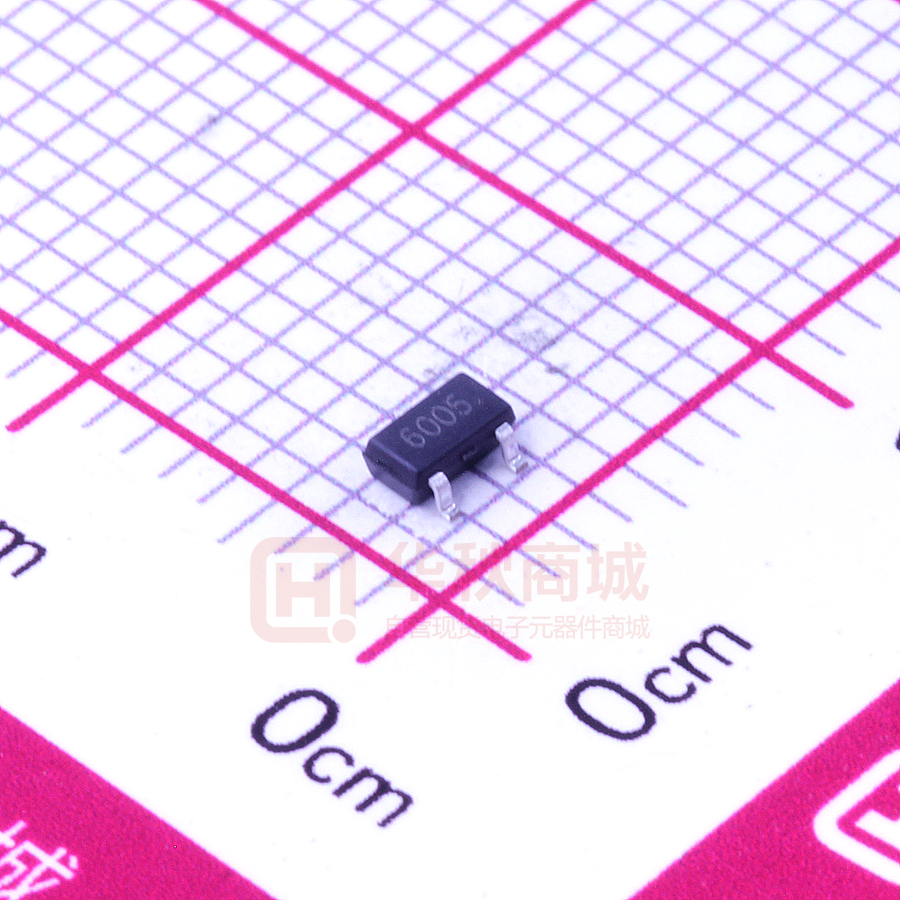

YJL05N06AL

RoHS YJL05N06AL COMPLIANT N-Channel Enhancement Mode Field Effect Transistor Product Summary ● VDS ● ID ● RDS(ON)( at VGS= 10V) ● RDS(ON)( at VGS= 4.5V) 60V 5.0A ＜44mohm ＜49mohm General Description ● Trench Power MV MOSFET technology ● High density cell design for Low RDS(ON) Applications ● PWM application ● Load switch ■ Absolute Maximum Ratings (TA=25℃unless otherwise noted) Parameter Symbol Limit Drain-source Voltage VDS 60 V Gate-source Voltage VGS ±20 V TA=25℃ @ Steady State Drain Current 5.0 ID TA=70℃ @ Steady State Unit A 4.0 Pulsed Drain Current A IDM 25 A Total Power Dissipation @ TA=25℃ PD 2.5 W RθJA 50 ℃/ W TJ ,TSTG -55～+150 ℃ Thermal Resistance Junction-to-Ambient @ Steady State B Junction and Storage Temperature Range ■ Ordering Information (Example) PREFERED P/N PACKING CODE Marking MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE YJL05N06AL F2 6005. 3000 30000 120000 7“ reel 1/7 S-E629 Rev.3.0,17-Feb-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJL05N06AL ■ Electrical Characteristics (TJ=25℃ unless otherwise noted) Parameter Symbol Conditions Min Typ Max Units Drain-Source Breakdown Voltage BVDSS VGS= 0V, ID=250μA 60 Zero Gate Voltage Drain Current IDSS VDS=60V,VGS=0V 1 μA IGSS VGS= ±20V, VDS=0V ±100 nA Gate Threshold Voltage VGS(th) VDS= VGS, ID=250μA 1.5 2.5 V 35 44 Static Drain-Source On-Resistance RDS(ON) Static Parameter Gate-Body Leakage Current 1.0 VGS= 10V, ID=5.0A Diode Forward Voltage VSD Maximum Body-Diode Continuous Current V mΩ VGS= 4.5V, ID=4.0A 39 49 IS=5.0A,VGS=0V 0.8 1.2 V 5.0 A IS Dynamic Parameters Input Capacitance Ciss 1018 Output Capacitance Coss Reverse Transfer Capacitance Crss 62 Total Gate Charge Qg 26.4 Gate Source Charge Qgs VDS=30V,VGS=0V,f=1MHZ 70 pF Switching Parameters VGS=10V,VDS=30V,ID=10A 5.4 nC Gate Drain Charge Qgd Reverse Recovery Charge Qrr 6.5 11.7 IF=20A, di/dt=500A/us Reverse Recovery Time trr 23 Turn-on Delay Time tD(on) 10 Turn-on Rise Time tr Turn-off Delay Time tD(off) Turn-off Fall Time VGS=10V,VDD=30V, ID=2A,RL=1Ω RGEN=3Ω tf 20 ns 29 21 A. Pulse Test: Pulse Width≤300us,Duty cycle ≤2%. B. RθJA is the sum of the junction-to-lead and lead-to-ambient thermal resistance, where the lead thermal reference is defined as the solder mounting surface of the drain pins. RθJL is guaranteed by design, while RθJA is determined by the board design. The maximum rating presented here is based on mounting on a 1 in 2 pad of 2oz copper. 2/7 S-E629 Rev.3.0,17-Feb-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJL05N06AL ■ Typical Performance Characteristics Figure 1. Output Characteristics Figure 2. Transfer Characteristics Figure 3. On-Resistance vs. Drain Current and Gate Voltage Figure 4. On-Resistance vs. Junction Temperature Figure 5. Capacitance Characteristics Figure 6. Gate Charge 3/7 S-E629 Rev.3.0,17-Feb-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJL05N06AL Figure 8. Maximum Continuous Drain Current vs Ambient Temperature Figure 7. Safe Operation Area Figure 9. Normalized Maximum Transient Thermal Impedance 4/7 S-E629 Rev.3.0,17-Feb-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJL05N06AL Resistive Switching Test Circuit & Waveforms Diode Recovery Test Circuit & Waveforms Gate Charge Test Circuit & Waveform Unclamped Inductive Switching (UIS) Test Circuit & Waveforms 5/7 S-E629 Rev.3.0,17-Feb-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJL05N06AL ■SOT-23-3L Package information 6/7 S-E629 Rev.3.0,17-Feb-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJL05N06AL Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 7/7 S-E629 Rev.3.0,17-Feb-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
