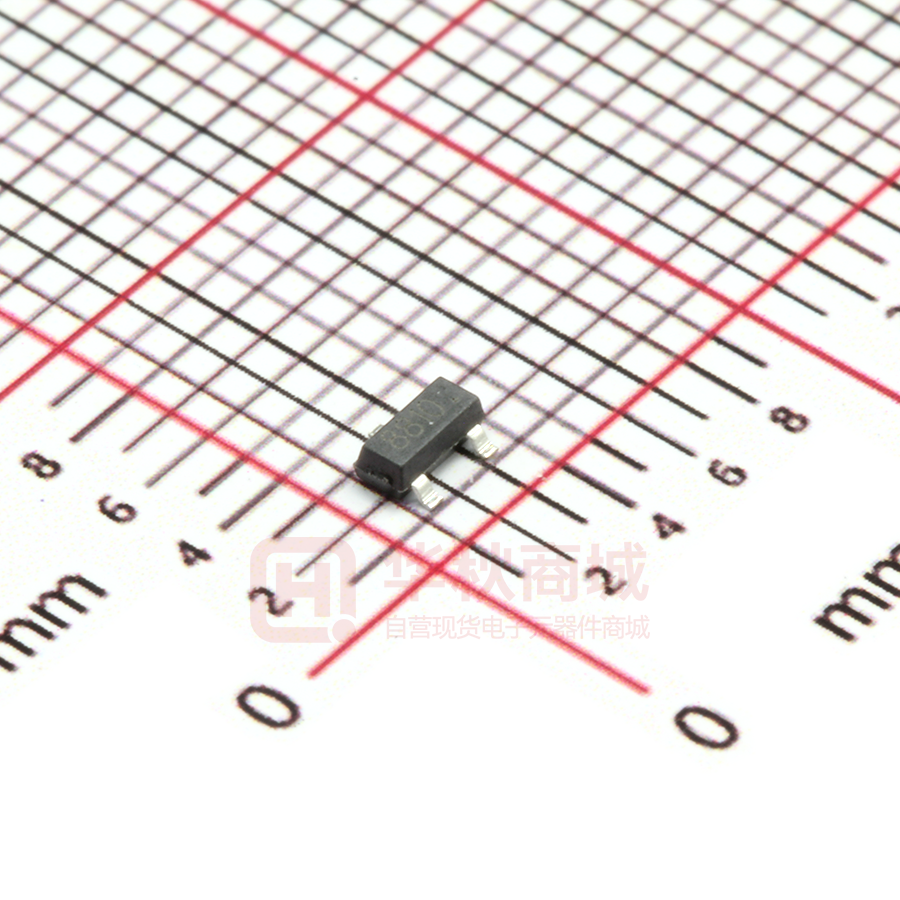

YJL3416A

RoHS COMPLIANT YJL3416A N-Channel Enhancement Mode Field Effect Transistor Product Summary ● VDS 20V ● ID 7.0A ● RDS(ON)( at VGS=4.5V) ＜18 mohm ● RDS(ON)( at VGS=2.5V) ＜22 mohm ● RDS(ON)( at VGS=1.8V) ＜39 mohm ● ESD Protected Up to 3.5KV (HBM) General Description ● Trench Power LV MOSFET technology ● High Power and current handing capability Applications ● PWM application ● Load switch ■ Absolute Maximum Ratings (TA=25℃unless otherwise noted) Parameter Symbol Limit Unit Drain-source Voltage VDS 20 V Gate-source Voltage VGS ±12 V 7.0 TA=25℃ @ Steady State Drain Current ID A TA=70℃ @ Steady State 5.6 Pulsed Drain Current A IDM 30 A Total Power Dissipation @ TA=25℃ PD 1.3 W RθJA 96 ℃/ W TJ ,TSTG -55～+150 ℃ Thermal Resistance Junction-to-Ambient @ Steady State Junction and Storage Temperature Range ■ Ordering Information (Example) PREFERED P/N PACKING CODE Marking MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE YJL3416A F2 8810. 3000 30000 120000 7“ reel 1/6 S-S1917 Rev.2.0,25-Dec-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJL3416A ■ Electrical Characteristics (TJ=25℃ unless otherwise noted) Parameter Symbol Conditions Min Drain-Source Breakdown Voltage BVDSS VGS= 0V, ID=250μA 20 Zero Gate Voltage Drain Current IDSS VDS=20V,VGS=0V,TC=25℃ Typ Max Units Static Parameter Gate-Body Leakage Current Gate Threshold Voltage Static Drain-Source On-Resistance Diode Forward Voltage Maximum Body-Diode Continuous Current IGSS VGS(th) VSD 1 μA VGS= ±12V, VDS=0V 9 ±15 μA VGS= ±10V, VDS=0V 1.5 ±10 μA VGS= ±5V, VDS=0V 50 ±300 nA 0.62 1.0 V VGS= 4.5V, ID=7.0A 13 18 VGS= 2.5V, ID=4.0A 17 22 VGS= 1.8V, ID=3.0A 27 39 VDS= VGS, ID=250μA RDS(ON) V 0.45 IS=7.0A,VGS=0V IS mΩ 1.2 V 7.0 A Dynamic Parameters Input Capacitance Ciss 980 Output Capacitance Coss Reverse Transfer Capacitance Crss 120 Total Gate Charge Qg 8.1 Gate Source Charge Qgs Gate Drain Charge Qgd 3 Turn-on Delay Time tD(on) 1.2 Turn-on Rise Time tr VDS=10V,VGS=0V,f=1MHZ 225 pF Switching Parameters VGS=4.5V,VDS=10V,ID=7.0A 2.4 2.4 VGS=4.5V,VDD=10V, RL=1.5Ω, RGEN=3Ω Turn-off Delay Time Turn-off Fall Time A. B. nC ns tD(off) 22 tf 7 Pulse Test: Pulse Width≤300us,Duty cycle ≤2%. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch. 2/6 S-S1917 Rev.2.0,25-Dec-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJL3416A ■ Typical Performance Characteristics Figure1. Output Characteristics Figure2. Transfer Characteristics Figure3. Capacitance Characteristics Figure4. Gate Charge Figure5. Drain-Source on Resistance Figure6. Drain-Source on Resistance 3/6 S-S1917 Rev.2.0,25-Dec-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJL3416A Figure7. Safe Operation Area Figure8. Switching wave 4/6 S-S1917 Rev.2.0,25-Dec-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJL3416A ■SOT-23 Package information ■SOT-23 Suggested Pad Layout 5/6 S-S1917 Rev.2.0,25-Dec-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com YJL3416A Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 6/6 S-S1917 Rev.2.0,25-Dec-18 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
