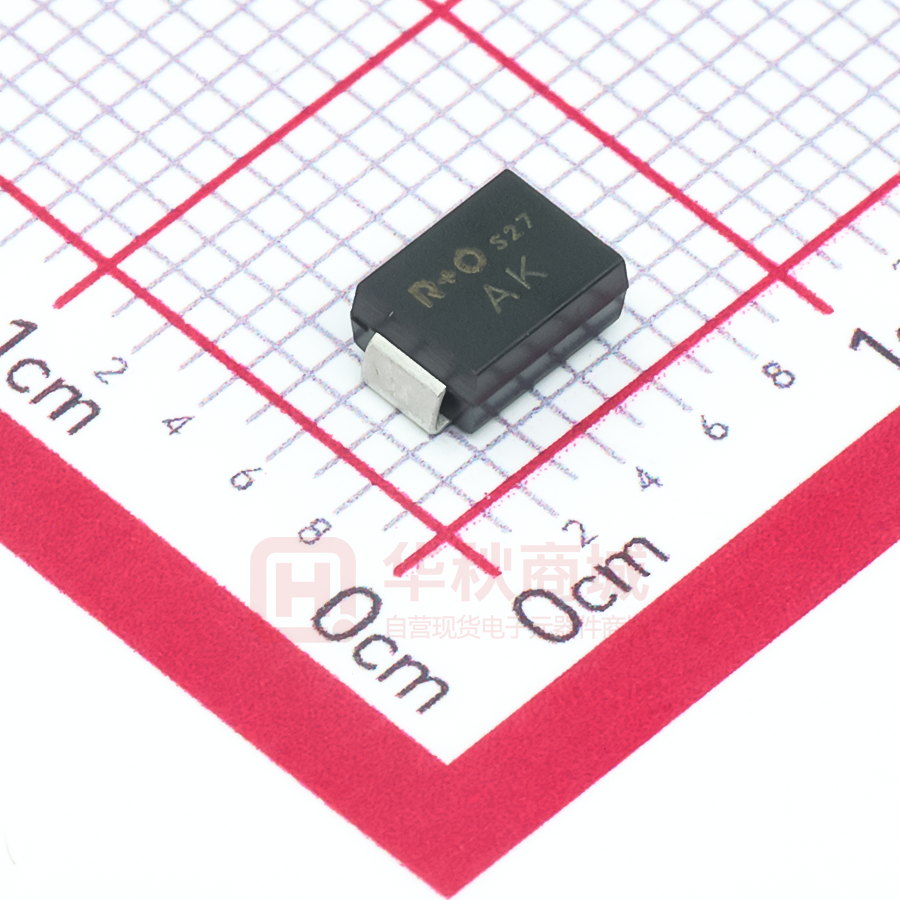

SMBJ6.5CA

� �D� 宏迦橙 SMBJ SERIES 600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS www.ichjc.com Description DO-214AA(SMB) The SMBJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events Features •For surface mounted applications in order to optimize board space •Low leakage •Glass passivated junction •Low inductance •Excellent clamping capability •600W peak pulse power capability at 10/1000μs waveform •Fast response time •Typical IR less than 5μA above 12V •High Temperature soldering: 260℃ /40 seconds at terminals •Typical maximum temperature coefficient ΔVBR = 0.1% ×VBR@25℃ ×ΔT •Plastic package has Underwriters Laboratory Flammability 94V-0 •Matte tin lead–free Plated •Halogen free and RoHS compliant •Typical failure mode is short from over-specified voltage or current •Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c •IEC 61000-4-2 ESD 30KV(Air),30KV(contact) Applications TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications Maximum Ratings (Ta=25℃ Unless otherwise specified) PARAMETER SYMBOL VALUE SYMBOL Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note 1), (Note 2) PPPM 600 W Power Dissipation on Infinite Heat Sink at TL=75° C PM(AV) 5.0 W 3.5/5.0 V Peak Pulse Current with a 10/1000μs waveform.(Note1,Fig.3) Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) Maximum Instantaneous Forward Voltage at 25A for Unidirectional Only(Note 4) Operating junction and Storage Temperature Range Typical thermal resistance junction to lead See Next Table IFSM 100 VF TJ , TSTG -55 to +150 RθJ-A 100 RθJ-L Typical thermal resistance junction to ambient Note : (1) Non-repetitive current pulse, per Fig. 3 and derated above Ta = 25℃ per Fig. 2. (2) Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal. (3) 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum. (4) VF
