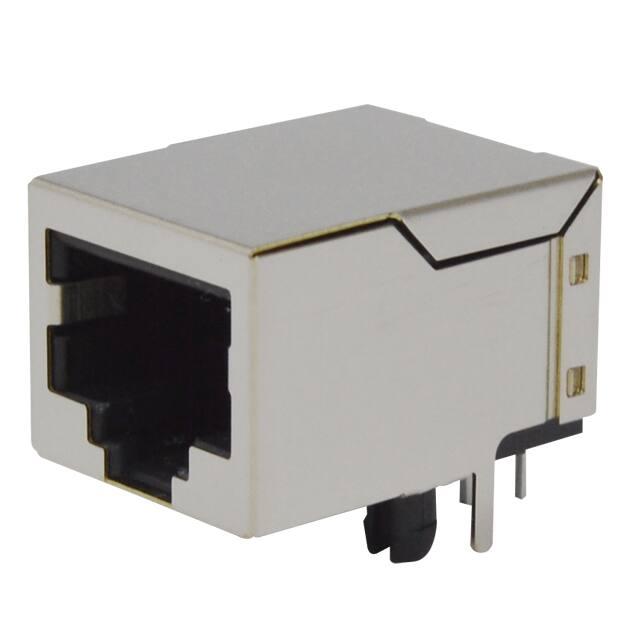

GLX-S-1010M

2D Drawing IGES STEP 3D PDF Solder Profile CofC RoHS Compliant CofC REACH Compliant UL Plastic File Certificate of Origin Check Stock Request a Sample Send Us An Email Generated Part Number GLX-N-44M Part Number Builder LR78160 MODULAR JACKS AND PLUGS: GLX Series Right Angle Modular Jack Product Features 0.570" Height Snap-In Board Retention Tabs Available in 4, 6, 8 and 10 Position Housings CSA/NRTL Certified File No. LR78160 UL File No. E134345 Performance Specifications Materials and Finish Housing Material PBT Thermoplastic, UL 94V-0 Rated Contact Material Phosphor Bronze Electrical Characteristics Insulation Resistance 500 Megohms Min. Dielectric Withstanding Voltage 1000V RMS, 60Hz Contact Resistance 20 milliohms Max. Current Rating 1.5A Voltage Rating 125V DC GLX N 44 M Series Shield Option Positions & Contacts Body Options Other Option Series GLX - Right Angle Modular Jack Shield Options N - Non-Shielded without Panel Stops S - Shielded without Panel Stops (8 and 10 Position only) Number of Positions / Contacts 44 - 4 Positions / 4 Contacts (Only N Option ) 62 - 6 Positions / 2 Contacts 64 - 6 Positions / 4 Contacts 66 - 6 Positions / 6 Contacts 88 - 8 Positions / 8 Contacts 1010 - 10 Positions / 10 Contacts Body Option M - Short Body Other Options Plating Option Blank - Gold Flash 50 - 50µ" Gold Plating Color Option Blank - Gray BLK - Black Contact Kycon for Other Options GLX Series Dimensions in mm GLX-N-44M Phone: +1.408.494.0330 l Fax: +1.408.494.0325 l WWW.KYCON.COM l 0621
