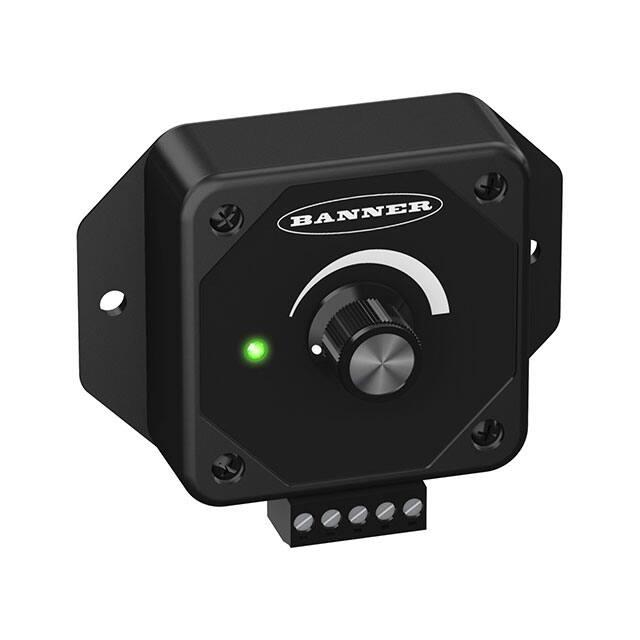

LC65P1T

LC65 LED Dimmer Module Datasheet Pulse Width Modulation (PWM) Intensity Control • • • • • 3-wire dimmers are compatible with PWM models of many Banner LED lights 2-wire dimmers are compatible with standard WLS15 models and select indicators Intensity control (0 to 100%) on many lights at the same time Compact and easy to install High-frequency PWM delivers flicker-free lighting Models Model Pulse Width Modulation Type Connector LC65P1T 3-wire LC65P2T 2-wire LC65P1Q5 3-wire (1) 150 mm (6 in) PVC cable with a 5-pin M12 female, stainless steel quick-disconnect connector LC65P2Q5 2-wire (1) 150 mm (6 in) PVC cable with a 4-pin M12 male, stainless steel quick-disconnect connector Terminal block Wiring Diagrams Quick-Disconnect Models Male - Input 2 3 Pin Wire Color 1 Brown 3 Blue DC common 4 Black Not used 2 White Not used 1 4 Connection 12 V DC to 30 V DC Quick-Disconnect Models Female - Output 1 4 2 3 5 Pin Wire Color 1 Brown 3 Blue 4 2 5 Original Document 177086 Rev. E Connection: 2-Wire Connection: 3-Wire Pulse width modulation (PWM) output 12 V DC to 30 V DC DC common DC common Black Not used Pulse width modulation (PWM) output White Not used Not used No connection Not used Not used 6 April 2022 177086 LC65 LED Dimmer Module 2-Wire Models LED Light(s) Powered Through the Controller IN Power supply 12–30 V dc + OUT V+ V− V+ V− 1 3 1 3 P LED Light − Common +V dc 3-Wire Models LED Light(s) Powered Through the Controller OUT IN Power supply 12–30 V dc + V+ V− V+ V− 1 3 1 3 − LED Light(s) Powered Externally OUT IN P 4 LED Light PWM Input Common Power supply 12–30 V dc + V+ V− V+ V− 1 3 1 3 P 4 − LED Light +V dc PWM Input Power supply 12–30 V dc + − +V dc Common LED Light PWM Input Power supply 12–30 V dc + − +V dc Common LED Light PWM Input Power supply 12–30 V dc + − +V dc Common Specifications Supply Voltage 12 V DC to 30 V DC Construction ABS housing Supply Current 30 mA Indicators Power LED: Green Maximum Pass-Through Current 4A Operating Conditions –20 °C to +60 °C (–4 °F to +140 °F) 95% at +50 °C maximum relative humidity (non-condensing) Maximum PWM Output Current 3-Wire Models: 150 mA 2-Wire Models: 4 A Switching Frequency 300 Hz Environmental Rating IP20 Certifications Dimming Range 0% to 100% Adjustments 270° potentiometer 2 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 177086 Rev. E LC65 LED Dimmer Module Dimensions Figure 1. Terminal Block Models 76.2 mm [3”] 74 mm [2.91”] 6.4 mm [0.25”] 4.8 mm dia x2 [0.19”] 25.6 mm [1.01”] 40.8 mm [1.61”] 88.9 mm [3.5”] 15.2 mm [0.6”] Figure 2. Cabled Models All measurements are listed in millimeters [inches], unless noted otherwise. P/N 177086 Rev. E www.bannerengineering.com - Tel: + 1 888 373 6767 3 LC65 LED Dimmer Module Banner Engineering Corp. Limited Warranty Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of shipment. Banner Engineering Corp. will repair or replace, free of charge, any product of its manufacture which, at the time it is returned to the factory, is found to have been defective during the warranty period. This warranty does not cover damage or liability for misuse, abuse, or the improper application or installation of the Banner product. THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE), AND WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE OF DEALING OR TRADE USAGE. This Warranty is exclusive and limited to repair or, at the discretion of Banner Engineering Corp., replacement. IN NO EVENT SHALL BANNER ENGINEERING CORP. BE LIABLE TO BUYER OR ANY OTHER PERSON OR ENTITY FOR ANY EXTRA COSTS, EXPENSES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES RESULTING FROM ANY PRODUCT DEFECT OR FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER ARISING IN CONTRACT OR WARRANTY, STATUTE, TORT, STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE. Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any obligations or liabilities relating to any product previously manufactured by Banner Engineering Corp. Any misuse, abuse, or improper application or installation of this product or use of the product for personal protection applications when the product is identified as not intended for such purposes will void the product warranty. Any modifications to this product without prior express approval by Banner Engineering Corp will void the product warranties. All specifications published in this document are subject to change; Banner reserves the right to modify product specifications or update documentation at any time. Specifications and product information in English supersede that which is provided in any other language. For the most recent version of any documentation, refer to: www.bannerengineering.com. For patent information, see www.bannerengineering.com/patents. © Banner Engineering Corp. All rights reserved
