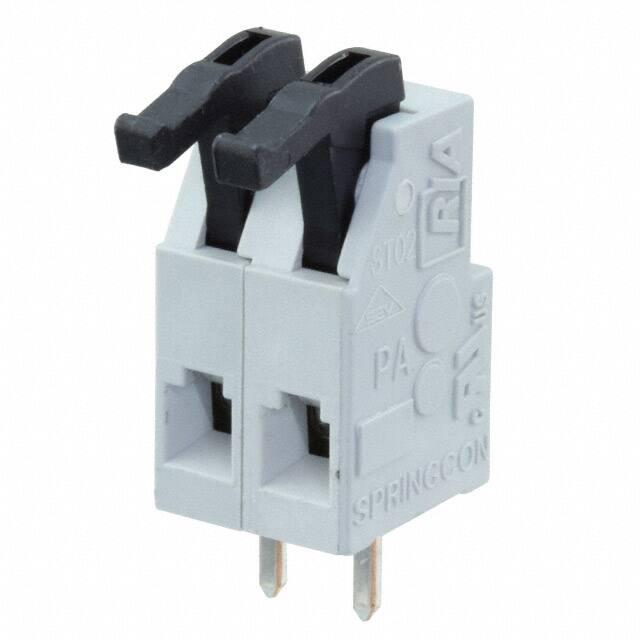

Page 1/5 Data sheet P/N AST025xx xx=number of poles ST025xxHDNC AST025 2023/07/03 Version: V Illustrations Dimensional drawing Drill pattern See enlarged drawings at the end of document Product specification • spring clamp terminal block, solderable • centerline 5.00 mm, direction of connection 90° • fittable without loss of poles • color gray • eccentric lever Data sheet Page 2/5 ST025xxHDNC AST025 P/N AST025xx xx=number of poles 2023/07/03 Version: V Technical Data General Data Solder pin length 5 mm min. number of poles 2 max. number of poles 24 Insulating material class CTI 400 clearance/creepage dist. 4 mm Protection category IP20 Min. insul. strip length 6 mm Rated current 12 A Overvoltage category III III II Pollution degree 3 2 2 Rated voltage 32 V 200 V 200 V Rated test voltage 1.5 kV 1.5 kV 1.5 kV Terminal data rat.wiring solid AWGmax 0.2 mm² - 2 mm² / AWG 28 - AWG 14 rat.wiring strand.AWGmax 0.2 mm² - 2 mm² / AWG 28 - AWG 14 Approvals V / A / AWG approval UL - File No. 1 mm² 300 / 13 / 28 - 14 E121004 250 V / 13.5 A / T60 Material insulating material PA46 flammability class V0 spring material Spring steel contact material CuSn Contact surface Ni + Sn Glow-Wire Flammability GWFI - Glow-Wire Flammability GWIT - Climatic Data upper limit temperature 105 °C lower limit temperature -40 °C Data sheet Page 3/5 ST025xxHDNC AST025 P/N AST025xx xx=number of poles 2023/07/03 Version: V Technical Data general Tolerance ISO 2768 -mH Solderability Acc. to JEDEC JESD22-B102E 245°C/5s Data sheet ST025xxHDNC AST025 Page 4/5 P/N AST025xx xx=number of poles 2023/07/03 Version: V Illustrations Dimensional drawing L=(pole size - 1) x centerline + 5 mm [0.197] Data sheet ST025xxHDNC AST025 Page 5/5 P/N AST025xx xx=number of poles 2023/07/03 Version: V Illustrations Drill pattern Powered by TCPDF (www.tcpdf.org)
