C3D10065A

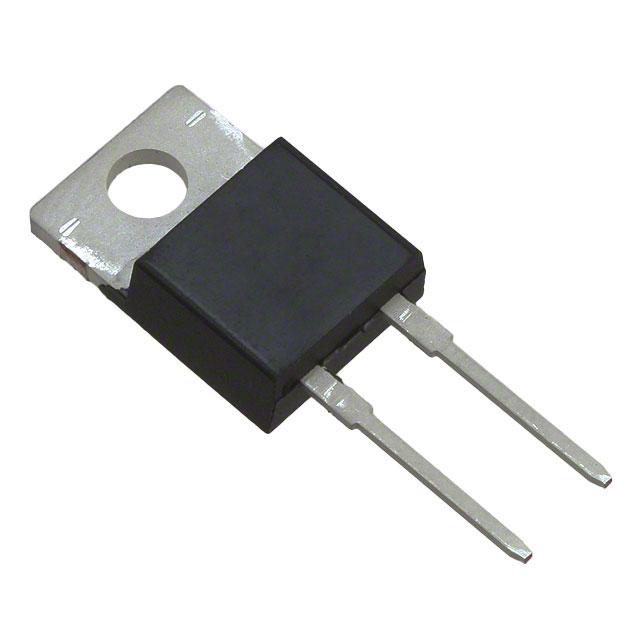

C3D10065A 3rd Generation 650 V, 10 A Silicon Carbide Schottky Diode Description With the performance advantages of a Silicon Carbide (SiC) Schottky Barrier diode, power electronics systems can expect to meet higher efficiency standards than Si-based solutions, while also reaching higher frequencies and power densities. SiC diodes can be easily paralleled to meet various application demands, without concern of thermal runaway. In combination with the reduced cooling requirements and improved thermal performance of SiC products, SiC diodes are able to provide lower overall system costs in a variety of diverse applications. Package Types: TO-220-2 Marking: C3D10065A Features Applications • • • • • • • Low Forward Voltage (VF) Drop with Positive Temperature Coefficient Zero Reverse Recovery Current / Forward Recovery Voltage Temperature-Independent Switching Behavior Industrial Switched Mode Power Supplies Uninterruptible & AUX Power Supplies Boost for PFC & DC-DC Stages Solar Inverters Maximum Ratings (TC = 25°C Unless Otherwise Specified) Parameter Symbol Value Repetitive Peak Reverse Voltage VRRM 650 DC Blocking Voltage VDC 650 Continuous Forward Current IF Repetitive Peak Forward Surge Current IFRM Non-Repetitive Forward Surge Current IFSM Non-Repetitive Peak Forward Surge Current IF,Max Power Dissipation Ptot Rev. 6, March 2023 Unit Test Conditions V 30 TJ = 25 °C 14.5 TJ = 135 °C 10 TJ = 153 °C 46 TC = 25 °C, tp = 10 ms, Half Sine Wave 31 A TC = 25 °C, tp = 10 ms, Half Sine Wave 71 TC = 110 °C,tp = 10 ms, Half Sine Wave 860 TC = 25 °C, tp = 10 µs, Pulse 680 TC = 110°C, tp = 10 µs, Pulse 136.5 W Fig. 3 TC = 110 °C, tp = 10 ms, Half Sine Wave 90 59 Notes TJ = 25 °C TJ = 110 °C Fig. 8 Fig. 4 4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300 | wolfspeed.com/power © 2023 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc. C3D10065A 2 Electrical Characteristics Parameter Symbol Forward Voltage VF Reverse Current IR Total Capacitive Charge QC Typ. Max. 1.5 1.8 2.0 2.4 12 60 24 220 Unit V µA 24 nC 460.5 Total Capacitance C EC Notes IF = 10 A, Tj = 25 °C Fig. 1 IF = 10 A, Tj = 175 °C VR = 650 V, Tj = 25 °C Fig. 2 VR = 650 V, Tj = 175 °C VR = 400 V, Tj = 25 °C Fig. 5 VR = 0 V, Tj = 25 °C, f = 1 MHz 44 pF 40 Capacitance Stored Energy Test Conditions VR = 200 V, Tj = 25 °C, f = 1 MHz Fig. 6 VR = 400 V, Tj = 25 °C, f = 1 MHz µJ 3.6 VR = 400 V Fig. 7 Notes: SiC Schottky Diodes are majority carrier devices, so there is no reverse recovery charge. Thermal & Mechanical Characteristics Parameter Symbol Value Unit Rθ, JC (TYP) 1.1 °C / W Junction Temperature Tj -55 to +175 Case & Storage Temperature Tc -55 to +175 TO-220 Mounting Torque - Thermal Resistance, Junction to Case (Typical) Notes °C 1 Nm M3 Screw 8.8 lbf-in 6-32 Screw Electrostatic Discharge (ESD) Classifications Parameter Symbol Notes Human Body Model HBM Class 3B (≥ 8000 V) Charge Device Model CDM Class C3 (≥ 1000 V) Rev. 6, March 2023 4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300 | wolfspeed.com/power © 2023 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc. C3D10065A 3 Typical Performance Figure 1 Rev. 6, March 2023 Figure 2 Forward Characteristics Reverse Characteristics Figure 3 Figure 4 Current Derating Power Derating 4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300 | wolfspeed.com/power © 2023 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc. C3D10065A 4 Figure 5 Total Capacitance vs. Reverse Voltage Figure 6 Capacitace vs. Reverse Voltage Figure 7 Figure 8 Capacitance Stored Energy Non-Repetitive Peak Forward Surge Current versus Pulse Duration (sinusoidal waveform) Rev. 6, March 2023 4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300 | wolfspeed.com/power © 2023 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc. C3D10065A 5 Figure 9 Transient Thermal Impedance Diode Model Rev. 6, March 2023 4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300 | wolfspeed.com/power © 2023 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc. C3D10065A 6 Package Dimensions & Pin-Out Package: TO-220-2 4 3 2 P A F E1 E2 Q F M H2 H1 B AM D1 D 0.35 S A (1.50 DP 0.20) G 3 T 2 z 1 C E H E U E B C F 1 B V W M1 L1 N 0.35 M B AM X D D Y SYMBOL A B C D D1 E E1 E2 F G H H1 H2 L1 M1 N P Q S T U V W W1 X Y Z C B MIN (mm) MAX (mm) 9.677 10.414 5.969 6.477 2.540 3.048 5.664 8.560 12.450 REF 14.986 15.621 8.120 REF 6.100 REF 3.632 3.886 28.067 29.134 12.700 13.970 6.223 REF 7.040 REF 0.635 0.914 1.143 1.397 4.953 5.207 4.191 4.699 1.219 1.372 6 3 3 6 3 6 2.388 2.794 0.356 0.635 0.356 0.520 5.5 3 9.779 10.414 3.302 3.810 1 CATHODE 2 ANODE 3 CATHODE NOTE 1. ALL METAL SURFACES ARE TIN PLATED (MATTE), EXCEPT AREA OF CUT. 2. DIMENSIONING & TOLERANCING CONFORM TO ASME Y14.5M-1994. 3. ALL DIMENSIONS ARE LISTED IN MILLIMETERS. ANGLES ARE IN DEGREES. 4. PACKAGE BURR FLASH SIZE (0.5 mm) IS NOT INCLUDED IN THE DIMENSIONS TITLE: A 4 Rev. 6, March 2023 3 B PACKAGE OUTLINE DRAWING: TO 220-2L REVISION NO. Date: 02/19/22 C SCALE:1:1 2 01 A A4 SHEET 1 OF 1 1 4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300 | wolfspeed.com/power © 2023 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc. C3D10065A 7 Recommended Solder Pad Layout Primary dimensions shown in mm. Product Ordering Information Rev. 6, March 2023 Order Number Packing Type C3D10065A Tube 4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300 | wolfspeed.com/power © 2023 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc. C3D10065A 8 Revision History Document Version Date of Release Description of Changes 1 December-2015 Initial Release 6 March-2023 Update Package Drawing Update Landing Pad Rev. 6, March 2023 4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300 | wolfspeed.com/power © 2023 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc. C3D10065A 9 Notes & Disclaimer This document and the information contained herein are subject to change without notice. Any such change shall be evidenced by the publication of an updated version of this document by Wolfspeed. No communication from any employee or agent of Wolfspeed or any third party shall effect an amendment or modification of this document. No responsibility is assumed by Wolfspeed for any infringement of patents or other rights of third parties which may result from use of the information contained herein. No license is granted by implication or otherwise under any patent or patent rights of Wolfspeed. Notwithstanding any application-specific information, guidance, assistance, or support that Wolfspeed may provide, the buyer of this product is solely responsible for determining the suitability of this product for the buyer’s purposes, including without limitation for use in the applications identified in the next bullet point, and for the compliance of the buyers’ products, including those that incorporate this product, with all applicable legal, regulatory, and safety-related requirements. This product has not been designed or tested for use in, and is not intended for use in, applications in which failure of the product would reasonably be expected to cause death, personal injury, or property damage, including but not limited to equipment implanted into the human body, life-support machines, cardiac defibrillators, and similar emergency medical equipment, aircraft navigation, communication, and control systems, aircraft power and propulsion systems, air traffic control systems, and equipment used in the planning, construction, maintenance, or operation of nuclear facilities. RoHS Compliance The levels of RoHS restricted materials in this product are below the maximum concentration values (also referred to as the threshold limits) permitted for such substances, or are used in an exempted application, in accordance with EU Directive 2011/65/EC (RoHS2), as implemented January 2, 2013. RoHS Declarations for this product can be obtained from your Wolfspeed representative or from the Product Documentation sections of www.wolfspeed. com. REACh Compliance REACh substances of high concern (SVHCs) information is available for this product. Since the European Chemical Agency (ECHA) has published notice of their intent to frequently revise the SVHC listing for the foreseeable future, please contact your Wolfspeed representative to ensure you get the most up-to-date REACh SVHC Declaration. REACh banned substance information (REACh Article 67) is also available upon request. Contact info: 4600 Silicon Drive Durham, NC 27703 USA Tel: +1.919.313.5300 www.wolfspeed.com/power © 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc. PATENT: https://www.wolfspeed.com/legal/patents The information in this document is subject to change without notice. Rev. 6, March 2023 4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300 | wolfspeed.com/power © 2023 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
